Product Description
Part# | PWB80A40 |
Category | Discrete Semiconductor Products |
Thyristors - SCRs - Modules | |
Mfr | / |
Series | - |
Package | Tray |
Product Status | Active |
Structure | Bridge, 3-Phase - All SCRs |
Number of SCRs, Diodes | 3 SCRs |
Voltage - Off State | 400 V |
Current - On State (It (AV)) (Max) | 80 A |
Current - On State (It (RMS)) (Max) | 125 A |
Voltage - Gate Trigger (Vgt) (Max) | 2 V |
Current - Gate Trigger (Igt) (Max) | 150 mA |
Current - Non Rep. Surge 50, 60Hz (Itsm) | 2280A, 2500A |
Current - Hold (Ih) (Max) | 100 mA |
Operating Temperature | -30°C ~ 150°C (TJ) |
Mounting Type | Chassis Mount |
Package / Case | Module |

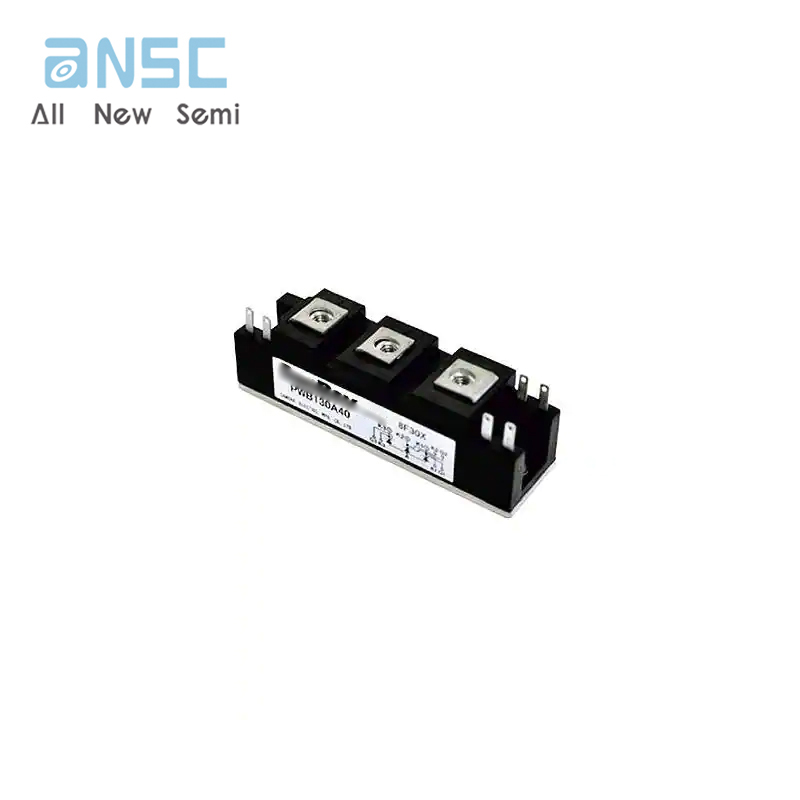

Actual image of the product
