Product Description
Type | Description |
|---|---|
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | 6300TD |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 24VDC |
Size / Dimension | Round - 172mm Dia |
Width | 50.80mm |
Air Flow | 418.0 CFM (11.70m³/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | PWM Control, Speed Sensor (Tach) |
Noise | 69.0dB(A) |
Power (Watts) | 67 W |
RPM | 7000 RPM |
Termination | 4 Wire Leads |
Ingress Protection | - |
Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
Approval Agency | - |
Weight | 2 lbs (907.2 g) |
Current Rating (Amps) | - |
Voltage Range | 16 ~ 36VDC |
Material - Frame | Aluminum |
Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
Lifetime @ Temp. | 62500 Hrs @ 40°C |
Base Product Number | 6314 |

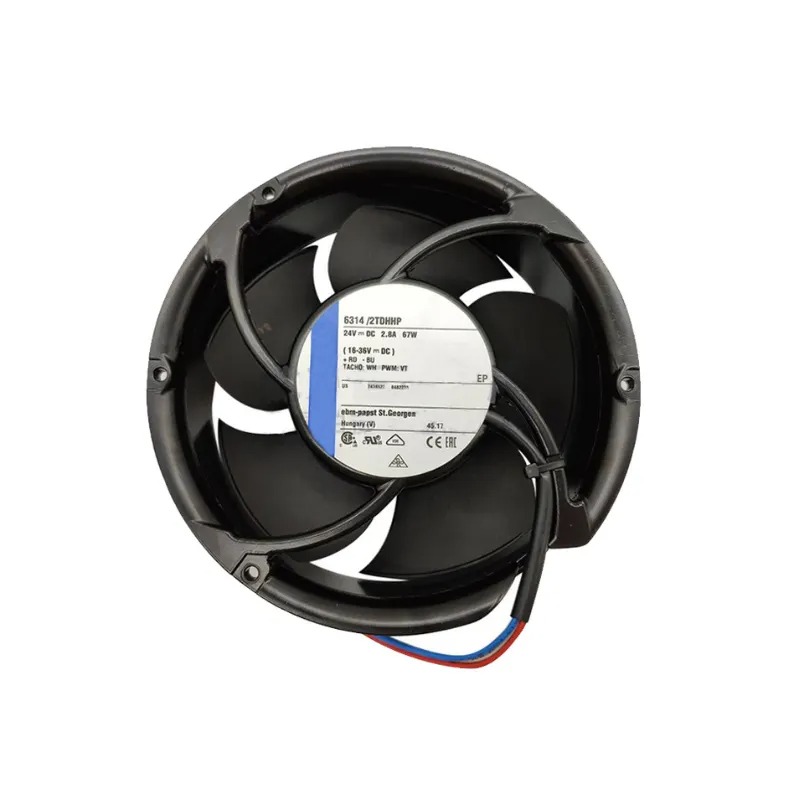

Actual image of the product
