Product Description
Type | Description |
|---|---|
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | 620 |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 24VDC |
Size / Dimension | Square - 60mm L x 60mm H |
Width | 25.40mm |
Air Flow | 33.0 CFM (0.924m³/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | - |
Noise | 43.0dB(A) |
Power (Watts) | 3.6 W |
RPM | 8200 RPM |
Termination | 2 Wire Leads |
Ingress Protection | - |
Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
Approval Agency | CE, CSA, UL, VDE |
Weight | 0.187 lb (84.82 g) |
Current Rating (Amps) | - |
Voltage Range | 18 ~ 28VDC |
Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
Lifetime @ Temp. | 65000 Hrs @ 40°C |
Base Product Number | 624H |

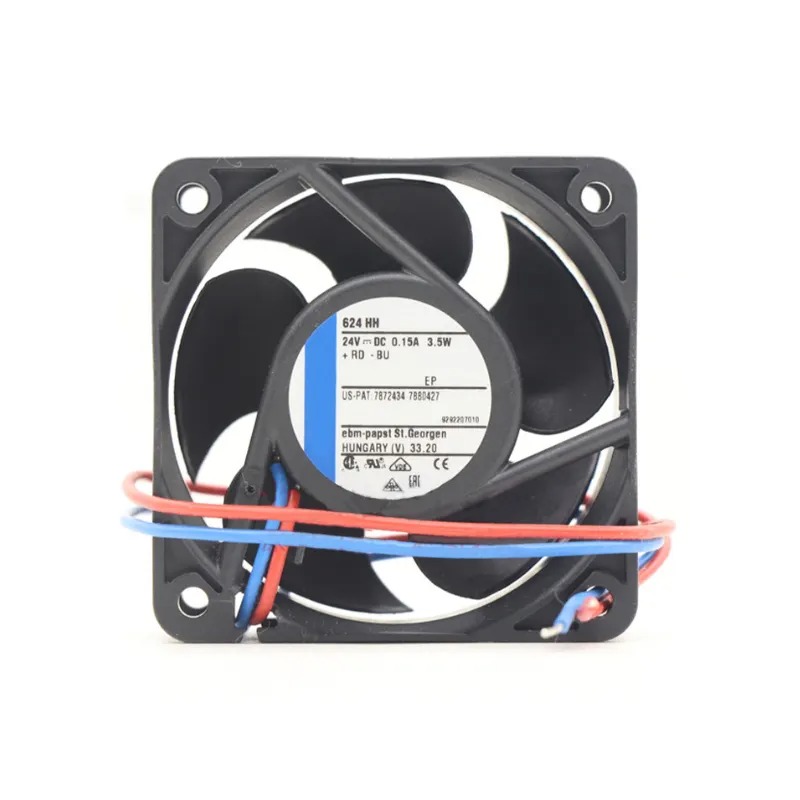

Actual image of the product
