Product Description
Type | Description |
|---|---|
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | W2E208 |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 230VAC |
Size / Dimension | Round - 260mm Dia |
Width | 80.00mm |
Air Flow | 544.0 CFM (15.23m³/min) |
Static Pressure | 0.662 in H2O (165.0 Pa) |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | Thermal Overload Protector (TOP) |
Noise | 70.0dB(A) |
Power (Watts) | 87.0W |
RPM | 3100 RPM |
Termination | 2 Terminals |
Ingress Protection | IP44 |
Operating Temperature | 32°F ~ 162°F (0°C ~ 72°C) |
Approval Agency | CCC, CE, GOST, VDE |
Weight | - |
Current Rating (Amps) | 0.390A |
Voltage Range | - |
Material - Frame | Aluminum |
Material - Blade | Polyamide (PA), Nylon |
Lifetime @ Temp. | - |
Base Product Number | W2E208 |

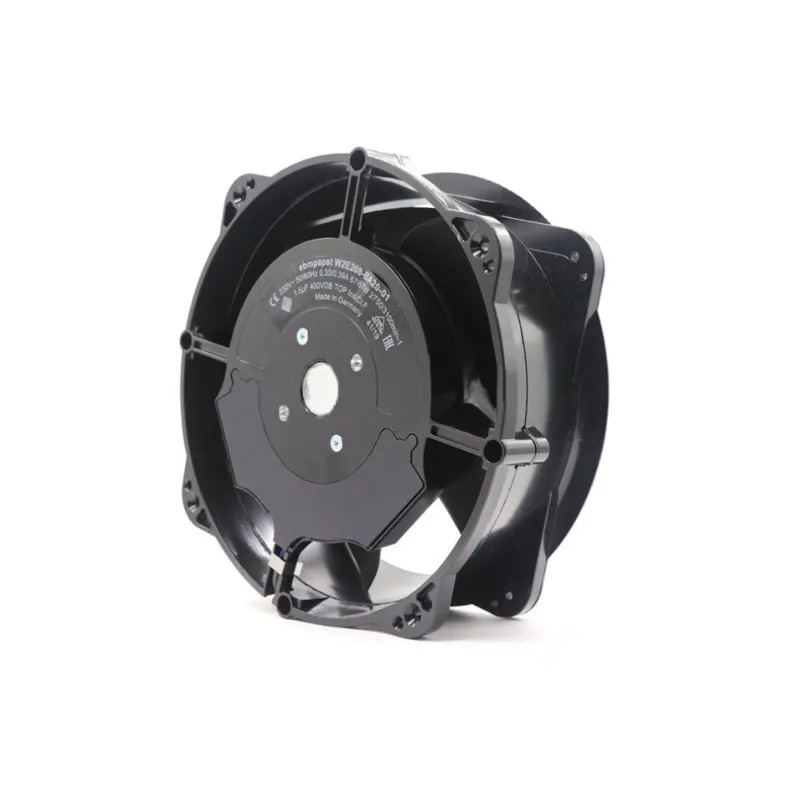

Actual image of the product
