Product Description
Type | Description |
|---|---|
PART# | R1G220-AB73-52 |
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | R1G220 |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 48VDC |
Size / Dimension | Round - 220mm Dia |
Width | 71.00mm |
Air Flow | 597.4 CFM (16.73m³/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Motorized Impellers |
Features | PWM Control, Speed Sensor (Tach) |
Noise | 73.0dB(A) |
Power (Watts) | 100 W |
RPM | 3100 RPM |
Termination | 4 Wire Leads |
Ingress Protection | - |
Operating Temperature | -13 ~ 140°F (-25 ~ 60°C) |
Approval Agency | CCC, CSA, UL |
Weight | 3.1 lbs (1.4 kg) |
Current Rating (Amps) | 2.4A |
Voltage Range | 36 ~ 57VDC |
Material - Frame | - |
Material - Blade | Polyamide (PA), Nylon |
Lifetime @ Temp. | - |
Base Product Number | R1G220 |

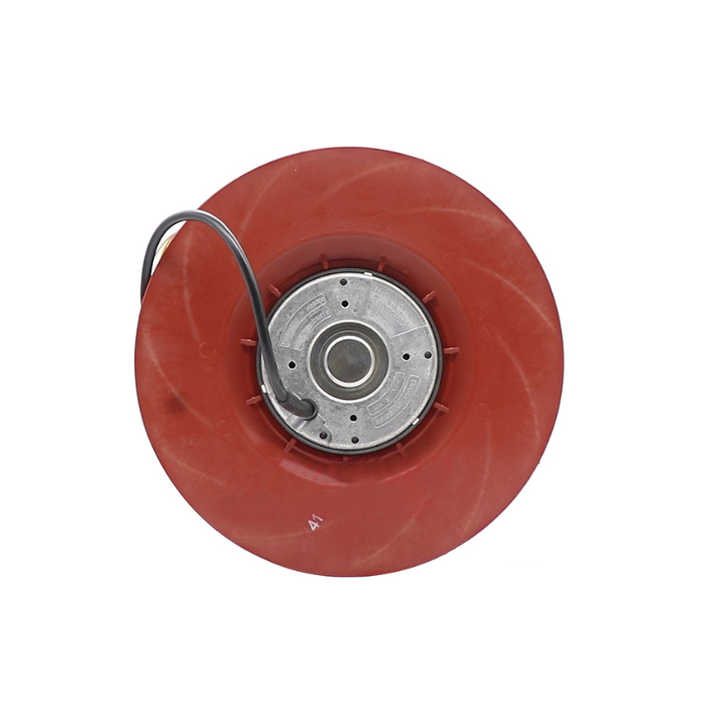

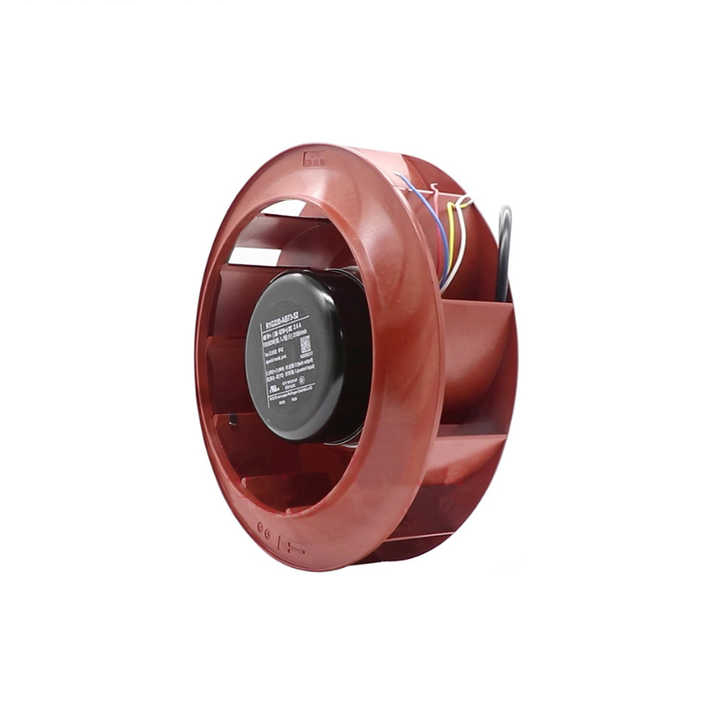

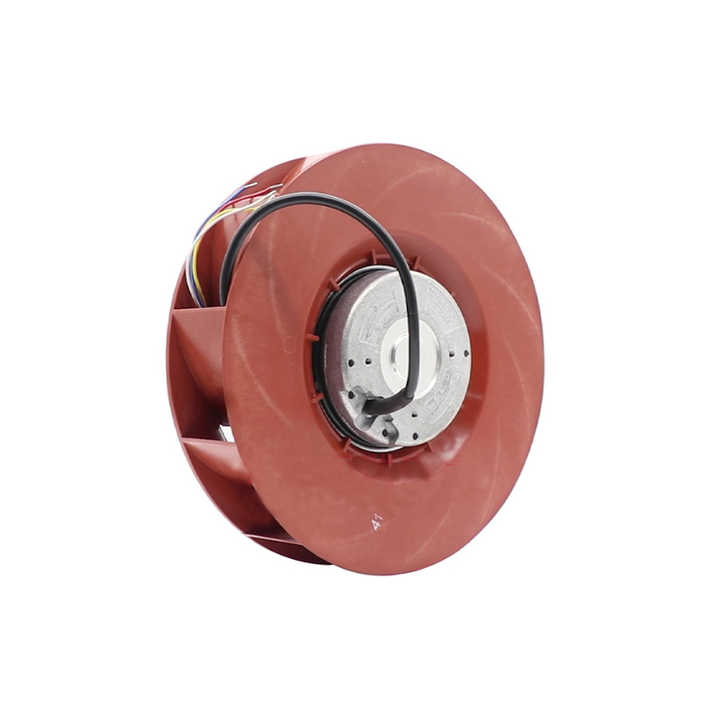

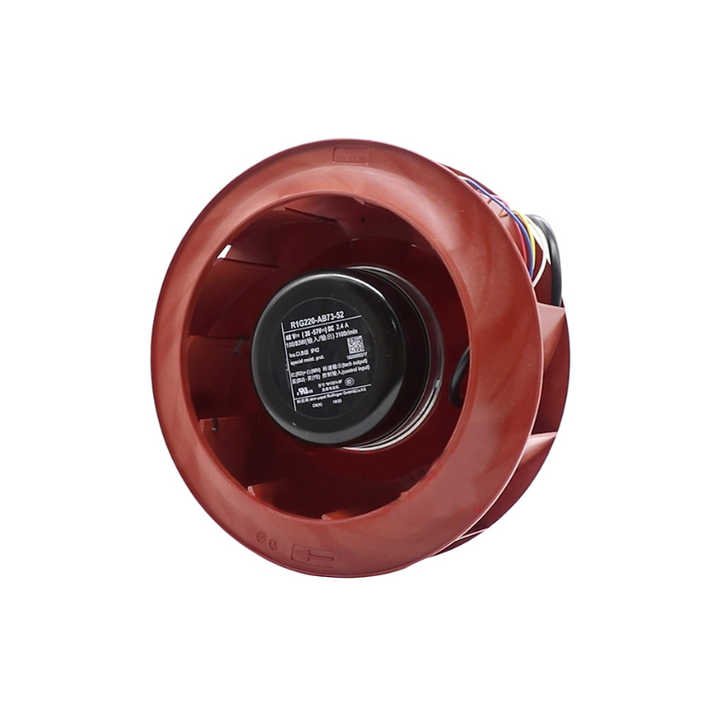

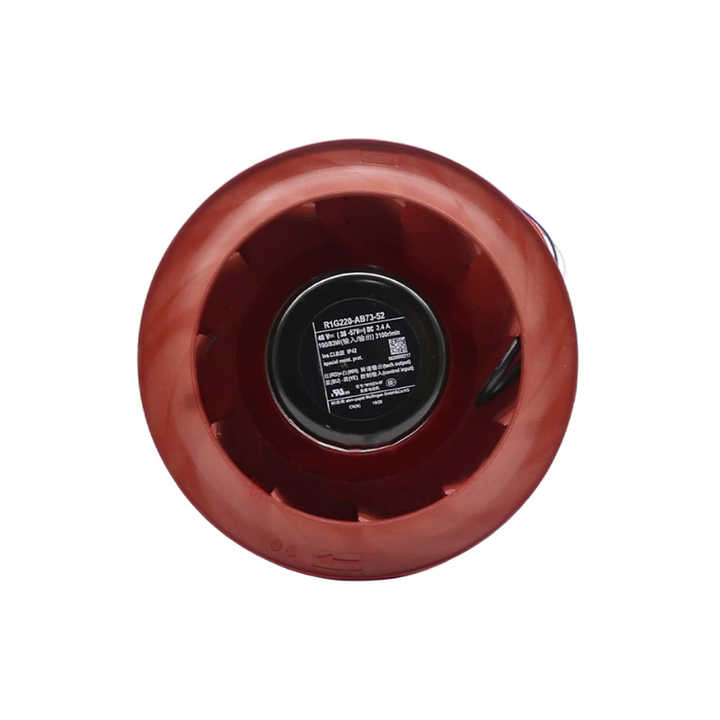

Actual image of the product
