Product Description
Type | Description |
|---|---|
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | RG90 |
Packaging | Box |
Part Status | Active |
Voltage - Rated | 230VAC |
Size / Dimension | Square - 135mm L x 135mm H |
Width | 38.00mm |
Air Flow | 31.8 CFM (0.890m³/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Blower, Flatpak |
Features | - |
Noise | 60.0dB(A) |
Power (Watts) | 22.00W |
RPM | - |
Termination | 2 Wire Leads |
Ingress Protection | - |
Operating Temperature | - |
Approval Agency | CE, CSA, UL, VDE |
Weight | 1.3 lbs (589.7 g) |
Current Rating (Amps) | - |
Voltage Range | - |
Material - Frame | Plastic, Glass Filled |
Material - Blade | Plastic, Fiberglass Reinforced |
Lifetime @ Temp. | - |
Base Product Number | RG90 |

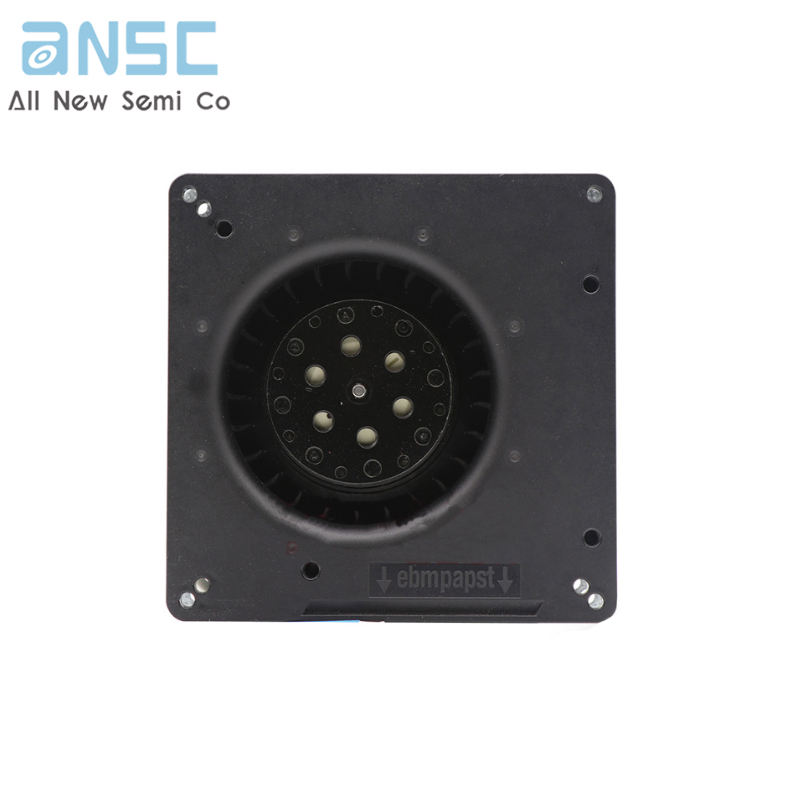

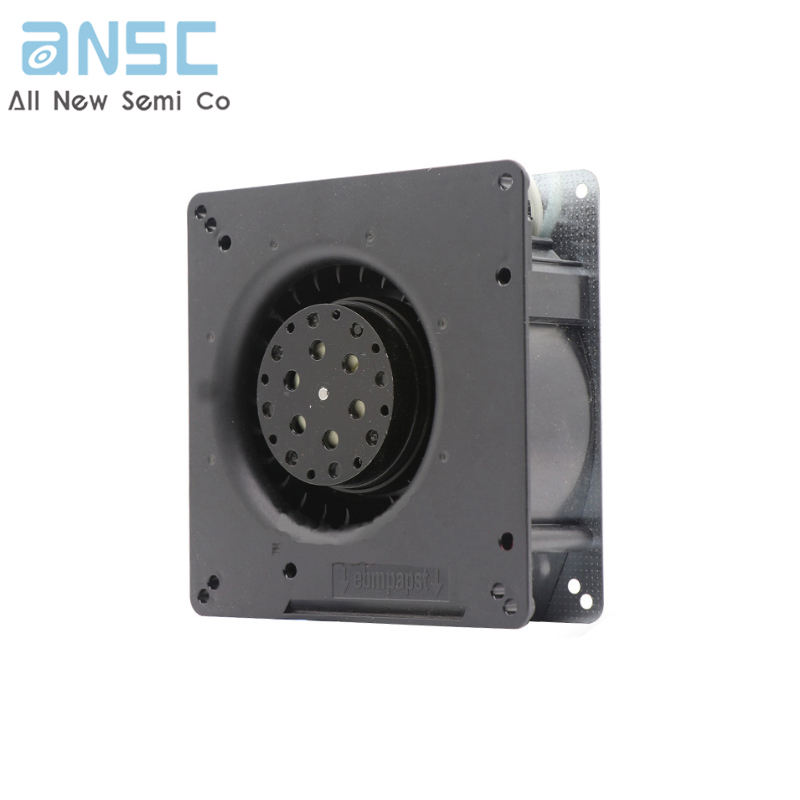

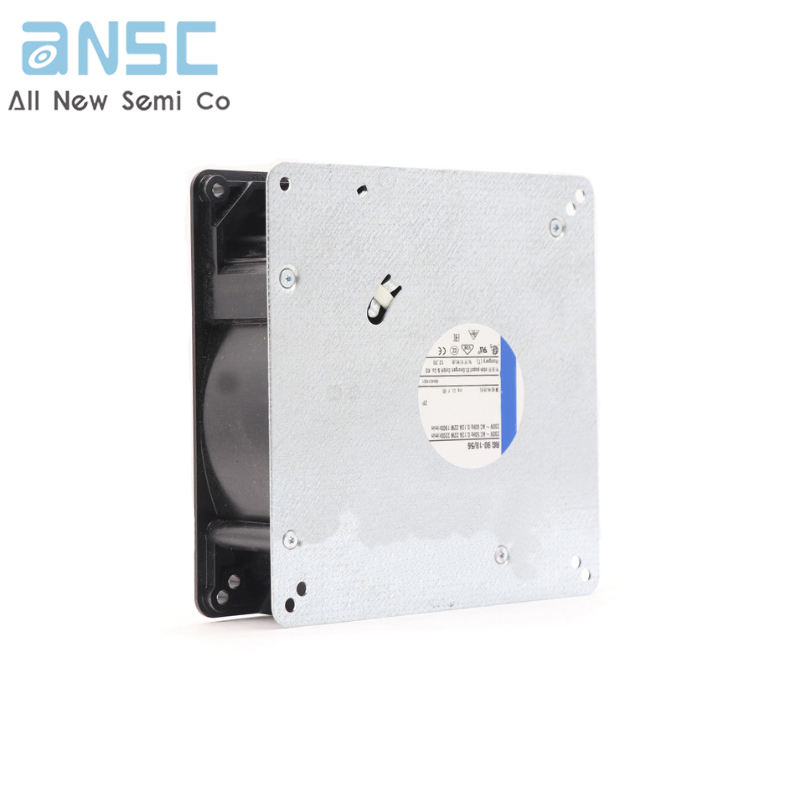

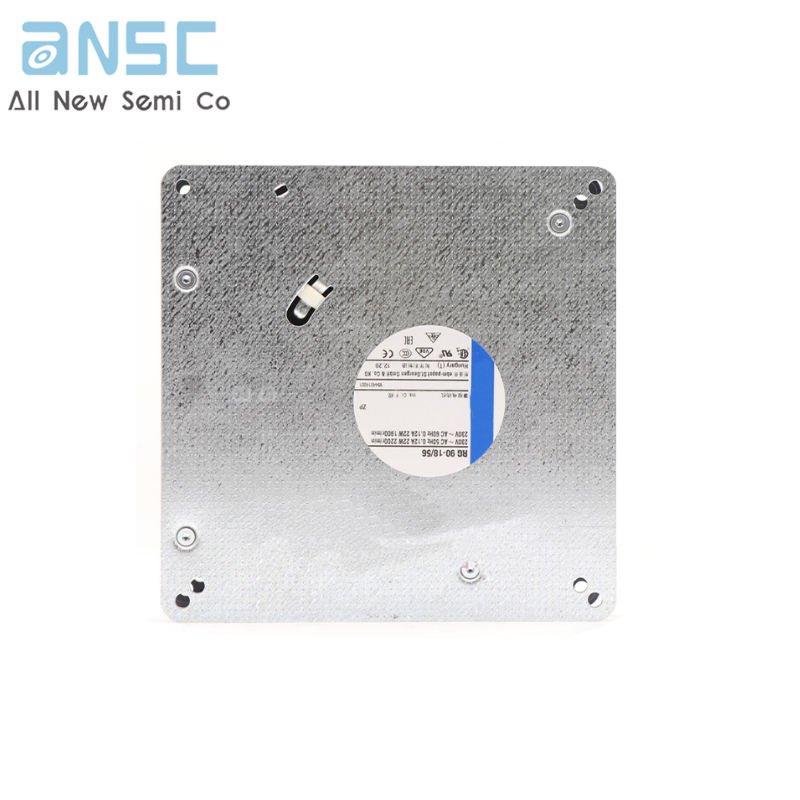

Actual image of the product
