Product Description
Type | Description |
|---|---|
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | R2E220 |
Packaging | Bulk |
Part Status | Obsolete |
Voltage - Rated | 230VAC |
Size / Dimension | Round - 220mm Dia |
Width | 71.00mm |
Air Flow | 530.0 CFM (14.84m³/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Motorized Impellers |
Features | Capacitor, Thermal Overload Protector (TOP) |
Noise | 74.0dB(A) |
Power (Watts) | 90.0W |
RPM | 2700 RPM |
Termination | 4 Wire Leads with Splice Terminals |
Ingress Protection | IP44 |
Operating Temperature | 131°F (55°C) |
Approval Agency | CCC, CE, CSA |
Weight | 3.1 lbs (1.4 kg) |
Current Rating (Amps) | 0.400A |
Voltage Range | - |
Material - Frame | - |
Material - Blade | Polyamide (PA6), Nylon 6 |
Lifetime @ Temp. | - |
Base Product Number | R2E220 |

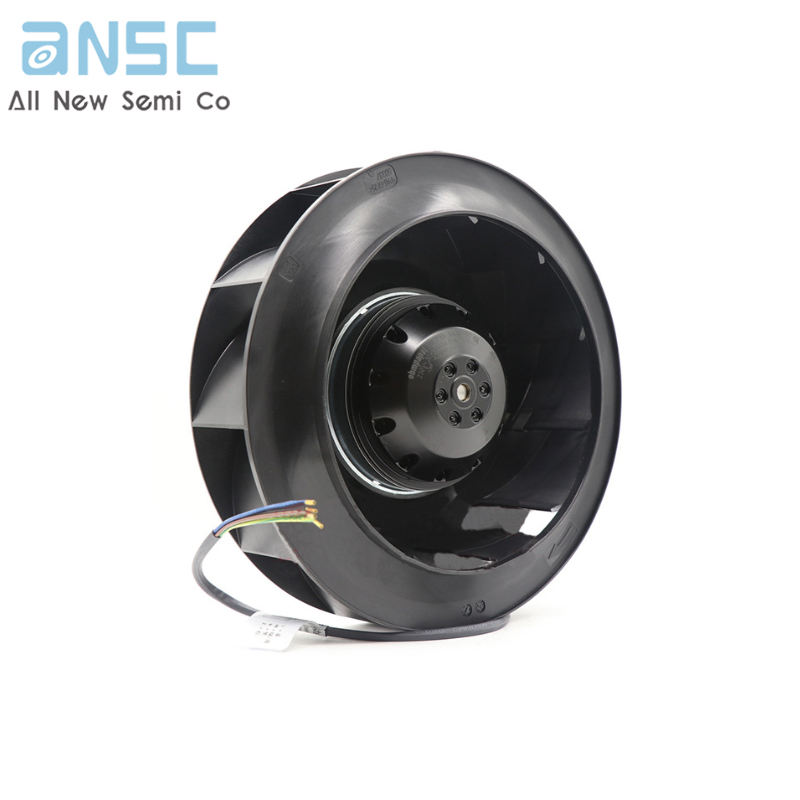

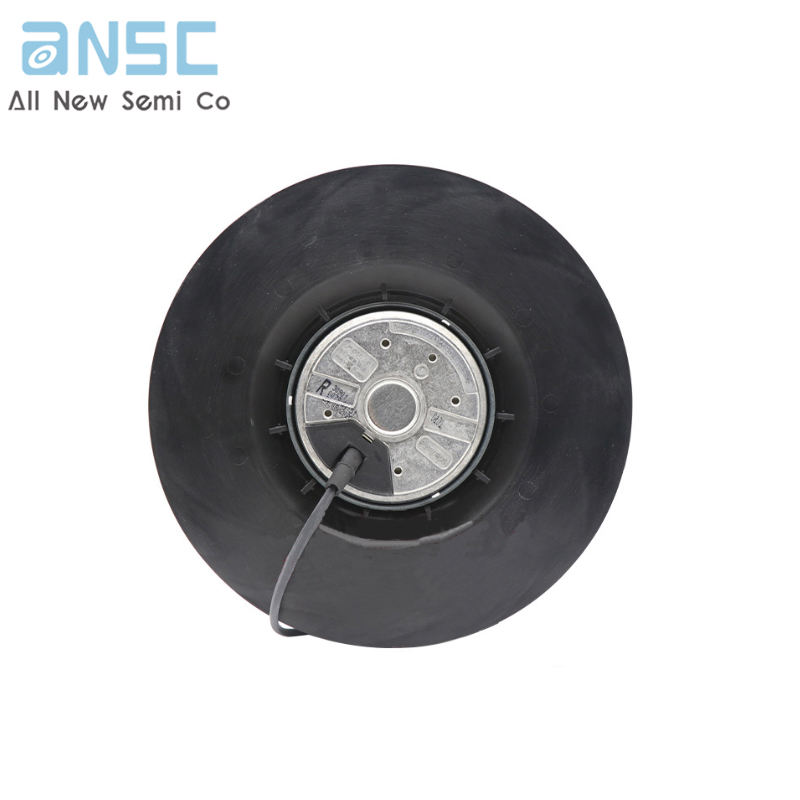

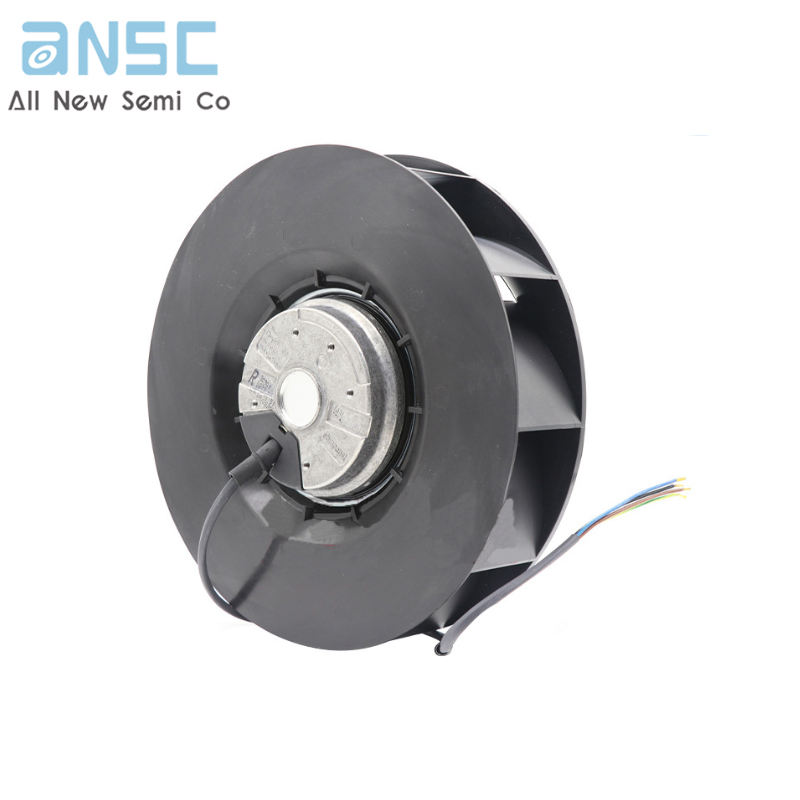

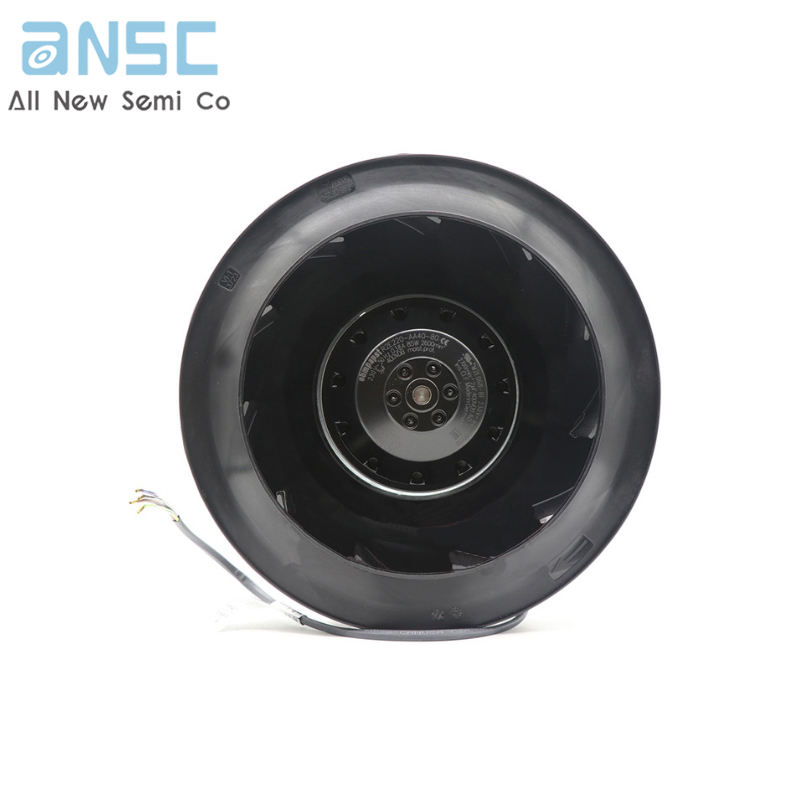

Actual image of the product
