Product Description
Type | Description |
|---|---|
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | A2D200 |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 230/400VAC |
Size / Dimension | Round - 195mm Dia |
Width | 73.00mm |
Air Flow | 524.2 CFM (14.68m³/min |
Static Pressure | 1.204 in H2O (300.0 Pa) |
Bearing Type | Ball |
Fan Type | Tubeaxial, 3 Phase |
Features | Dual Voltage |
Noise | 70.0dB(A) |
Power (Watts) | 70.0W |
RPM | 3150 RPM |
Termination | 7 Wire Leads with Splice Terminals |
Ingress Protection | IP44 |
Operating Temperature | -13 ~ 167°F (-25 ~ 75°C) |
Approval Agency | CCC, CE |
Current Rating (Amps) | 0.140A |
Voltage Range | - |
Material - Frame | - |
Material - Blade | Steel |
Lifetime @ Temp. | - |
Base Product Number | A2D200 |

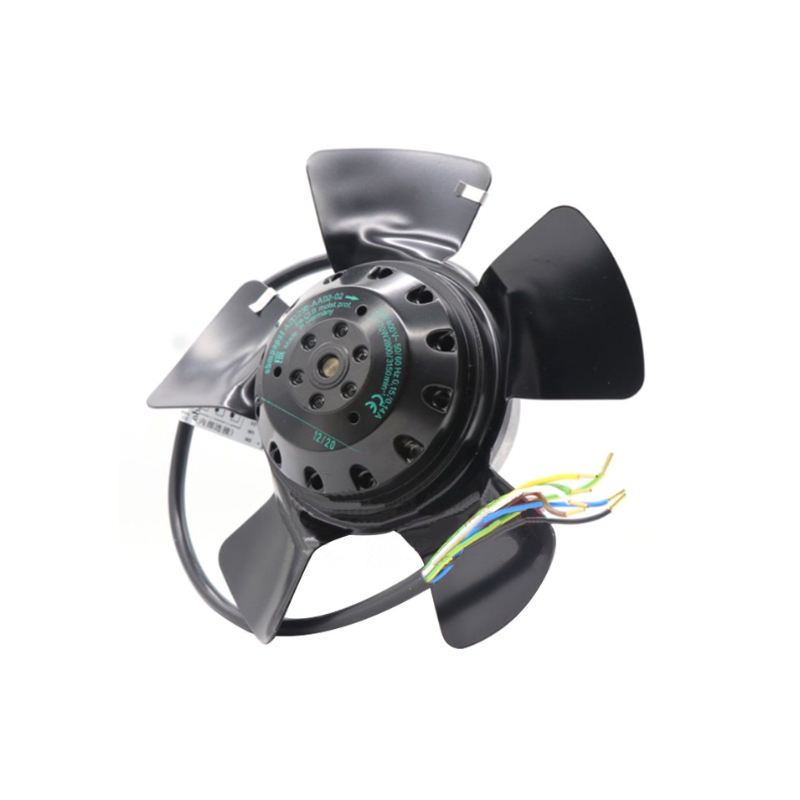

Actual image of the product
