Product Description
Type | Description |
|---|---|
category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | DV5200 |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 24VDC |
Size / Dimension | Square - 127mm L x 127mm H |
Width | 38.00mm |
Air Flow | 158.9 CFM (4.45m³/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | - |
Noise | 56.0dB(A) |
Power (Watts) | 19 W |
RPM | 5000 RPM |
Termination | 2 Wire Leads |
Ingress Protection | - |
Operating Temperature | -4 ~ 149°F (-20 ~ 65°C) |
Approval Agency | CE, CSA, UL, VDE |
Weight | 0.915 lb (415.04 g) |
Current Rating (Amps) | - |
Voltage Range | 16 ~ 30VDC |
Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
Lifetime @ Temp. | 70000 Hrs @ 40°C |
Base Product Number | DV5214 |

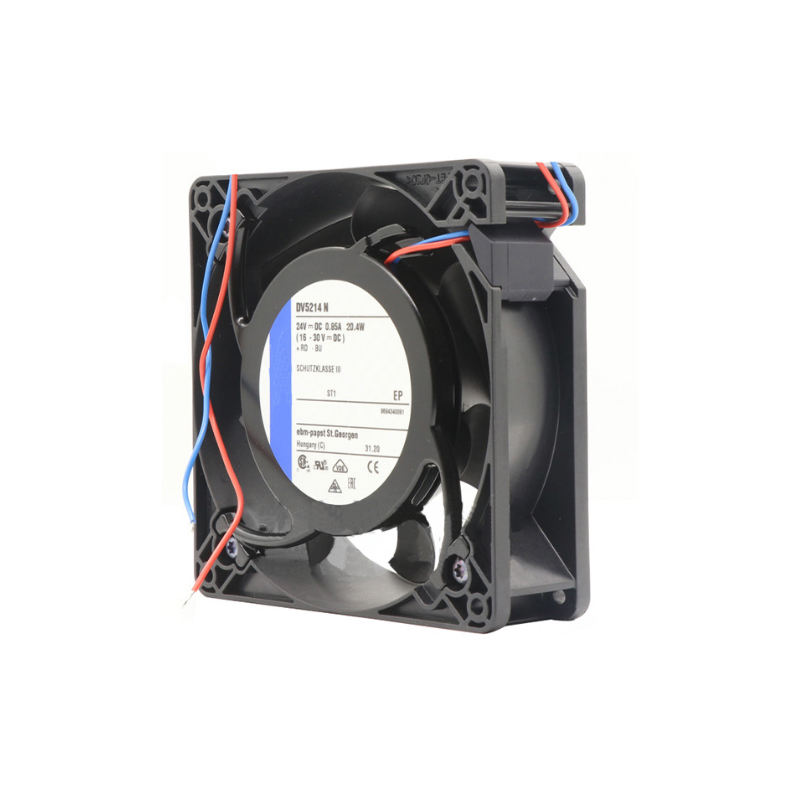

Actual image of the product
