Product Description
Type | Description |
|---|---|
category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | 8300U |
Packaging | Bulk |
Part Status | Last Time Buy |
Voltage - Rated | 24VDC |
Size / Dimension | Square - 80mm L x 80mm H |
Width | 32.00mm |
Air Flow | 47.1 CFM (1.32m³/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | - |
Noise | 48.0dB(A) |
Power (Watts) | 6 W |
RPM | 5000 RPM |
Termination | 2 Wire Leads |
Ingress Protection | IP68 - Dust Tight, Waterproof |
Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
Approval Agency | UL |
Weight | 0.375 lb (170.1 g) |
Current Rating (Amps) | - |
Voltage Range | 12 ~ 28VDC |
Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
Lifetime @ Temp. | - |
Base Product Number | 8314 |

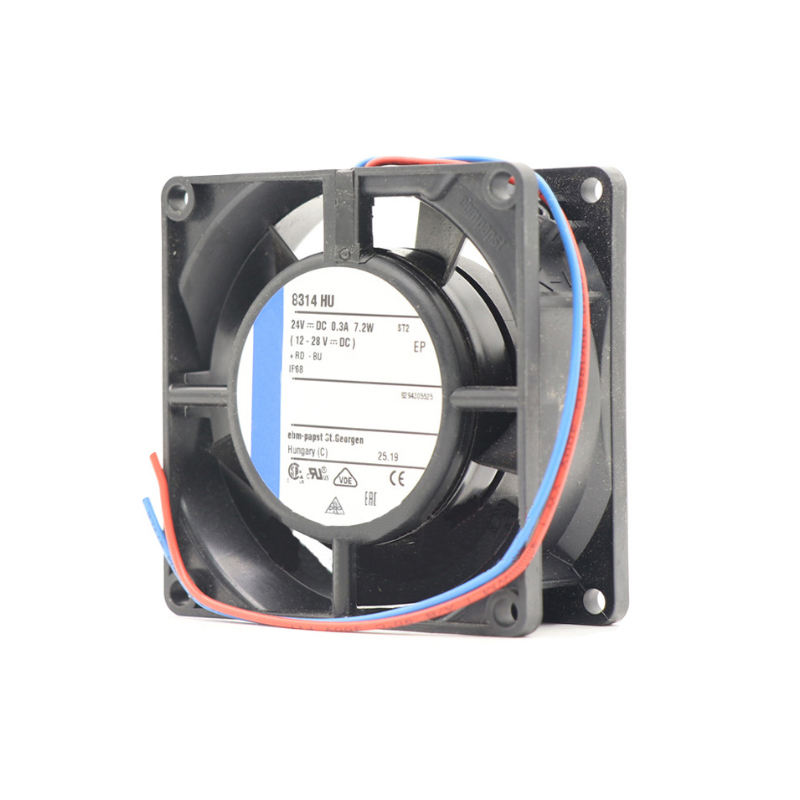

Actual image of the product
