One-Stop Supply Electronic component BOM The 28BYJ-48 is a small stepper motor suitable for a large range of applications

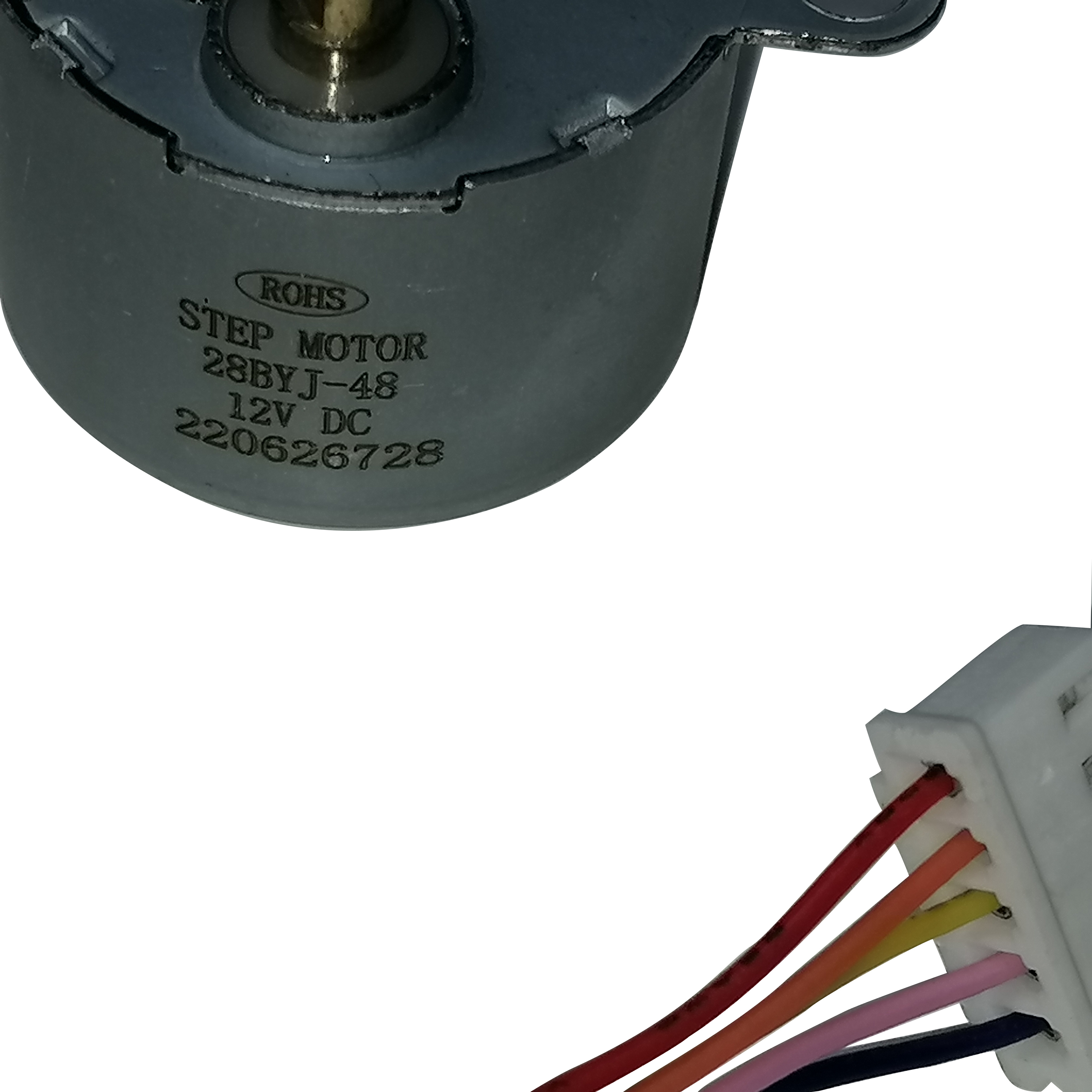

28BYJ-48

Model:28BYJ-48

Manufacturer:MikroElektronika

Package:/

Connector Type:is a small stepper motor suitable for a large range of applications

Part#28BYJ-48

Detail

Product Benefits


AttributeAttribute value
Model28BYJ-48
CategoryMotors, Actuators, Solenoids and Drivers
Stepper Motors
MfrMikroElektronika
Series28BYJ-48
PackagingBulk
Part StatusActive
TypePermanent Magnet Gear Motor
Coil TypeUnipolar
Voltage - Rated5VDC
Steps per Revolution4096
Step Angle0.088°
Accuracy-
Torque - Holding (oz-in / mNm)-
Size / DimensionRound - 1.100" Dia (28.00mm)
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing0.394" (10.00mm)
Mounting Hole Spacing1.378" (35.00mm)
Termination StyleWire Leads with Connector
Operating Temperature-
Coil Resistance50 Ohms
FeaturesFlatted Shaft
Rotor Inertia-
Approval Agency-
Weight-


28BYJ-48(logoIC图1IC图3
