Product Features
Max rDS(on) = 9.0mΩ at V GS = 10V, ID = 12A
Max rDS(on) = 14.0mΩ at V GS = 4.5V, ID = 10.5A
Advanced Package and Silicon combination for low rDS(on) and high efficiency
MSL1 robust package design
RoHS Compliant
Product Descriptions
The FDMS8692 has been designed to minimize losses in power conversion application. Advancements in both silicon and package technologies have been combined to offer the lowest rDS(on) while maintaining excellent switching performance.
Product Applications
Low Side for Synchronous Buck to Power Core Processor
Secondary Side Synchronous Rectifier
Low Side Switch in POL DC/DC Converter
Oring FET/ Load Switch
Product Specifications
| Part# | FDMS8692 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | onsemi |
| Series | PowerTrench® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 28A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 21 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1265 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 41W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | FDMS86 |

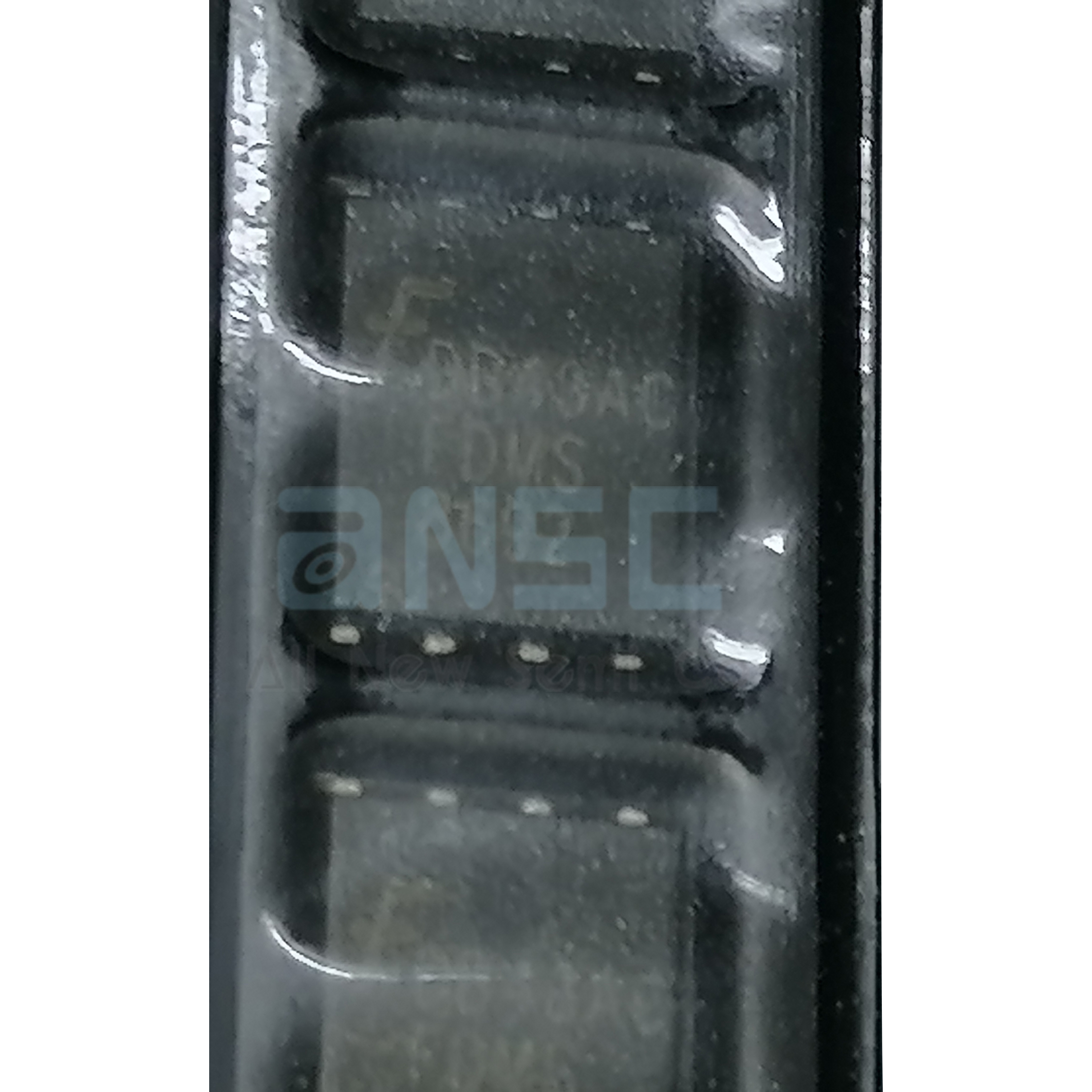

Product Show
