Product Details

The TPS4002x family of dc-to-dc controllers are designed for non-isolated synchronous buck regulators, providing enhanced operation and design flexability through user programmability.

The TPS4002x utilizes a proprietary Predictive Gate Drive technology to minimize the diode conduction losses associated with the high-side and synchronous rectifier N-channel MOSFET transistions. The integrated charge pump with boost circuit provides a regulated 5-V gate drive for both the high side and synchronous rectifier N-channel MOSFETs. The use of the Predictive Gate Drive technology and charge pump/boost circuits combine to provide a highly efficient, smaller and less expensive converter.

Design flexibility is provided through user programmability of such functions as: operating frequency, short circuit current detection thresholds, soft-start ramp time, and external synchronization frequency. The operating frequency is programmable using a single resistor over a frequency range of 100 kHz to 1 MHz. Higher operating frequencies yield smaller component values for a given converter power level as well as faster loop closure.

Product Features

• Operating Input Voltage 2.25 V to 5.5 V

• Output Voltage as Low as 0.7 V

• 1percent Internal 0.7 V Reference

• Predictive Gate Drive N-Channel MOSFET

• Drivers for Higher Efficiency

• Externally Adjustable Soft-Start and Short

• Circuit Current Limit

• Programmable Fixed-Frequency

• 100 KHz-to-1 MHz Voltage-Mode Control

• Source-Only Current or Source/Sink Current

• Quick Response Output Transient

• Comparators with Power Good Indication

• Provide Output Status

• 16-Pin PowerPAD Package

Product Applications

• Networking Equipment

• Telecom Equipment

• Base Stations

• Servers

• DSP Power

Specifications

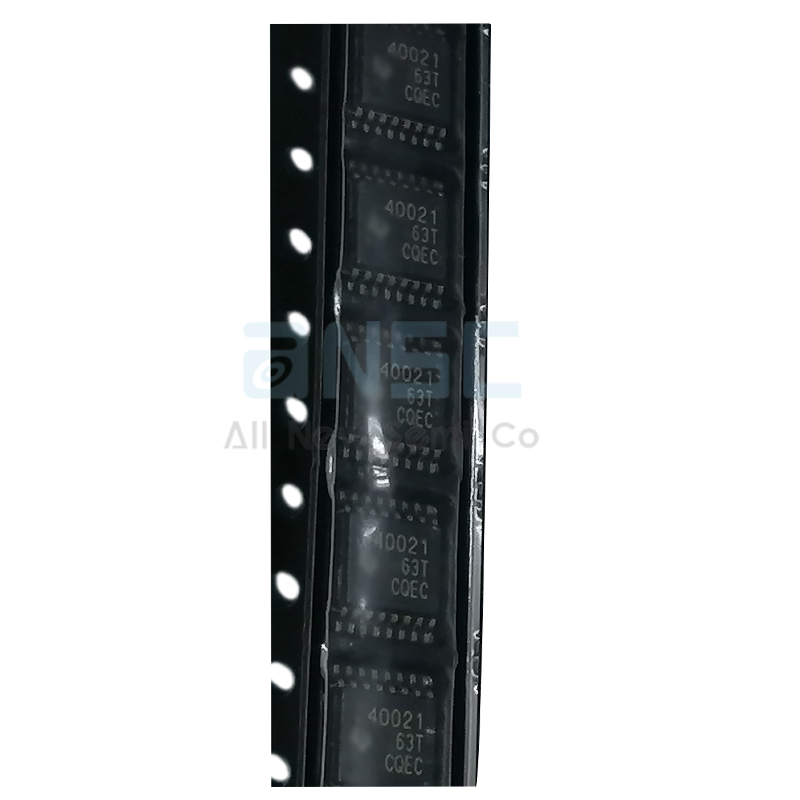

Actual product photos
