Product Descriptions

The A4984 is a complete microstepping motor driver with built-in translator for easy operation. It is designed to operate bipolar stepper motors in full-, half-, quarter-, and eighth-step modes. Step modes are selectable by MSx logic inputs. It has an output drive capacity of up to 35 V and ±2 A. The A4984 includes a fixed off-time currentregulatorwhich hasthe ability to operate in Slow or Mixed decay modes.

The ET package meets customer requirements for no smoke no fire (NSNF) designs by adding no-connect pins between critical output, sense, and supply pins. So, in the case of a pin-to-adjacent-pin short, the device does not cause smoke or fire. Additionally, the device does not cause smoke or fire when any pin is shorted to ground or left open.

The translator is the key to the easy implementation of the A4984. Simply inputting one pulse on the STEP input drives the motor one microstep. There are no phase sequence tables, high frequency control lines, or complex interfaces to program. The A4984 interface is an ideal fit for applications where a complex microprocessor is unavailable or is overburdened.

During stepping operation, the chopping control in the A4984 automatically selects the current decay mode, Slow or Mixed.

Product Features

▪ Low RDS(ON) outputs

▪ Automatic current decay mode detection/selection

▪ Mixed and Slow current decay modes

▪ Synchronous rectification for low power dissipation

▪ Internal UVLO

▪ Crossover-current protection

▪ 3.3 and 5 V compatible logic supply

▪ Thin profile QFN and TSSOP packages

▪ Thermal shutdown circuitry

▪ Short-to-ground protection

▪ Shorted load protection

▪ Low current Sleep mode, < 10 µA

▪ No smoke no fire (NSNF) compliance (ET package)

Specifications

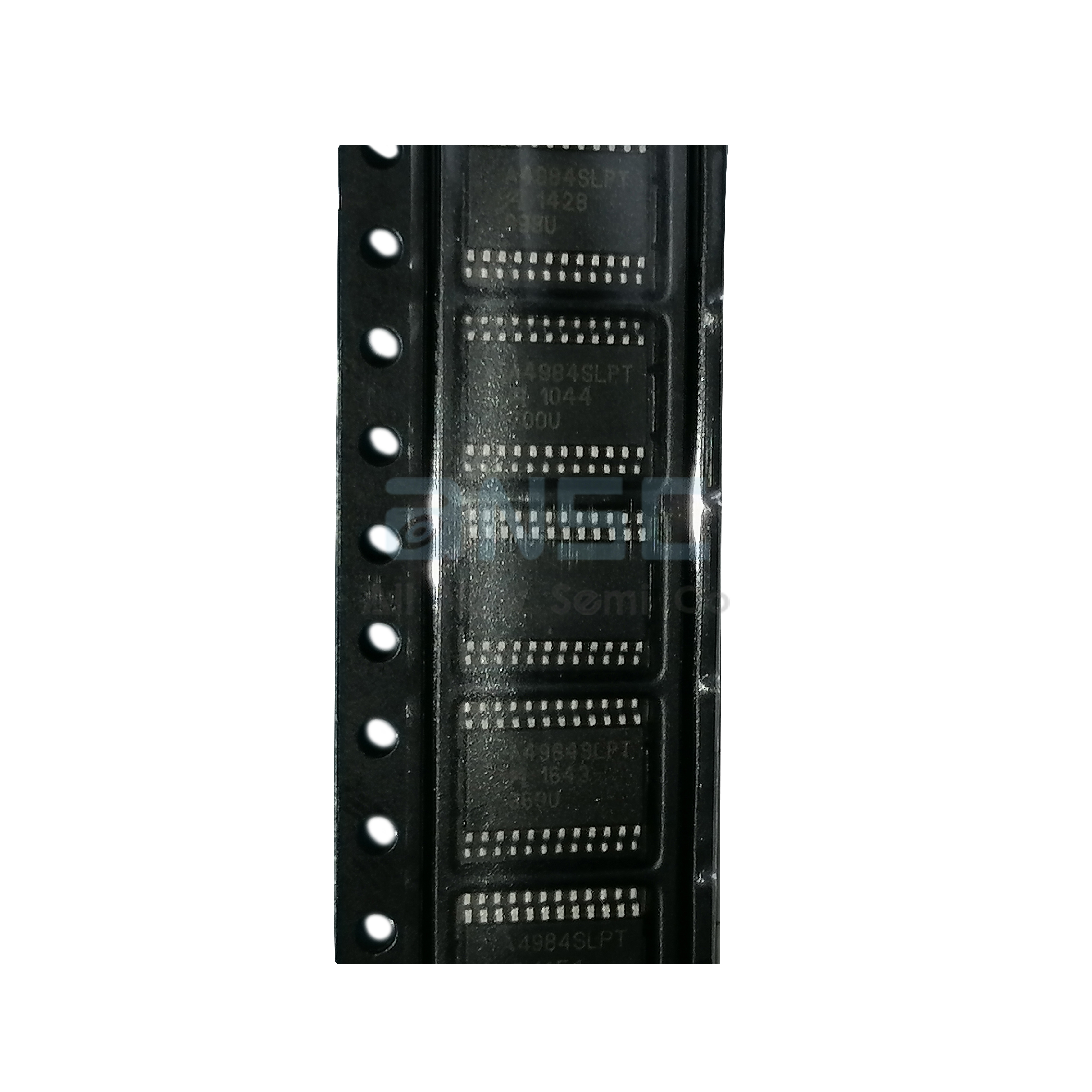

Actual product photos
