Product Description
Type | Description |
|---|---|
PART# | R3G310-RS01-I1 |
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | RadiCal® R3G310RS |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 230VAC |
Size / Dimension | Round - 325mm Dia |
Width | 232.1mm |
Air Flow | 1418.5 CFM (39.72m³/min) |
Static Pressure | 2.653 in H2O (661.0 Pa) |
Bearing Type | Ball |
Fan Type | Motorized Impellers |
Features | PWM Control, Thermal Overload Protector (TOP) |
Noise | 75.0dB(A) |
Power (Watts) | 730W |
RPM | 2640 RPM |
Termination | 5 Wire Leads, 5 Wire Leads |
Ingress Protection | IP54 - Dust Protected, Water Resistant |
Operating Temperature | -13 ~ 140°F (-25 ~ 60°C) |
Approval Agency | CCC, CSA, EAC, UL |
Current Rating (Amps) | 3.20A |
Voltage Range | 200 ~ 277VAC |
Material - Frame | Aluminum |
Material - Blade | Plastic |
Lifetime @ Temp. | - |
Base Product Number | R3G310 |

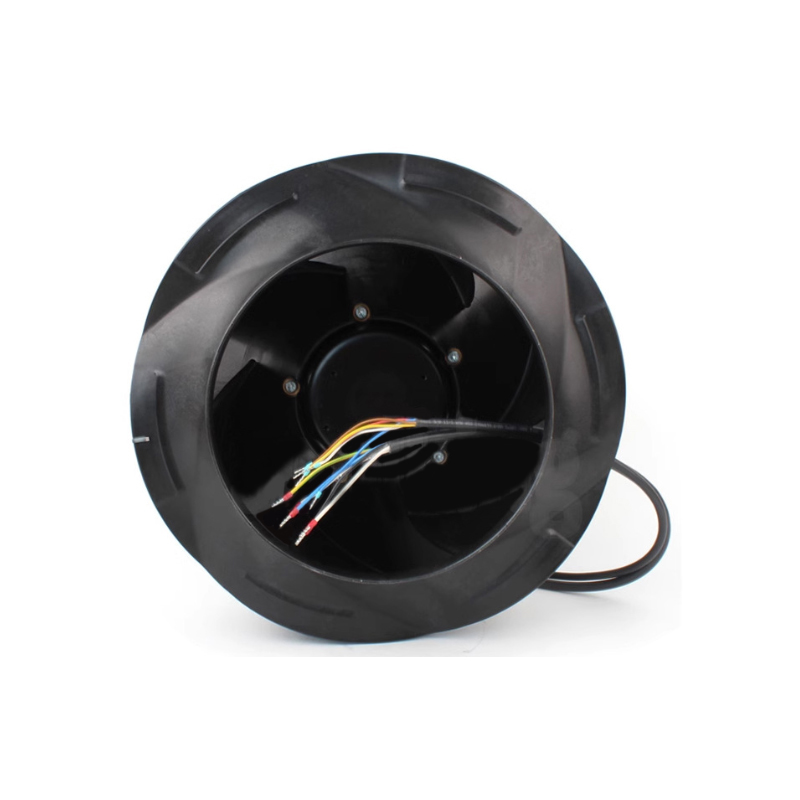

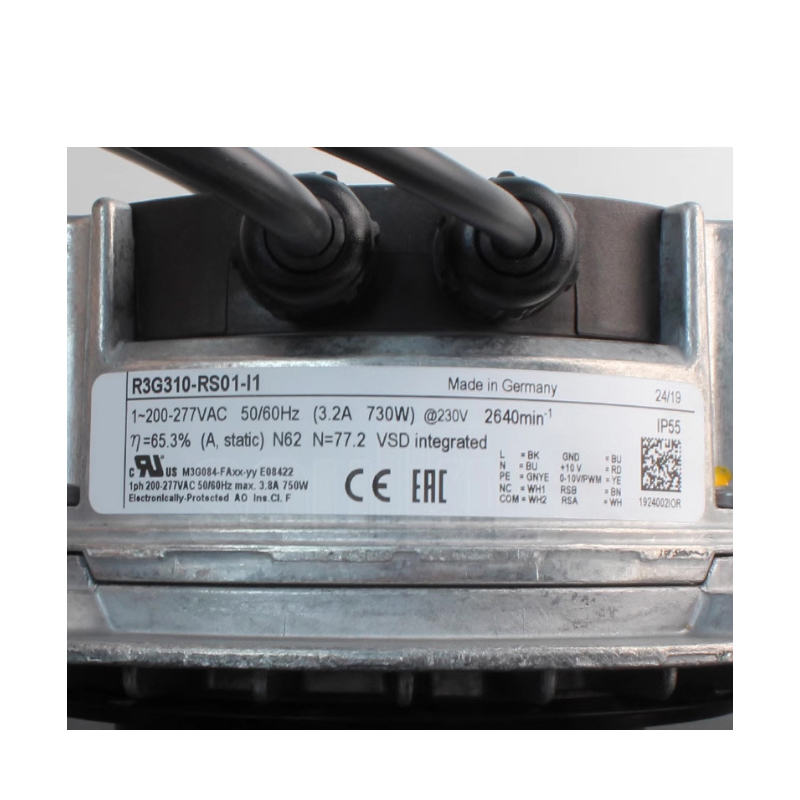

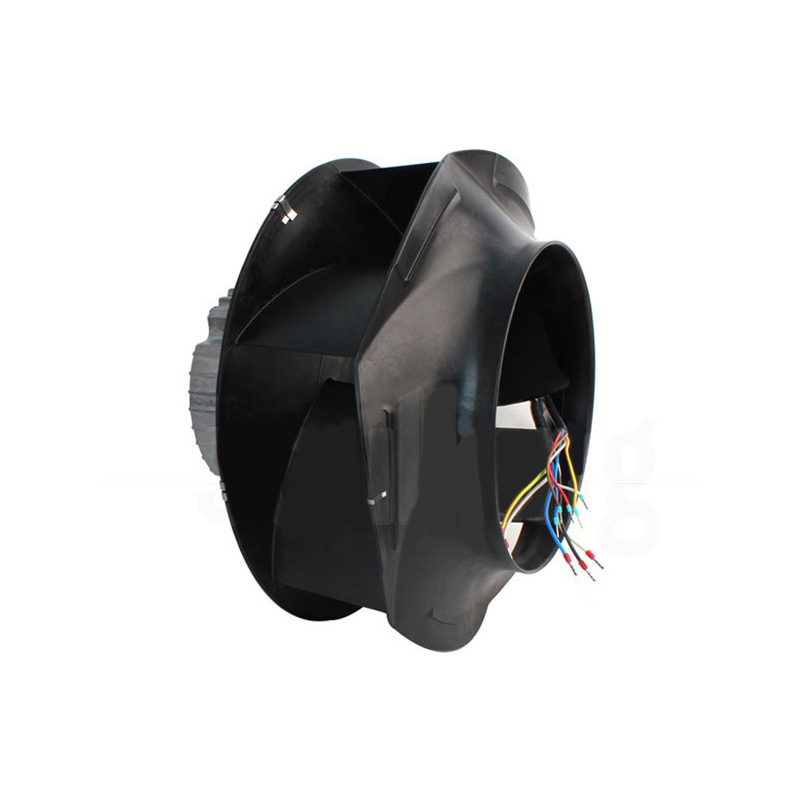

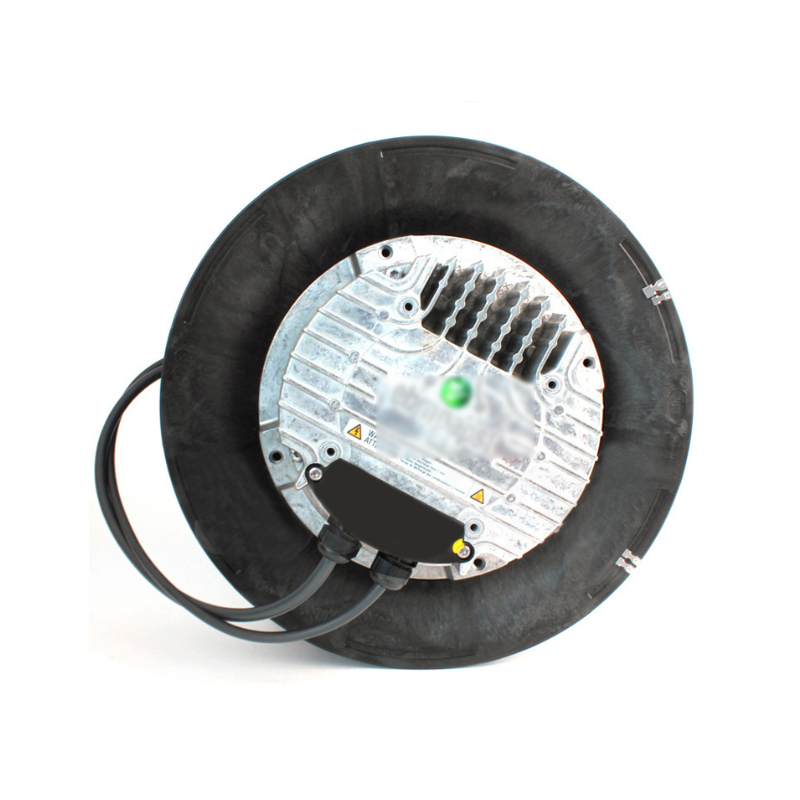

Actual image of the product
