Product details
Description
This series of right angle mount ChipLEDs is designed with the smallest footprint to achieve high density of components on board. They have the industry standard footprint of 1.6 mm x 1.0 mm and a height of only 0.6 mm. This makes them very suitable for cellular phone and mobile equipment backlighting and indication application where space is a constraint. They are available in a wide range of color combination. In order to facilitate automated pick and place operation, these ChipLEDs are shipped in tape and reel, with 4000 units per reel. These parts are compatible with IR soldering.
Features
• Small size right angle mount
• 0603 industry standard footprint
• Operating temperature range of –30˚C to +85˚C
• Available in various colors
• Compatible with IR solder reflow
• Available in 8 mm tape on 7" diameter reel
• Reel sealed in zip locked moisture barrier bags
Applications
• LCD backlighting
• Keypad backlighting
• Pushbutton backlighting
• Symbol indicator
Product Description
Type | Description |
|---|---|
Category | Optoelectronics LED Indication - Discrete |
Mfr | Broadcom Limited |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Color | Red |
Configuration | Standard |
Lens Color | White |
Lens Transparency | Diffused |
Millicandela Rating | 131mcd |
Lens Style | Rectangle with Flat Top |
Lens Size | 1.15mm x 0.80mm |
Voltage - Forward (Vf) (Typ) | 1.94V |
Current - Test | 20mA |
Viewing Angle | 110° |
Mounting Type | Surface Mount |
Wavelength - Dominant | 626nm |
Wavelength - Peak | 635nm |
Features | - |
Package / Case | 0603 (1608 Metric) |
Supplier Device Package | 0603 |
Size / Dimension | 1.60mm L x 0.80mm W |
Height (Max) | 0.35mm |
Base Product Number | HSMC-C130 |

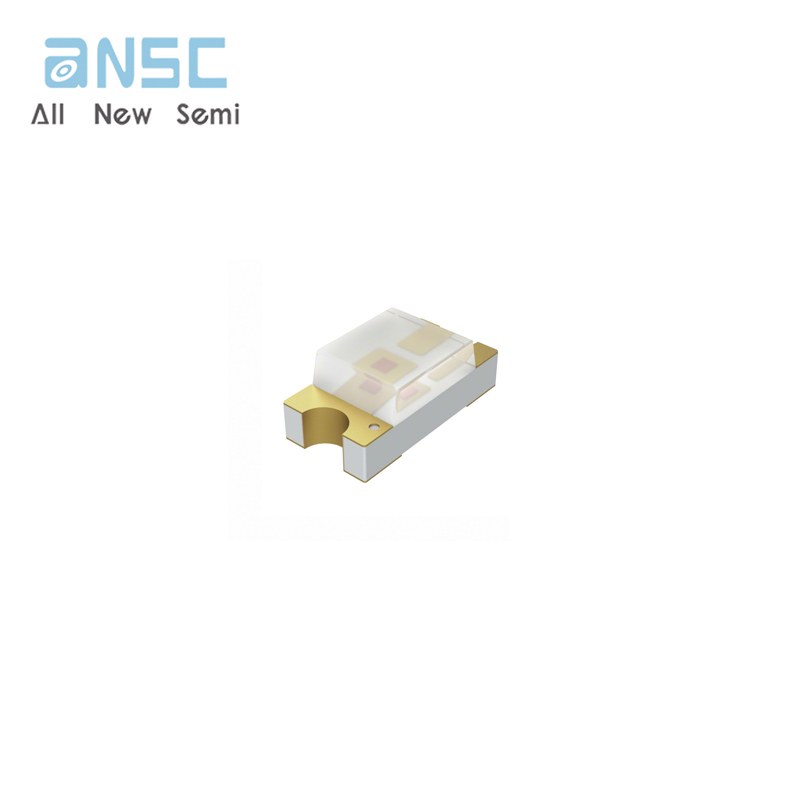

Product images

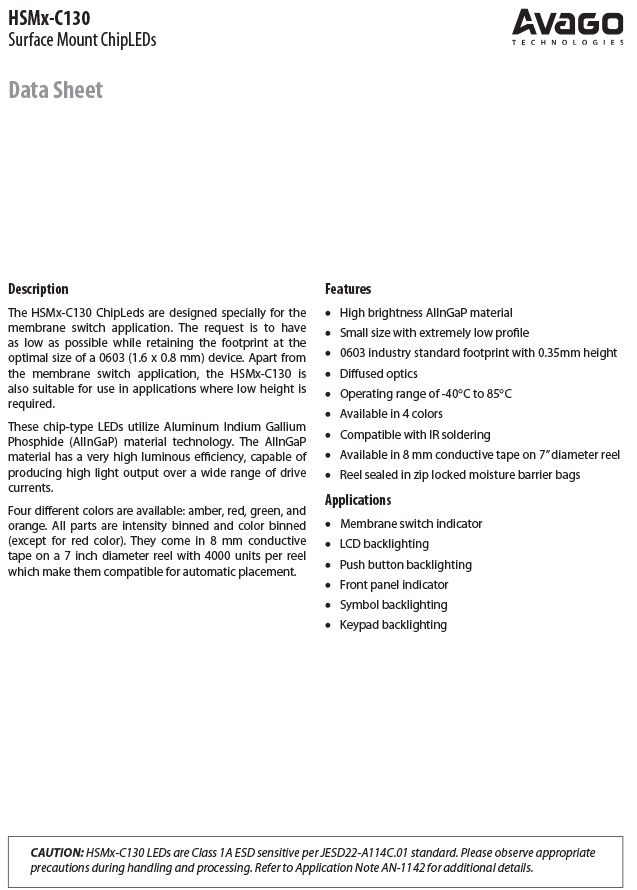

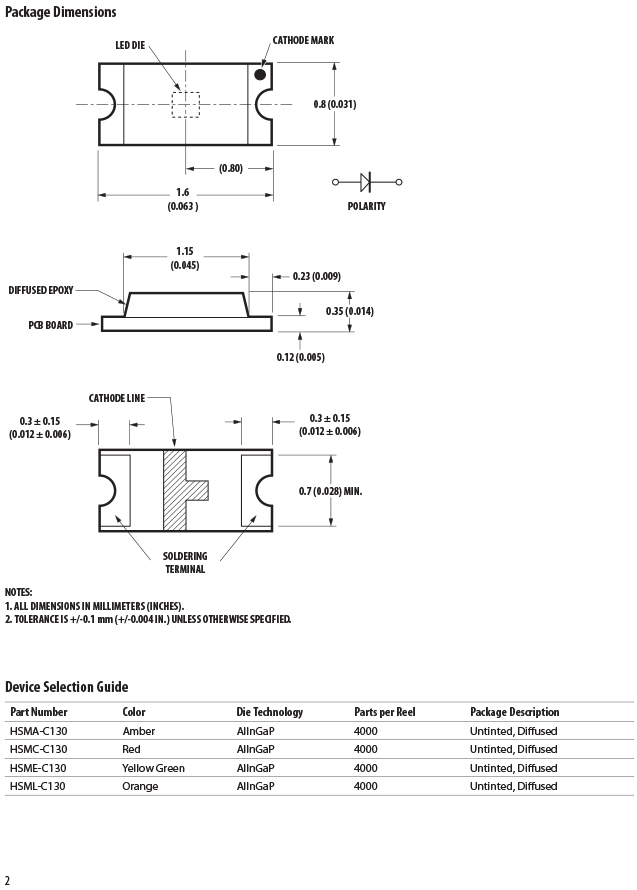

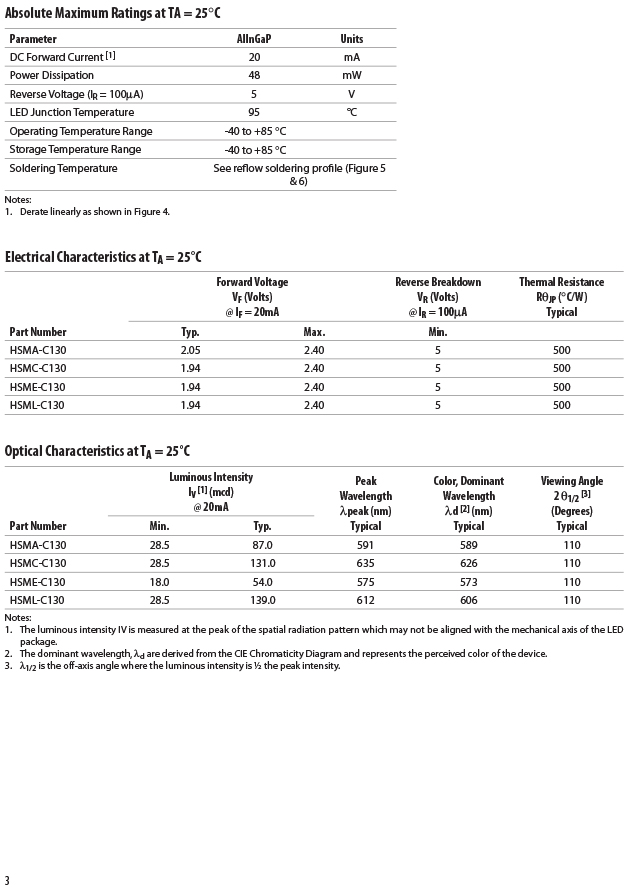

Product datasheet
