Product details
Description
These data selectors/multiplexers contain inverters and drivers to supply full data selection to the four output gates. A separate strobe (G) input is provided. A 4-bit word is selected from one of two sources and is routed to the four outputs. The ′ALS157A and SN74AS157 present true data. The ′ALS158 and SN74AS158 present inverted data to minimize propagation delay time.
• Buffered Inputs and Outputs
• Package Options Include Plastic Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs
Product Description
Type | Description |
|---|---|
Category | Integrated Circuits (ICs) Logic Buffers, Drivers, Receivers, Transceivers |
Manufacturer | Texas Instruments |
Series | 74AUC |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Logic Type | Buffer, Non-Inverting |
Number of Elements | 6 |
Number of Bits per Element | 1 |
Input Type | - |
Output Type | Open Drain |
Current - Output High, Low | -, 9mA |
Voltage - Supply | 0.8V ~ 2.7V |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 14-VFQFN Exposed Pad |
Supplier Device Package | 14-VQFN (3.5x3.5) |
Base Product Number | 74AUC07 |

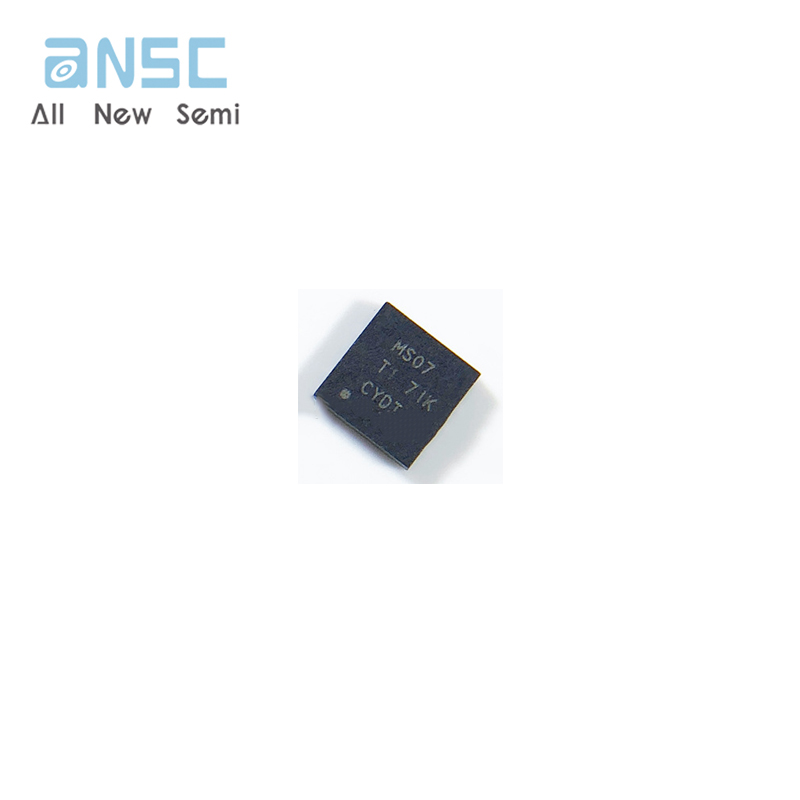

Product images

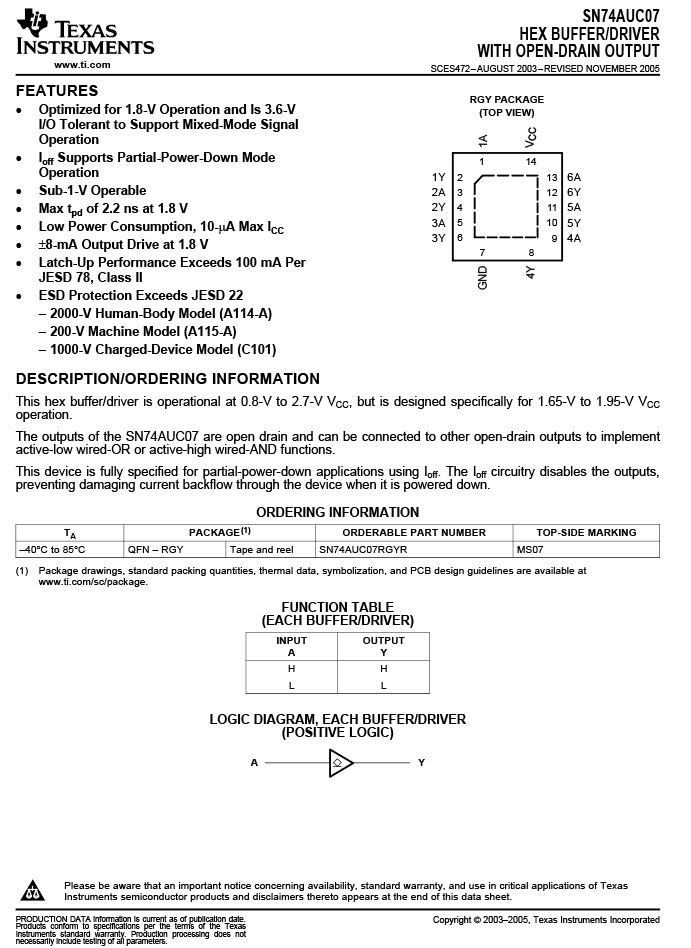

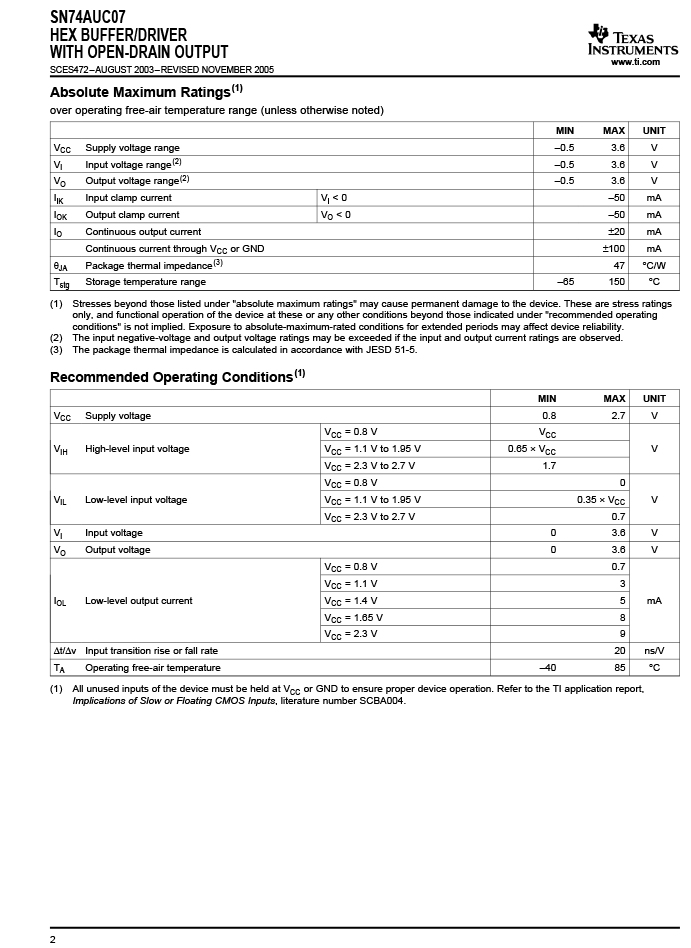

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
