Product Description
| PART# | 53748-0608 |
| Factory Lead Time | 16 Weeks |
| CAGE Code | 84048 |
| UNSPSC | 31163100 |
| Samacsys Description | Molex Slimstack 53748, 0.5mm Pitch, 60 Way, 2 Row, Straight Pcb Header, Surface Mount |
| Samacsys Modified On | 2023/3/7 16:10 |
| Category CO2 Kg | 3.7 |
| Compliance Temperature Grade | Industrial: -40c To +105c |
| EU RoHS Version | Rohs 2 (2015/863/Eu) |
| Candidate List Date | 2025/1/21 |
| EFUP | E |
| Conflict Mineral Status | Drc Conflict Free |
| Conflict Mineral Status Source | Cmrt V6.50 |
| Additional Feature | Without Vaccum Pick-Up Tape |
| Body Breadth | 0.169 Inch |
| Body Depth | 0.094 Inch |
| Body Length | 0.74 Inch |
| Body/Shell Style | Plug |
| Connector Type | Board Stacking Connector |
| Contact Finish Mating | Not Specified |
| Contact Finish Termination | Gold (Au) - With Nickel (Ni) Barrier |
| Contact Gender | Male |
| Contact Material | Not Specified |
| Contact Pattern | Rectangular |
| Contact Resistance | 50 MΩ |
| Contact Style | Centronic |
| DIN Conformance | No |
| Dielectric Withstanding Voltage | 500vac V |
| Durability | 30 Cycles |
| Filter Feature | No |
| IEC Conformance | No |
| Insertion Force-Max | .8062 N |
| Insulation Resistance | 100000000 Ω |
| Insulator Color | White |
| Insulator Material | Glass Filled Liquid Crystal Polymer |
| JESD-609 Code | e4 |
| MIL Conformance | No |
| Mating Contact Pitch | 0.02 Inch |
| Mating Information | 52991-0608 |
| Mixed Contacts | No |
| Mounting Option 1 | Locking |
| Mounting Style | Straight |
| Mounting Type | Board |
| Number Of Connectors | One |
| Number Of PCB Rows | 2 |
| Number of Rows Loaded | 2 |
| Operating Temperature-Max | 105 °C |
| Operating Temperature-Min | -40 °C |
| Option | General Purpose |
| PCB Contact Pattern | Rectangular |
| PCB Contact Row Spacing | 3.4036 Mm |
| Plating Thickness | 4u Inch |
| Polarization Key | Polarized Housing |
| Rated Current (Signal) | 0.5 A |
| Reference Standard | Ul |
| Terminal Pitch | 0.5 Mm |
| Termination Type | Surface Mount |
| Total Number of Contacts | 60 |
| UL Flammability Code | 94V-0 |

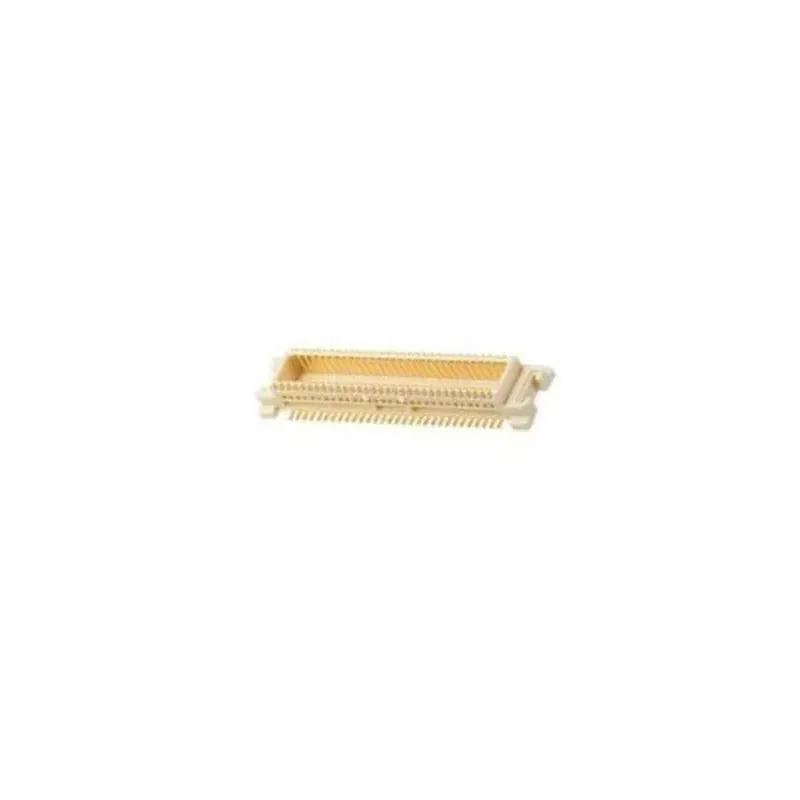

Actual image of the product
