Products Description
Wireless charging = transmitter + receiver
1, the mobile phone has wireless charging function: if the mobile phone comes with wireless charging function, the transmitter can be charged wirelessly directly
2, the mobile phone does not have wireless charging function: if the mobile phone does not have wireless charging function, it is necessary to shoot the receiving end and the transmitting end at the same time to achieve wireless charging
| Part NO | TX030 | Input power supply | Type-C: 5/9/12V/QC3.0 |
| Power | 20w | Welding Wire | 5/9/12V, power adapter available |
| Transmission distance | 0-10mm | Charging power | Input 5V, output 5W; Input 9V, output 15W |

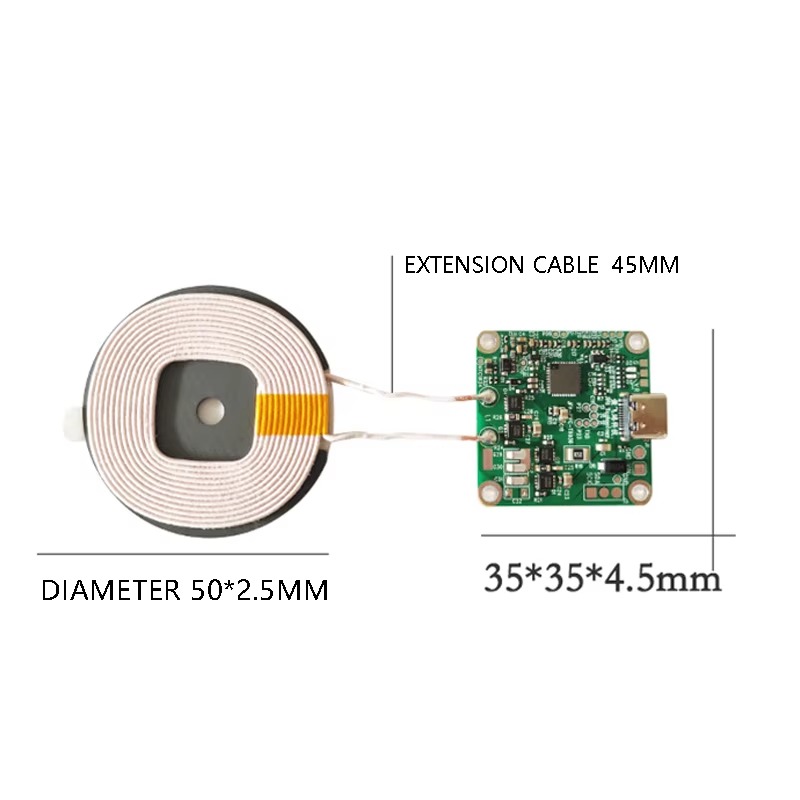

| Coil size | Diameter 50mm* Thickness 2.5mm | Charging power | Input 12V/QC3.0; Output 22W-5W automatic recognition |
| PCB size | 35*35* Thickness 4.5mm | Executive standard | QI wireless charging standard |
| Transmission distance | Space separation 0-10mm; Barrier 0-8mm Cannot charge across metals |
| Input power supply | Type-C port: 5/9/12V/QC3.0 |
| Soldering wire: 5/9/12V, can be powered by a power adapter (cannot be directly used with a battery or car. Use 12V) | |
| Charging power | Input 5V, output 5W; Input 9V, output 15W |
| Input 12V/QC3.0; Output 22W-5W automatic recognition | |
| Coil size | 50mm diameter * 2.5mm thickness |
| PCB size | 35 * 35 * thickness 4.5mm |
| Execution standards | QI Wireless Charging Standard |
Attention: This product cannot be connected to the vehicleWhat does it mean to not pick up the car? If you want to use the 12V positive and negative poles of the car cigarette lighter, and the voltage of the car cigarette lighter is unstable, the output is actually 10-15V. The car model with voltage stabilization function can be directly connected. If you are using a data cable to power the wireless charging, you can use a non car model with a port (type-C)
FAQ
1、Q: Is the coil divided into front and back sides? How is the correct placement? Answer: The transmitting coil is facing the receiving end of the phone (placed on the back)
2、Q: What is the charging speed of 5V input? Answer: The 5V input is the 5W output, and fast charging is only available for 9/12V input. In addition, the USB port voltage of the car is 5V, and an on-board fast charging head needs to be added to enable fast charging
3、Q：Can the black porcelain chip on the back of the wireless charging coil be removed? Answer: No, the black porcelain plate on the back of the coil is a magnetic separator. Removing it will cause the wireless charger to malfunction. Micro cracking of ceramic tiles does not affect charging
