Product Description
Product Introduction:
RAMPS stands for RepRap Arduino Mega Pololu Shield. The version sold on BotSheet is the latest version 1.4.
When used with the Arduino Mega 2560 motherboard and four types of Pololu Shield motor chips,
it can become the brain of a 3D printer, instructing the motor to move and commanding the extruder to print.
Main Application:
The combination of RAMPS 1.4 + Arduino Mega 2560 + A4988 motor chip is the best combination tested by BotSheet and
is also the most popular combination. It is compatible with 3D printers with Delta parallel arm structure or XYZ 3-axis structure,
and is suitable for making open source 3D printer projects such as Kossel, Rockstock, Mendel, Prusa i3, etc.
Extended Application:
As long as the HC-06 Bluetooth transmission module is installed, you can use the computer Bluetooth to connect to RAMPS for wireless 3D printing.
In addition, you can also install an LCD display kit to make the 3D printer independent of the computer and use SD Card to print directly, becoming an independent printing center.
These accessories can also be purchased on BotSheet.
Product Specifications:
Size: 102*60*40mm
Weight: 70g
Connection: USB Type B
Voltage: 12V
Product Includes:
1 x 3D Printer Control Board RAMPS 1.4
Product Features
1. It has provisions for cartesian robots and extruders.
2. Expandable to controls and other accessories.
3. MOSFETs for heater/fan output and 3 thermistor circuits.
4. 5A fuse for extra safety and component protection
5. Extra 11A fuse for heated bed control
6. Fits 5 Pololu stepper driver boards
7. Pololu board headers so they can be easily replaced or removed for future designs.
8. I2C and SPI pins left for future expansion.
9. All MOSFETs hooked up to PWM pins for versatility.
10. Servo style connectors for connecting to end stops, motors and LEDs. These connectors are gold plated, rated for 3A and very compact.
11. SD card added - now available by Kliment - Sdramps
12. LED to indicate when heater is output
13. Option for 2 motors connected to Z Prusa Mendel

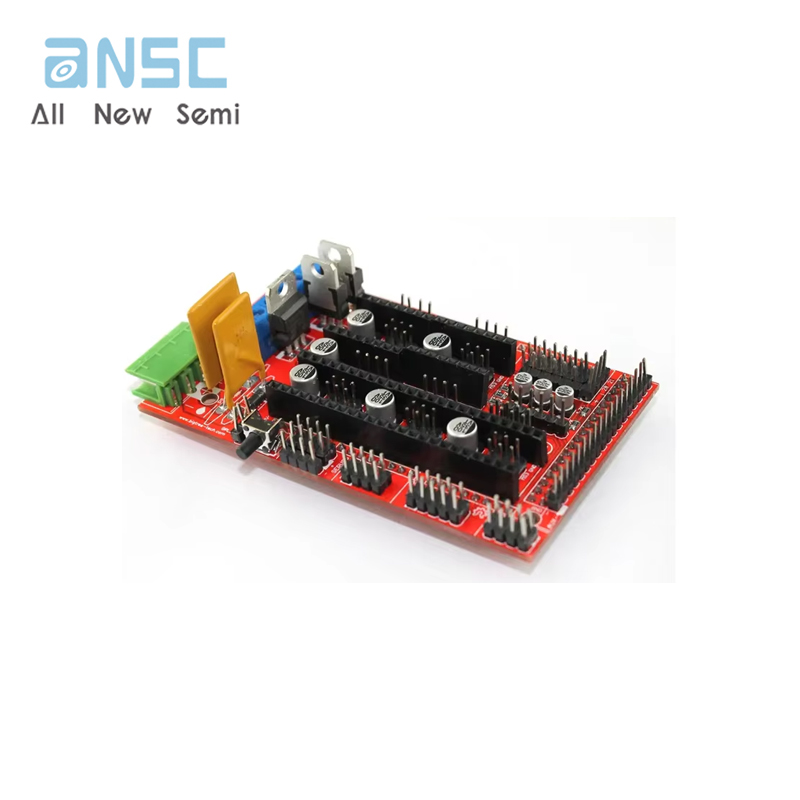

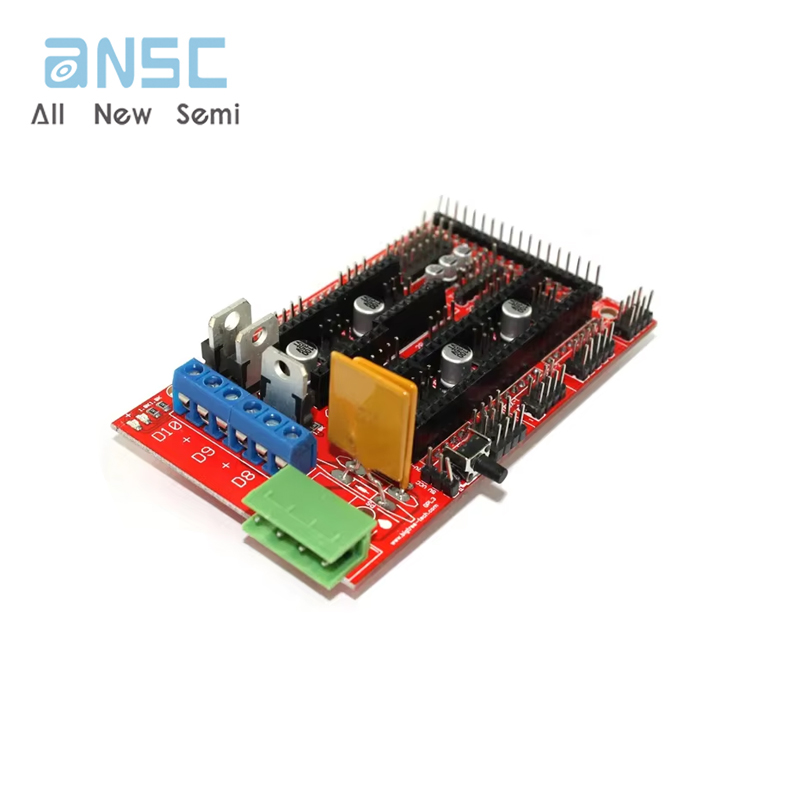

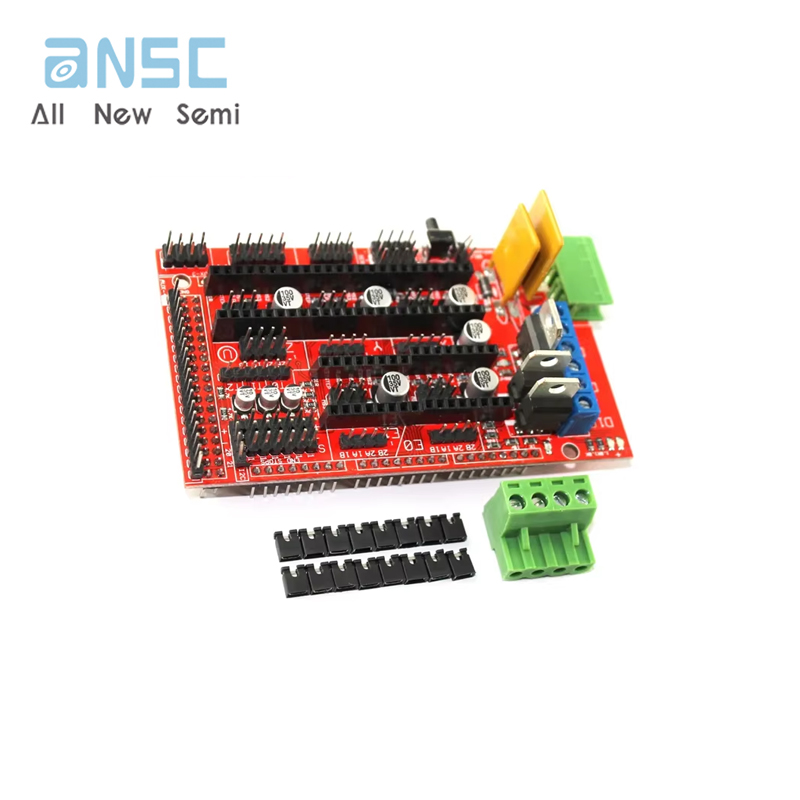

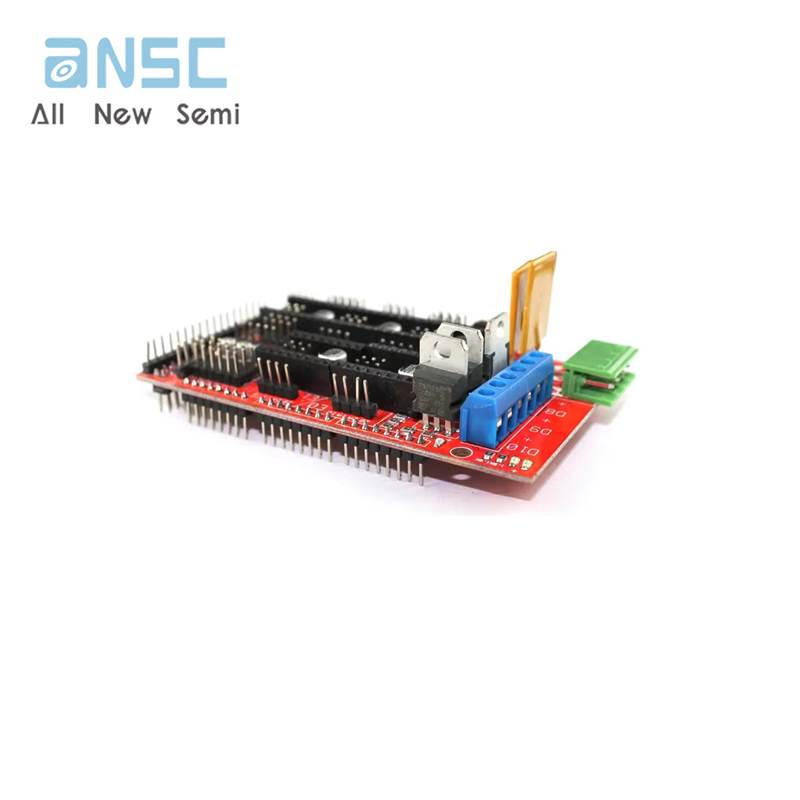

Actual image of the product
