Notebook USB vehicle navigation GPS positioning module dash recorder UAV GPS module VK-172
| Colour: white; |
| Material: ABS; |
| Dimension: 28mm×28m×8.4mm |

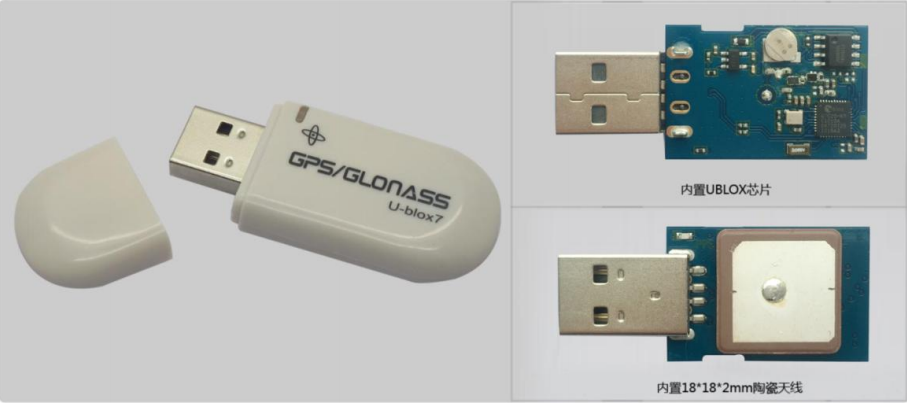

| Built-in 18*18*2(mm) patch antenna for smaller module demension demand. Adopts KDS 0.5PPM precision TCXO. Built-RTC crystal and picofarads capacitance faster hot start |
| 1-10Hz update rate positioning. Support AssistNow Online and AssisNow offline A-GPS services. GPS, GALILEO,SBAS (WAAS,EGNOS,MSAS,GAGAN) hybrid engine |
| GPS Smart USB (VK-172) is a highly sensitive GPS receiver with low power consumption |
| It is built with Ublox7 architecture and USB interface, and non-slip rubber-pad with a magnetic mounting. It is easy to place on top of a vehicle to fix positioning |

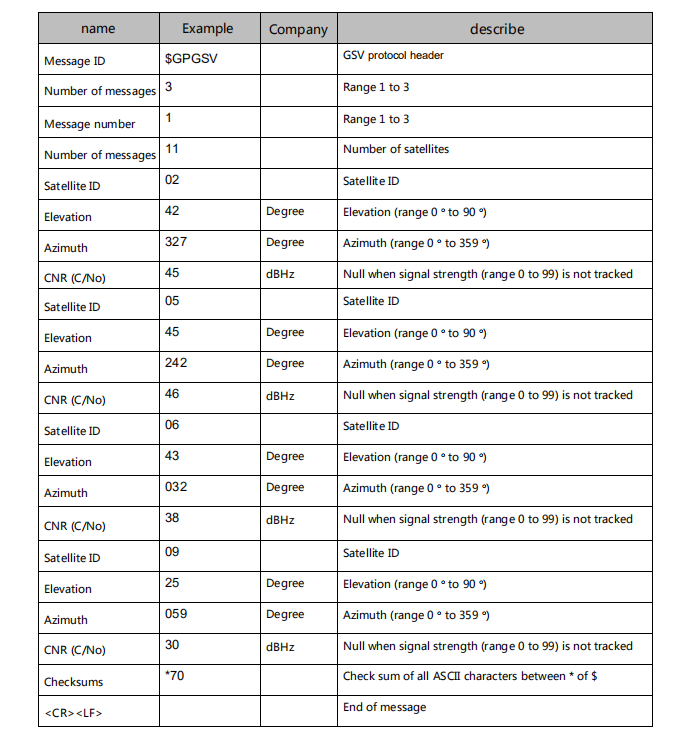

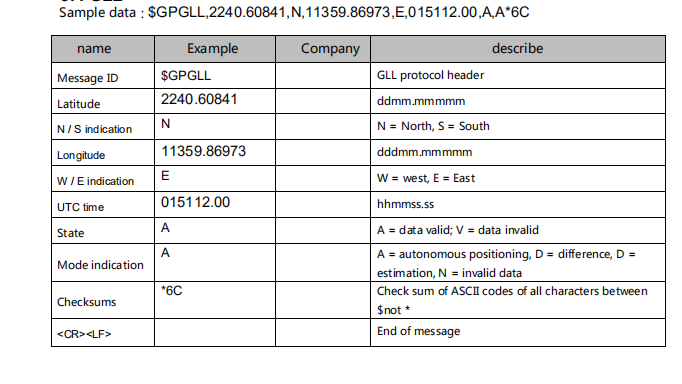

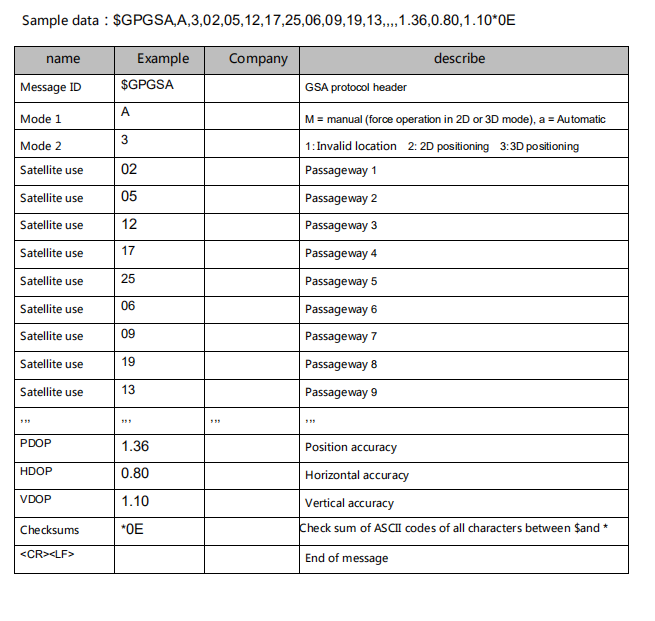

| Support NMEA 0183 and ublox binary protocol |
| Support Windows XP / Vista / 7 / 8 / CE |
| Chip:U-Blox (G-7020) |
| C / A code, 1.023 yards stream |
| Receive frequency: L1 [1575.42MHz] |
| Receive Channel: 56CH |
| Support DGPS [WAAS,EGNOS & MSAS] |
| Positioning performance |
| Less than 2.5m [Autonomous][50%] |
| Rate : Less than 0.02m/s |
| Direction: Less than 0.5 Degrees |
| Timing accuracy:1us |
| Reference coordinate system:WGS-84 |
| Max Altitude:18000 m |
| Max Speed :500 m/s |
Acceleration: Less than 4g
|
| Electrical properties |
| Other parameters |
| Tracking sensitivity: -162 dBm |
| Standard clock pulse : 0.25Hz ~1 KHz |
| Acquisition Sensitivity: -160dBm |
| Positioning update rate :1Hz ~ 5Hz (Default 1Hz) |
| Acquisition time (average) |
| USB port interface |
| Cold Start: 29seconds |
| Data Rate: 9600bps |
| Warm Start: 28seconds |
| Operating temperature : -30 Celsius ~ +85 Celsius |
| Hot Start: 1 seconds |
AGPS :3 seconds |
Usage: |
| Download the driver ,Connect the VK16U6 to your equipment |
| Put VK16U6 in a appropriate place to receive the best GPS satellite signal. |
| Open the navigation software,set the COM port and baud rate for the receiver; |
| VK16U6will start to provide you GPS satellite positioning function. |
| Package: |
| 1 x USB GPS Receiver |
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm. |
