Product Descriptions

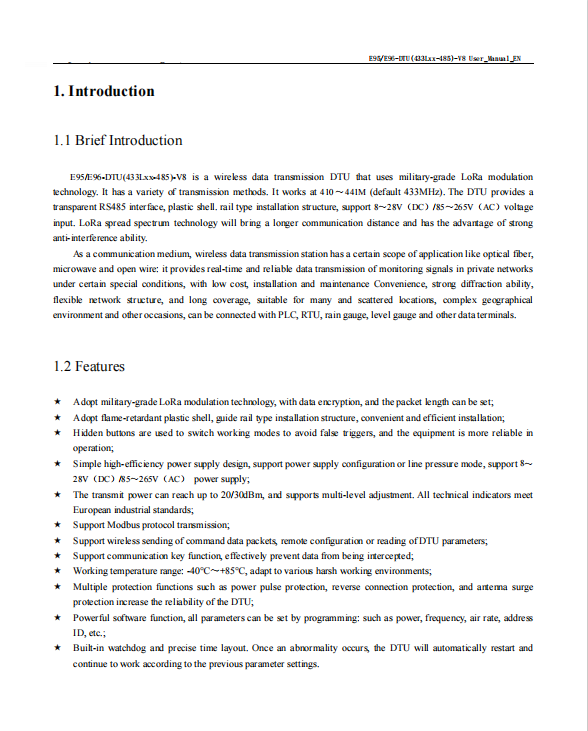

E95/E96-DTU(433Lxx-485)-V8 is a wireless data transmission DTU that uses military-grade LoRa modulationtechnology. It has a variety of transmission methods. It works at 410~441M (default 433MHz). The DTU provides atransparent RS485 interface, plastic shell. rail type installation structure, support 8~28V (DC)/85~265V (AC) voltageinput. LoRa spread spectrum technology will bring a longer communication distance and has the advantage of stronganti-interference ability.

As a communication medium, wireless data transmission station has a certain scope of application like optical fibermicrowave and open wire: it provides real-time and reliable data transmission of monitoring signals in private networksunder certain special conditions, with low cost, installation and maintenanee Convenience, strong difiraction abilityfexible network structure, and long coverage, suitable for many and scattered locations, complex geographicaenvironment and other occasions, can be connected with PLC, R'TU, rain gauge, level gauge and other data terminals.

Product Features

• Adopt military-grade LoRa modulation technology, with data encryption, and the packet length can be set；

• Adopt flame-retardant plastic shell, guide rail type installation structure, convenient and efricient installation；

• Hidden buttons are used to switch working modes to avoid false triggers, and the equipment is more reliable in operation；

• Simple high-eficiency power supply design, support power supply configuration or line pressure mode, support 8~28V(DC)/85~265V(AC) power supply;

• The transmit power can reach up to 20/30dBm, and supports multi-level adjustment. All technical indicators meet European industrial standards.

• Support Modbus protocol transmission；

• Support wireless sending of command data packets, remote configuration or reading of DTU parameters;

• Support communication key function, effectively prevent data from being intercepted;

• Working temperature range:-409~+85°C, adapt to various harsh working environments.

• Multiple protection functions such as power pulse protection, reverse connection protection, and antenna surgeprotection increase the reliability ofthe DTU.

• Powerful software function, all parameters can be set by programming: such as power, frequency, air rate, address ID. etc.;

• Built-in watchdog and precise time layout. Once an abnormality occurs, the DTU will automatically restart andcontinue to work according to the previous parameter settings

Specifications

Actual product photos

Product Data Book：

For more product information, please download the PDF
