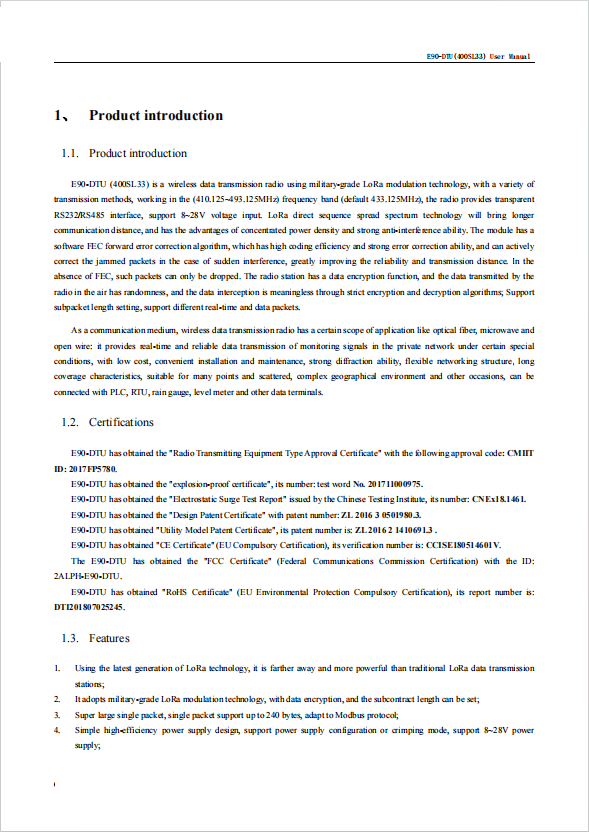

Product Descriptions
E90-DTU (400SL33) is a wireless data transmission radio using military-grade LoRa modulation technology, with a variety of transmission methods, working in the (410.125~493.125MHz) frequency band (default 433.125MHz), the radio provides
transparent RS232/RS485 interface, support 8~28V voltage input. LoRa direct sequence spread spectrum technology will bring longer communication distance, and has the advantages of concentrated power density and strong anti-interference ability.
The module has a software FEC forward error correction algorithm, which has high coding efficiency and strong error correction ability, and can actively correct the jammed packets in the case of sudden interference, greatly improving the reliability and
transmission distance. In the absence of FEC, such packets can only be dropped. The radio station has a data encryption function, and the data transmitted by the radio in the air has randomness, and the data interception is meaningless through strict
encryption and decryption algorithms; Support subpacket length setting, support different real-time and data packets.
As a communication medium, wireless data transmission radio has a certain scope of application like optical fiber, microwave and open wire: it provides real-time and reliable data transmission of monitoring signals in the private network under certain
special conditions, with low cost, convenient installation and maintenance, strong diffraction ability, flexible networking structure, long coverage characteristics, suitable for many points and scattered, complex geographical environment and other
occasions, can be connected with PLC, RTU, rain gauge, level meter and other data terminals.
Product Features
1. Using the latest generation of LoRa technology, it is farther away and more powerful than traditional LoRa data transmission stations;
2. It adopts military-grade LoRa modulation technology, with data encryption, and the subcontract length can be set;
3. Super large single packet, single packet support up to 240 bytes, adapt to Modbus protocol;
4. Simple high-efficiency power supply design, support power supply configuration or crimping mode, support 8~28V power supply;
5. The transmission power can reach up to 2W, and support multi-level adjustment, and all technical indicators meet European industrial standards;
6. Support LBT function, the station automatically waits for transmission according to the current ambient noise intensity. Greatly improve the communication success rate of the module in harsh environments;
7. Support wireless sending command packets, remote configuration or reading of wireless module parameters;
8. Support communication key function to effectively prevent data from being intercepted;
9. It can realize multi-level relay networking, effectively expand the communication distance, and realize ultra-long-distance communication;
10. The temperature compensation circuit is adopted, and the frequency stability is better than ±1.5PPM;
11. Operating temperature range: -40°C~+85°C, adapt to a variety of harsh working environment, real industrial grade products;
12. All aluminum alloy shell, compact size, easy installation, good heat dissipation; Perfect shielding design, good electromagnetic compatibility, strong anti-interference ability;
13. Multiple protection functions such as power reverse connection protection, over-connection protection, and antenna surge protection greatly increase the reliability of the station;
14. Powerful software functions, all parameters can be programmed to set: such as power, frequency, air rate, address ID, etc.;
15. With a built-in watchdog and precise time layout, the module will automatically restart in the event of an exception and continue to work according to the previous parameter settings.
Specifications
| Attribute | Attribute value | Notes |
| ANSM-Part# | ANSM-E90-DTU(400SL33) | |
| Carrier frequency band (MHz) | 410.125-493.125 | Default 433.125MHz |
| Transmission power (dBm) | 33 | About 2W |
| Communication distance (km) | 16 | |
| Air speed (kbps) | 2.4~62.5 | Factory default 2.4kbps |
| Antenna form | SMA-K | |
| communication interface | RS232/485 | Standard DB9 hole/3.81 terminal block |
| Power supply voltage (V) | 8~28 | Suggest using 12V or 24V |
| Working temperature (° C) | -40~+85 | - |
| Product size (mm) | 82 * 62 * 25 | Excluding SMA |
| Net weight of product (g) | 150 | ±4.5g |
Actual product photos

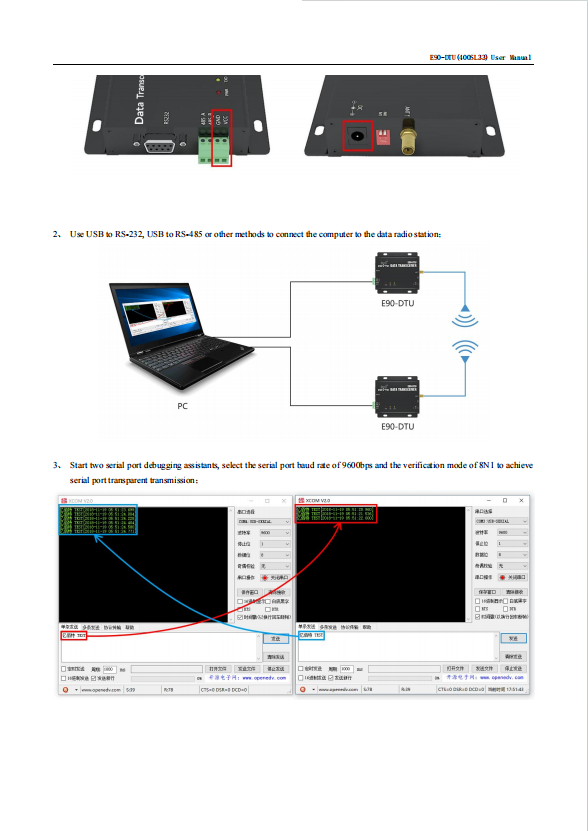

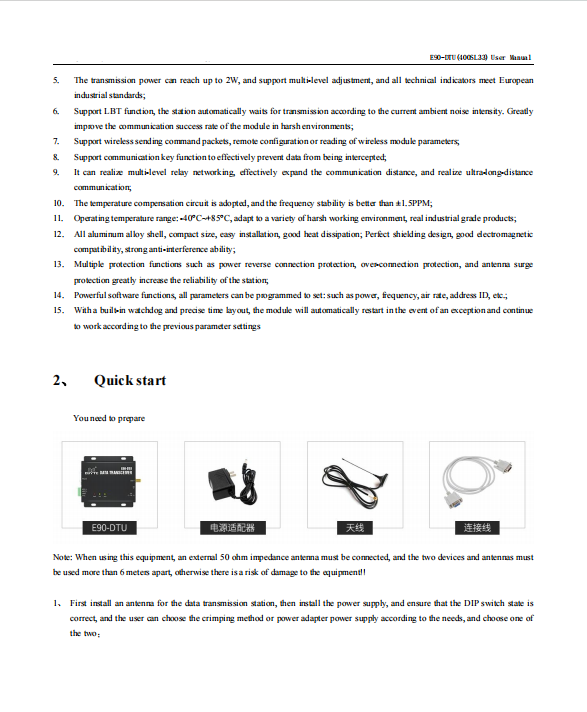

Product Data Book：
For more product information, please download the PDF
