E90-DTU(400SL42) LoRa digital radio remote communication, SX1268 wireless data transmission station, RS485/RS232 relay network

E90-DTU(400SL42)

Model:E90-DTU(400SL42)

Manufacturer:EBYTE

Package:module

Detail

Product Descriptions

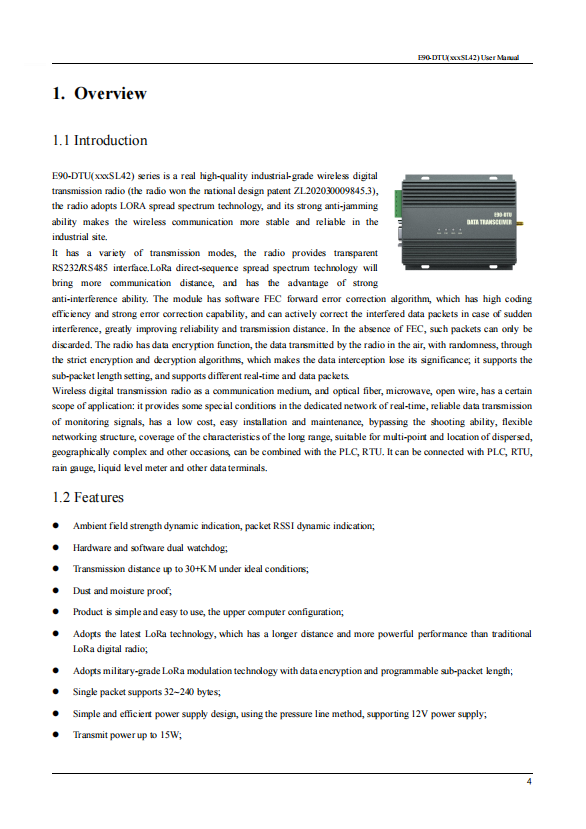

E90-DTU(xxxSL42) series is a real high-quality industrial-grade wireless digital transmission radio (the radio won the national design patent ZL202030009845.3), the radio adopts LORA spread spectrum technology, and its strong anti-jamming

ability makes the wireless communication more stable and reliable in the industrial site.


It has a variety of transmission modes, the radio provides transparent RS232/RS485 interface.LoRa direct-sequence spread spectrum technology will bring more communication distance, and has the advantage of strong anti-interference ability. The module has software FEC forward error correction algorithm, which has high coding efficiency and strong error correction capability, and can actively correct the interfered data packets in case of sudden interference, greatly improving reliability and  transmission distance. In the absence of FEC, such packets can only be discarded. The radio has data encryption function, the data transmitted by the radio in the air, with randomness, through the strict encryption and decryption algorithms, which makes the data interception lose its significance; it supports the sub-packet length setting, and supports different real-time and data packets. Wireless digital transmission radio as a communication medium, and optical fiber, microwave, open wire, has a certain scope of application: it provides some special conditions in the dedicated network of real-time, reliable data transmission of monitoring signals, has a low cost, easy installation and maintenance, bypassing the shooting ability, flexible networking structure, coverage of the characteristics of the long range, suitable for multi-point and location of dispersed, geographically complex and other occasions, can be combined with the PLC, RTU. It can be connected with PLC, RTU, rain gauge, liquid level meter and other data terminals.


Product Features


 Ambient field strength dynamic indication, packet RSSI dynamic indication;

 Hardware and software dual watchdog;

 Transmission distance up to 30+KM under ideal conditions;

 Dust and moisture proof;

 Product is simple and easy to use, the upper computer configuration;

 Adopts the latest LoRa technology, which has a longer distance and more powerful performance than traditional LoRa digital radio;

 Adopts military-grade LoRa modulation technology with data encryption and programmable sub-packet length;

 Single packet supports 32~240 bytes;

 Simple and efficient power supply design, using the pressure line method, supporting 12V power supply;

 Transmit power up to 15W;

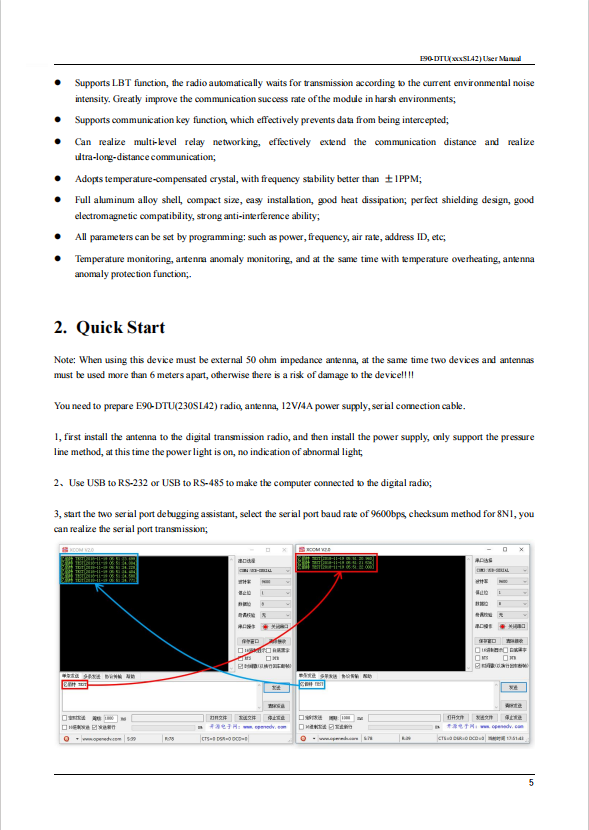

 Supports LBT function, the radio automatically waits for transmission according to the current environmental noise intensity. Greatly improve the communication success rate of the module in harsh environments;

 Supports communication key function, which effectively prevents data from being intercepted;

 Can realize multi-level relay networking, effectively extend the communication distance and realize ultra-long-distance communication;

 Adopts temperature-compensated crystal, with frequency stability better than ±1PPM;

 Full aluminum alloy shell, compact size, easy installation, good heat dissipation; perfect shielding design, good electromagnetic compatibility, strong anti-interference ability;

 All parameters can be set by programming: such as power, frequency, air rate, address ID, etc;

 Temperature monitoring, antenna anomaly monitoring, and at the same time with temperature overheating, antenna anomaly protection function;.


Specifications


Attribute Attribute value Notes
ANSM-Part# ANSM-E90-DTU(400SL42)

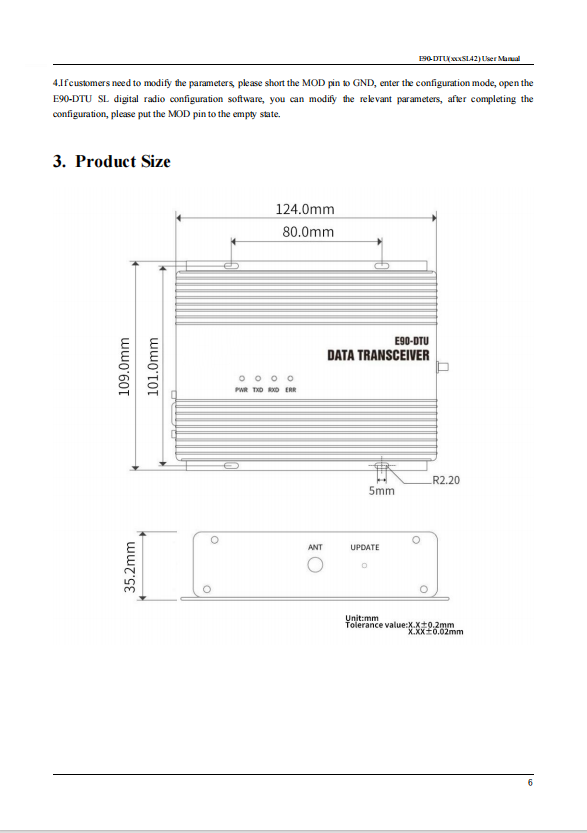

Product Size 124*109.1*35.2mm See installation dimensions for details
product weight 425g Weight tolerance 5g
Operating temperature -40℃~+85℃ Meet the needs of industrial use
Antenna Impedance 50Ω Standard 50Ω characteristic impedance
voltage range 12±1VDC It is recommended to support instantaneous current 4A
Communication Interface RS232/RS485 Standard DB9 socket/5.08 terminal blocks
Baud rate Factory default 9600 Baud rate range 1200~115200
Address code Factory default 0 A total of 65536 address codes can be set
Carrier frequency band (MHz) 410~493 Default 433.125MHz
Transmission power (dBm) 41.5土0.5dBm
Communication distance (km) 30+
Air speed (kbps) 0.3~62.5 Factory default 2.4kbps
