Product Descriptions

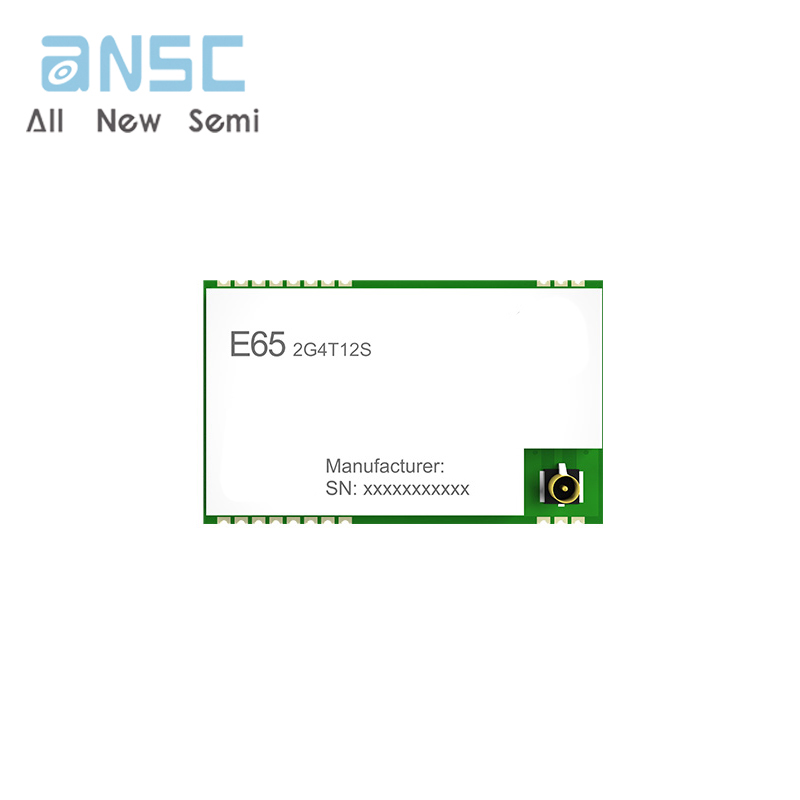

E65-2G4T12S is a 2.4GHz radio frequency wireless transceiver serial moduleproduct designed and produced by Ebyte. The product has the
characteristics ofpoint-to-point, high-speed continuous transmission, full-duplex communicationetc., with frequency hopping algorithm to
improve anti-interference ability, andis suitable for complex working environments.
It adopts small size SMD package, and the transmitting power can reach12dbm. Full duplex continuous transmission, support up to 3 Mbps
serial portbaud rate, with the product hardware flow control, can realize the transmissionof big data or files.
The design of dual antenna is optional (lPEX / stamp hole), which is convenient for user's secondary development and integration.
Product Features
• It supports bidirectional big data and file transmission,
• It supports ATcommand configuration,
• It supports hardware flow control.
• It supports up to 3mbps serial port baud rate.
• Air rate 1 ~ 3mbps adaptive,
• It supports communication distance up to 800 m.
• It supports point to point wireless communication,
• It supports ISM 2.4GHz frequency;
• It supports 3.6V power supply, more than 3 3V power supply can ensure the best performance.
• Industry standard design, support long-term use at -40~85 °C.
• Stamp hole / IPEX antenna interface.
Product Application
• Smart home and industrial sensors, etc..
• Security system, positioning system;
• Wireless remote control, UAV
• Wireless game remote control
• Medical health products,
• Wireless voice, wireless headset,
• Application in the automotive industry
Specifications
Attribute | Attribute value | Notes |
ANSM-Part# | ANSM-E65-2G4T12S | |
Distance (m) | 800 | - |
TX packet length | Continuous transmission | Continuous transmission does not limit packetlength, pay attention to flow control and specificbaud rate |
Communication interface | UART serial port | See pin description for details |
Packaging | SMD | See dimension description for details |
Size (mm) | 28.7 * 17.5 | Length * width |
RF interface | IPEX/Stamp hole | The equivalent impedance is about 50 Ω |
Working frequency band (MHz) | 2400-2480 | Support ISM frequency band |
Transmission power (dBm) | 12 | |
Received current (mA) | 48 | |
Air speed (bps) | 1.2k~3M | Default 115.2kbps |
Working voltage (v) | 2.3-3.6 | ≥3.3V ensures output power |
Emission current (mA) | 49 | |
Receiving sensitivity (dBm) | -95 | |
Working temperature (C) | -40~+85 | Industrial grade design |
Communication level (V) | 3.3 | There is a risk of burning out when using a 5V level |
