Product Descriptions
E34 (2G4H27D)is a 500mW wireless transceiver module, whichoperates at 2.4-2.518GHz. The outstanding advantages ofthis moduleis concentrated power densities, long transmission range, automaticfrequency hopping and TTL level, compatible with
3.3V and 5VWith auto frequency hopping communication, the module has agood anti-interference ability with low latency, even if there are somefequency interference, it still can communicate on the undisturbedfrequency point.
Product Features
• Support automatic frequency hopping, greatly improve communication anti-interference ability;
• Support fixed frequency communication, fast transmission speed and low latency.
• Support automatic packet retransmission after packet loss,
• Support fixed-point transmission, easy to start network communication.
• Built-in PA+LNA with 500mW power, communication distance tested is up to 5km.
• It works at ISM 2.4GHz:
• Air data rate:250k~2Mbps;
• With advanced GFSK modulation;Support 3 3V~5.5V power supply, power supply over 5.0 V can guarantee the best performance;
• Industrial grade standard design, support -40 ~ 85 °C for working over a long time;
• With SMA-K connector, easy connection ofIPEX cable or external antenna.
Product Applications
• Home security alarm and remote keyless entry;
• Smart home and industrial sensors;
• Wireless alarm security system;
• Building automation solutions;
• Wireless industrial-grade remote control ,
• Health care products;
• Advanced Meter Reading Architecture(AM);
• Automotive industry applications.
Specifications
Attribute | Attribute value | Notes |
ANSM-Part# | ANSM-E34-2G4H27D | |
Working frequency | 2400~2518 MHz | Default: 2400MHz |
Transmitting power | 27 dBm | About 500mW |
Receiving sensitivity | -102 dBm | Air data rate: 250kbps |
Air data rate | 250k~2Mbps | Default: 250kbps |
Test distance | 5000m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,air data rate: 250kbps |
Size | 21 * 36 mm | Without SMA |
Antenna type | SMA-K | |
Communication interface | UART | Baud rate: 1200~115200, default: 9600 |
Package | DIP | |
Buffer | 256 bytes buffer | Automatically sub-packaging with 27 bytes per package |
Power supply voltage (V) | 2.3~5.5 | ≥5V ensures output power |
Emission current (mA) | 400 | Instantaneous power consumption |

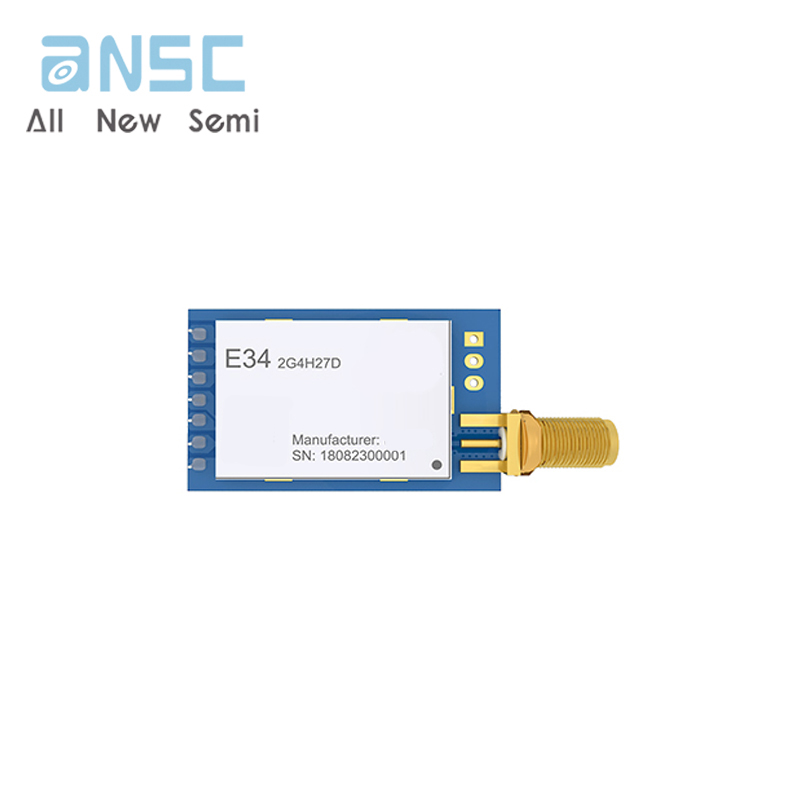

Actual product photos
