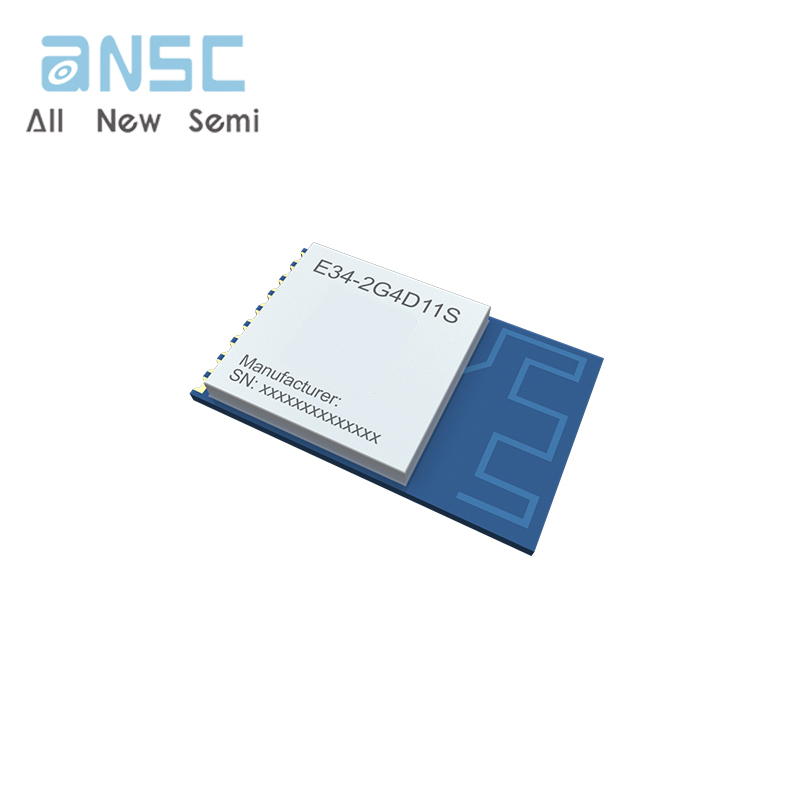

Hot selling E34-2G4D11S automatic frequency Serial port data receiving and transmit full duplex wireless 2.4GHz module

E34-2G4D11S

Model:E34-2G4D11S

Manufacturer:EBYTE

Package:module

Detail

Product Descriptions


E34-2G4D11S is a wireless data transmission module that supports full-duplex communication, working in the 2.4~2.518GHz frequency band, TTL level output, using serial port for data transceiver and transmission, reducing none The threshold of

line application. The typical feature of E34-2G4D11S is high-speed transmission, which can achieve full-duplex characteristics (two-way simultaneous sending and receiving) under a variety of baud rates, unlimited packet length, support uninterrupted

transmission, and support file transfer. The module has data encryption and compression capabilities. The data transmitted by the module over the air is random, and the data interception is meaningless through a rigorous encryption and decryption

algorithm. The data compression function has the probability of reducing the transmission time, reducing the probability of interference, and improving reliability and transmission efficiency.


Product Features


• Supports full-duplex feature at baud rate up to 57600 (simultaneous sending and receiving in both directions);

• Support uninterrupted transmission, unlimited packet length;

• Support file transfer;

• Maximum transmit power 11dBm, software multi-stage adjustable;

• Supports worldwide license-free ISM 2 4GHz band;

• The air rate automatically adapts to the baud rate;

• Support advanced GFSK modulation mode;

• Support low power mode for battery applications;

• Support 2.5~3.6 V power supply, greater than 3.3V power supply can ensure the best performance;

• Industrial standard design, support -40 ~ +85 °C at long-term use;

• PCB onboard antenna, built-in antenna no need for external antenna.


Product Applications


• Wearable devices;

• Smart home and industrial sensors, etc.;

• Security system, positioning system;

• Wireless remote control, drone;

• Wireless gaming remote control;

• Healthcare products;

• Wireless voice, wireless headphones;

• Automotive applications.


Specifications


AttributeAttribute valueNotes
ANSM-Part#ANSM-E34-2G4D11S
The reference distance130mSunny and open environment, antenna height of 2.5 meters, air speed 250kbps
Subcontracting29 BtyeMaximum length of a single send
Cache capacity2048 BtyeUnlimited package length
Modulation modeGFSK
Communication interfaceUART serialTTL level
Encapsulation modeSMD
Interface mode1.27mm
Dimensions12* 1 9mm
Antenna interfacePCB onboardThe equivalent impedance is approximately 50Ω
Working frequency2400~2518 MHzSupport ISM band
Working voltage (V)2.5~3.6≥3.3V ensures output power
Transmitting power11 dBm
Communication level (V)3.3
Emission current (mA)50Instantaneous power consumption
Received current (mA)23


Actual product photos


E34-2G4D11S


Product Data Book:



For more product information, please download the PDF
