Product Descriptions

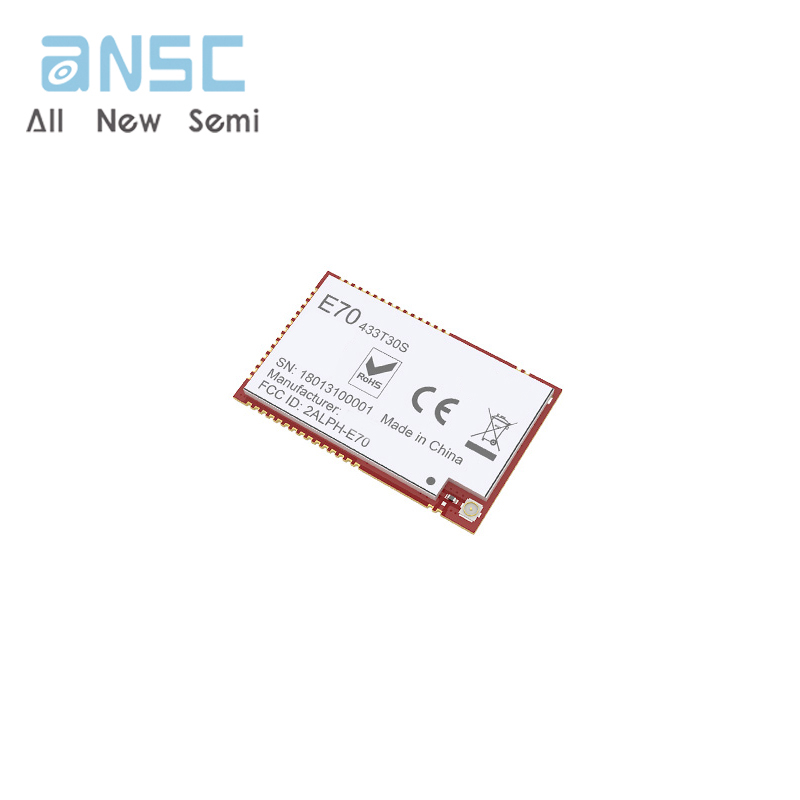

E70-433TxxSx wireless transceiver modules, operating at431~446.5MHz (Default: 433MHz), is based on originally imported CC1310 from TI, with TTL level output, 3.3V IO port voltage,24MHz industrial high-precision low-temperature drift crystal
vibration; Ensure its industrial ability and stability. The module features FEC (Forward Error Correction) algorithm, which ensure its high coding efficiency & good correction performance. In the case of sudden interference, it can correct the interfered
data packets proactively, so that the reliability & transmission range are improved correspondingly. But without FEC, those data packets can only be dropped. Factory has built-in low power multifunctional wireless serial program, users can also
according to the need for secondary development.
Product Features
• Communication distance tested is up to 1.5/6km
• Maximum transmission power of 1W, software multi-level adjustable;
• Support the global license-free ISM 433MHz band;
• Support air date rate of 2.5kbps~168kbps;
• Low power consumption for battery supplied applications;
• Can achieve up to 115200bps continuous frame unlimited-packet length transmission
• E70-433T30S Support 2.6 ~ 5.5V power supply, more than 5V power supply to ensure the best performance;
• E70-433T14S/S2 support 2.2 ~ 3.8V power supply, more than 3.3V power supply to ensure the best performance;
• Industrial grade standard design, support -40 ~ 85 °C for working over a long time;
• IPEX access point, stamp hole is optional, facilitate user secondary development, facilitate integration.
Product Applications
• Home security alarm and remote keyless entry;
• Smart home and industrial sensors;
• Wireless alarm security system;
• Building automation solutions;
• Wireless industrial-grade remote control;
• Health care products;
Specifications
Attribute | Attribute value | Notes |
ANSM-Part# | ANSM-E70-433T30S | |
Working frequency | 431~446.5 MHz | Default: 433MHz (24MHz oscillator) |
Transmitting power | 17~30 dBm | Default: 30dBm(About 1W) |
Receiving sensitivity | -110 dBm | Air data rate: 50kbps |
Air data rate | 2.5k~168kbps | Default: 2.5kbps |
Test distance | 6000m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,air data rate: 2.5kbps |
IC | CC1310F128RGZ | |
FLASH | 128 KB | |
RAM | 20 KB | |
Core | Cortex-M3(MCU)+Cortex-M0(RF) | |
Size | 24 * 38.5 mm | Without SMA |
Antenna type | IPEX / Stamp hole | |
Communication interface | UART | Baud rate: 1200~115200, default: 9600 |
Package | SMD | |
Buffer | 2048 bytes buffer | Defined by user |
Power supply voltage (V) | 2.6~5.5 | Suggest using 5V |
