Product Descriptions

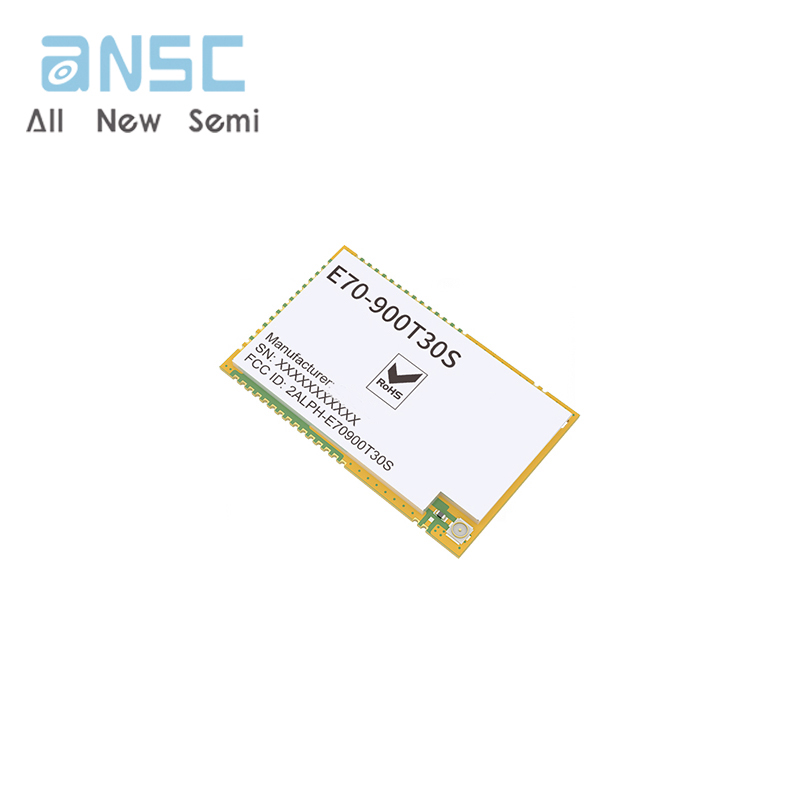

E70-900TxxSx wireless transceiver modules, operating at861~876.5,907~922.5MHz (Default: 868/915MHz), is based on originally imported CC1310 from TI, with TTL level output, 3.3V IO port voltage,24MHz industrial high-precision low-temperature
drift crystal vibration; Ensure its industrial ability and stability. The module features FEC (Forward Error Correction) algorithm, which ensure its high coding efficiency & good correction performance. In the case of sudden interference, it can correct the
interfered data packets proactively, so that the reliability & transmission range are improved correspondingly. But without FEC, those data packets can only be dropped. Factory has built-in low power multifunctional wireless serial program, users can
also according to the need for secondary development.
Product Features
• Communication distance tested is up to 1.5/6km
• Maximum transmission power of 14/30dBm, software multi-level adjustable;
• Support the global license-free ISM 868/915MHz band;
• Support air date rate of 2.5kbps~168kbps;
• Low power consumption for battery supplied applications;
• Can achieve up to 115200bps continuous frame unlimited-packet length transmission
• E70-900T30S Support 2.6V ~ 5.5V power supply, 5V power supply to ensure the best performance;
• E70-900T14S/S2 Support 2.2 ~ 3.8V power supply, more than 3.3V power supply to ensure the best performance;
• Industrial grade standard design, support -40 ~ 85 °C for working over a long time;
• IPEX access point, stamp hole is optional, facilitate user secondary development, facilitate integration.
Product Applications
• Home security alarm and remote keyless entry;
• Smart home and industrial sensors;
• Wireless alarm security system;
• Building automation solutions;
• Wireless industrial-grade remote control;
• Health care products;
• Advanced Meter Reading Architecture(AMI);
• Automotive industry applications.
Specifications
Attribute | Attribute value | Notes |
ANSM-Part# | ANSM-E70-900T30S | |
Distance for reference | 6000m | Test condition:clear and open area, antenna gain: 5dBi,antenna height: 2.5m,air data rate: 2.5kbps |
TX length | Transmission mode specification | See transmission mode for details |
Buffer | 2048Byte | - |
Modulation | GFSK | - |
Communication interface | UART | TTL level |
Package | SMD | - |
Operating Frequency Band(MHz) | 861~922.5 | Support ISM band |
Transmitting power(dBm) | 30 | - |
Air rate(bps) | 2.5k~168k | User-programmed control |
Working voltage (V) | 2.6~5.5 | ≥5.5V ensures output power |
Emission current (mA) | 610 | Instantaneous power consumption |
Antenna | IPEX/Stamp hole | 50 ohm impedance |
Size | 24*38.5 mm | - |
Sleep current (uA) | 4 | Software shutdown |
