Hot selling product original stock E70-900T14S2 IPEX/Stamp Hole Ti 868/915 Mhz Transceiver Receiver TI CC1310 SoC Wireless Module

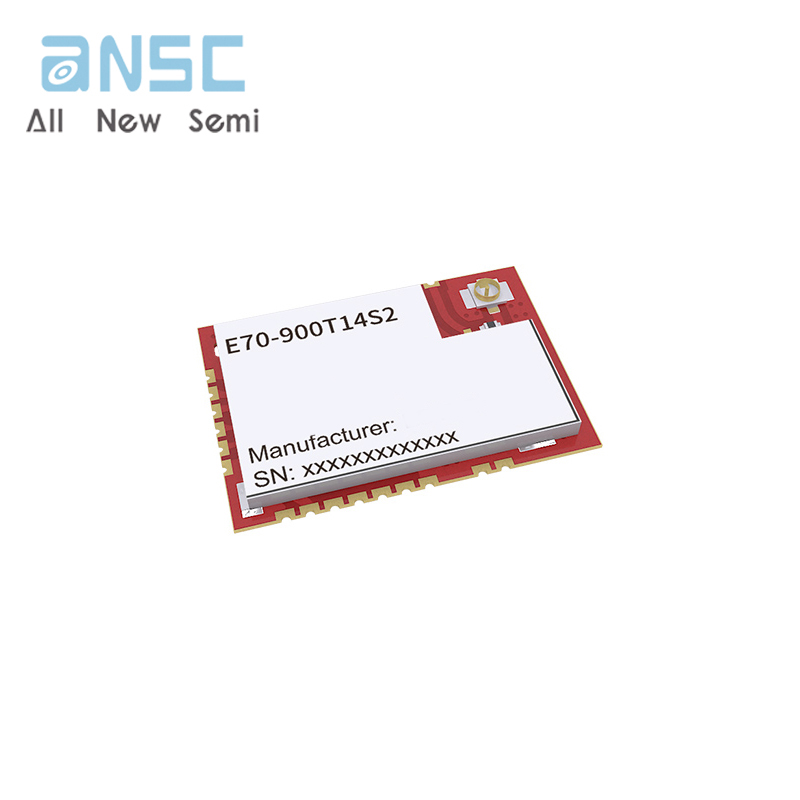

E70-900T14S2

Model:E70-900T14S2

Manufacturer:EBYTE

Package:module

Detail

Product Descriptions


E70-900TxxSx wireless transceiver modules, operating at861~876.5,907~922.5MHz (Default: 868/915MHz), is based on originally imported CC1310 from TI, with TTL level output, 3.3V IO port voltage,24MHz industrial high-precision low-temperature

drift crystal vibration; Ensure its industrial ability and stability. The module features FEC (Forward Error Correction) algorithm, which ensure its high coding efficiency & good correction performance. In the case of sudden interference, it can correct the

interfered data packets proactively, so that the reliability & transmission range are improved correspondingly. But without FEC, those data packets can only be dropped. Factory has built-in low power multifunctional wireless serial program, users can

also according to the need for secondary development.


Product Features


• Communication distance tested is up to 1.5/6km

• Maximum transmission power of 14/30dBm, software multi-level adjustable;

• Support the global license-free ISM 868/915MHz band;

• Support air date rate of 2.5kbps~168kbps;

• Low power consumption for battery supplied applications;

• Can achieve up to 115200bps continuous frame unlimited-packet length transmission

• E70-900T30S Support 2.6V ~ 5.5V power supply, 5V power supply to ensure the best performance;

• E70-900T14S/S2 Support 2.2 ~ 3.8V power supply, more than 3.3V power supply to ensure the best performance;

• Industrial grade standard design, support -40 ~ 85 °C for working over a long time;

• IPEX access point, stamp hole is optional, facilitate user secondary development, facilitate integration.


Product Applications


• Home security alarm and remote keyless entry;

• Smart home and industrial sensors;

• Wireless alarm security system;

• Building automation solutions;

• Wireless industrial-grade remote control;

• Health care products;

• Advanced Meter Reading Architecture(AMI);

• Automotive industry applications.


Specifications


AttributeAttribute valueNotes
ANSM-Part#ANSM-E70-900T14S2
Distance for reference1500mTest condition:clear and open area, antenna gain: 5dBi,antenna height: 2.5m,air data rate: 2.5kbps
TX lengthTransmission mode specificationSee transmission mode for details
Buffer2048 Btye-
ModulationGFSK-
Communication interfaceUARTTTL level
PackageSMD-
ConnectorStamp holeSpacing of 1.27 mm
Size14*20 mm-
AntennaIPEX/Stamp hole50 ohm impedance
Operating Frequency Band(MHz)861~922.5Support ISM band
Transmitting power(dBm)14-
Air rate(bps)2.5k~168kUser-programmed control
Working voltage (V)2.2~3.8≥3.3V ensures output power
Emission current (mA)36Instantaneous power consumption
Sleep current (uA)1.2Software shutdown


Actual product photos


E70-900T14S2


Product Data Book:



For more product information, please download the PDF
