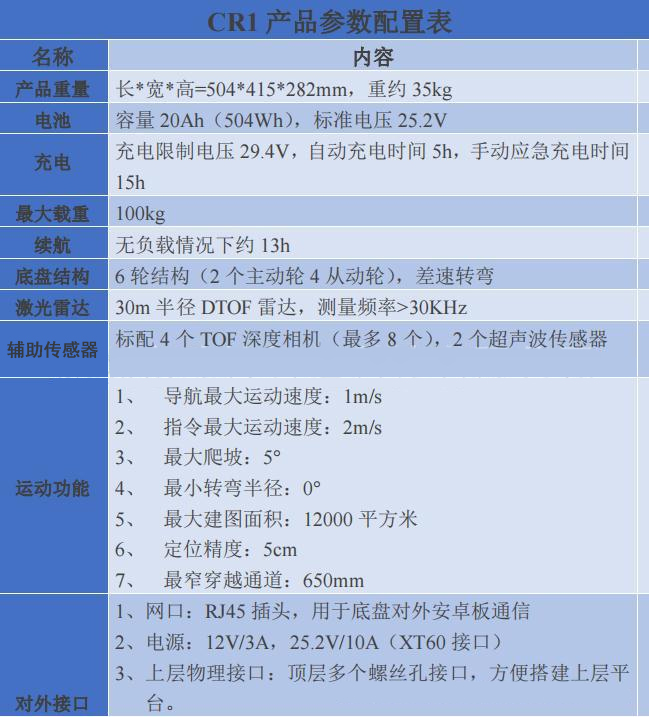

Specifications

Main features:

Standard 30 meter radius DTOF LiDAR

Equipped with a charging station, capable of automatic charging and a manual charging port

Remote control right hand map creation: multiple map functions, can be freely switched

Map Editing and Virtual Wall Function Technology Co., Ltd

Multi sensor fusion obstacle avoidance

Maximum load capacity 100kg

Timed task function with specified dates

Dockable with elevator control function, the robot can take the elevator by itself

Regarding secondary development:

The robot provides interface log0 customization function, which can be further developed through serial port to achieve functions such as remote control, calling to fixed locations, and remote control. You can set all possible tasks and exercise routes in advance, and use them directly afterwards.

Chassis usage precautions:

The machine must not be immersed in water, put into fire, or placed in a high-temperature environment. The manufacturer is not responsible for any losses caused by illegal operations.

In case of emergency, immediately press the red emergency stop switch behind the chassis to brake.

Robots should operate on solid and flat surfaces. It is not recommended to use them on soft or uneven roads, carpets, or outdoors.

In environments with a small amount of glass, virtual walls can be set up in areas with glass on the map (including areas where moving glass doors pass through), or laser opaque materials can be pasted below 230mm above the ground on the glass

When using in a scene with large areas of glass, it is necessary to stick laser material below 230mm above the ground for most of the glass, otherwise the laser will pass through the glass completely, which will result in the inability to create a map

In an environment with glass, it is strictly prohibited to use the sports navigation function without sticking non transparent materials or setting up virtual walls.

In environments with cliffs (such as elevator staircases, openings), it is strictly prohibited to use the motion navigation function without setting up virtual walls or importing virtual walls

Avoid narrow obstacles in the environment, such as lines, suspension lines, thin tables, chair legs, and sharp objects that protrude.
