Product Details
BYG22D-E3/TR Overview
A reverse voltage of 200V is reasonable.This device has an average rectified current of 2A volts.Forward current is allowed to reach a value of zero.Surge currents can be used up to 35A.The maximum output current is 2A.Datasheets indicate that the peak reverse is 1μA.
BYG22D-E3/TR Features
an average rectified current of 2A volts
2A is the maximum value
the peak reverse is 1μA
BYG22D-E3/TR Applications
There are a lot of Vishay Semiconductor Diodes Division
BYG22D-E3/TR applications of single-phase diode rectifier.
DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
Product Description
TYPE | DESCRIPTION |
|---|---|
Category | Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
Mfr | Vishay General Semiconductor - Diodes Division |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Technology | Avalanche |
Voltage - DC Reverse (Vr) (Max) | 200 V |
Current - Average Rectified (Io) | 2A |
Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 2 A |
Speed | Fast Recovery =< 500ns, > 200mA (Io) |
Reverse Recovery Time (trr) | 25 ns |
Current - Reverse Leakage @ Vr | 1 µA @ 200 V |
Capacitance @ Vr, F | - |
Mounting Type | Surface Mount |
Package / Case | DO-214AC, SMA |
Supplier Device Package | DO-214AC (SMA) |
Operating Temperature - Junction | -55°C ~ 150°C |
Base Product Number | BYG22 |

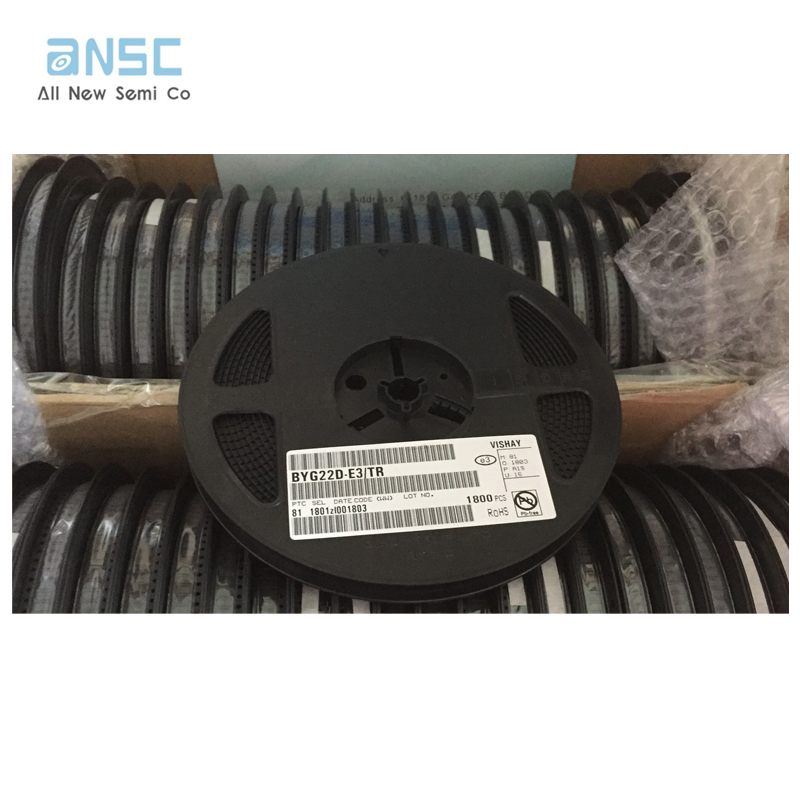

Actual image of the product

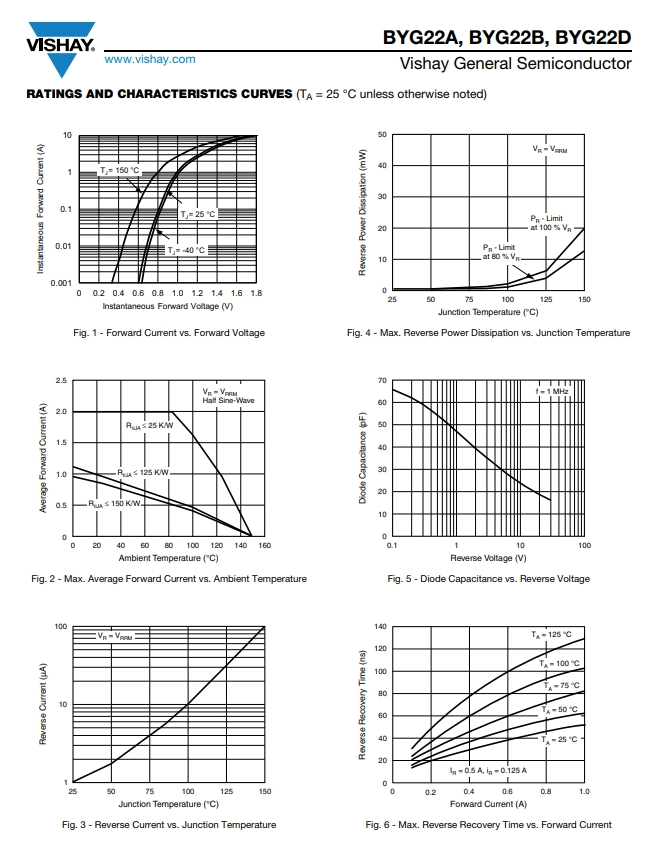

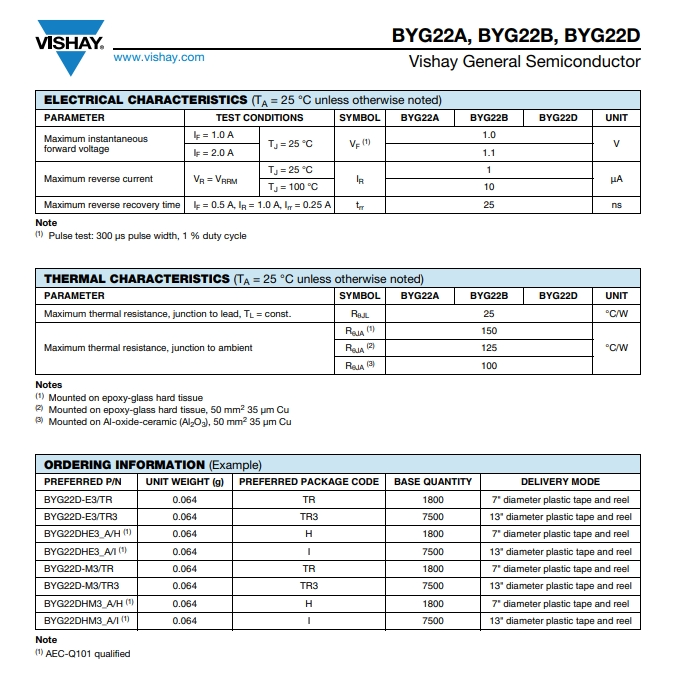

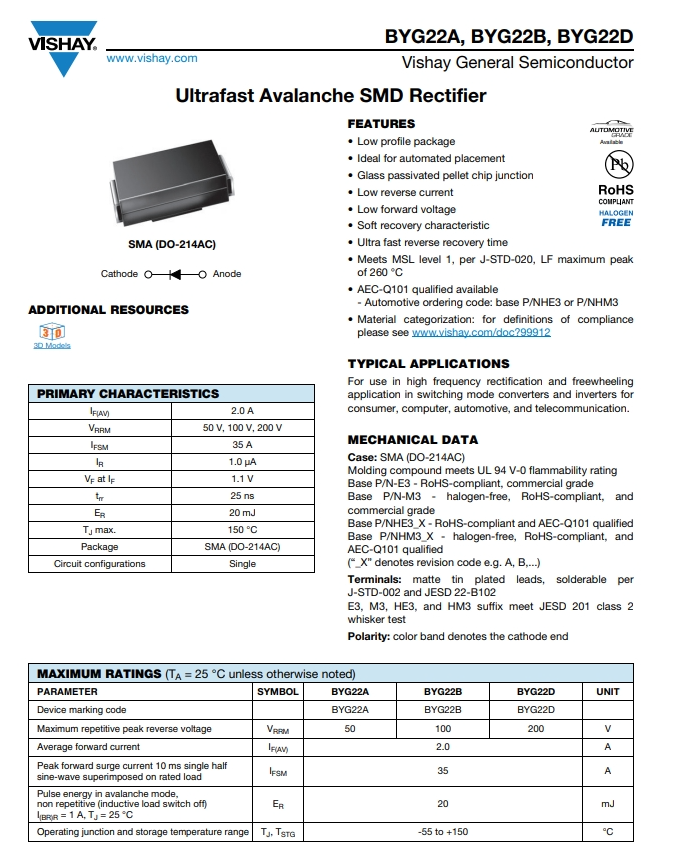

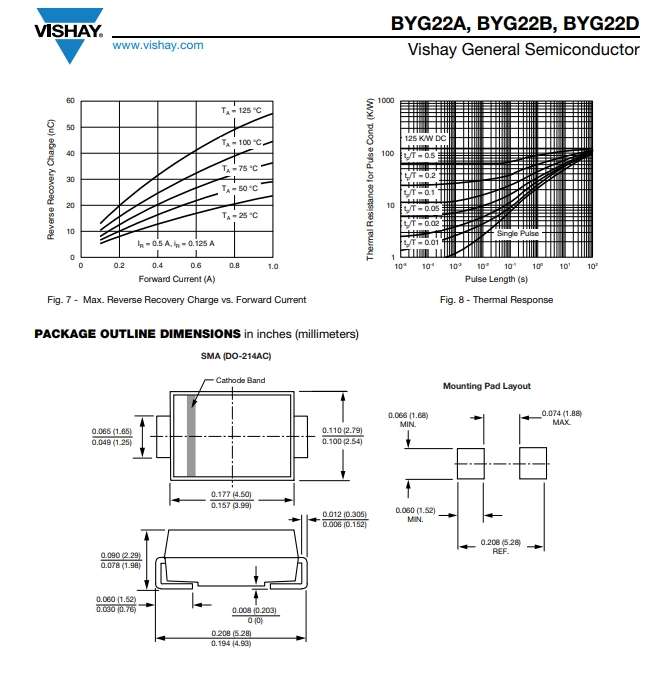

Product datasheet
For more information, please download
