Product Description

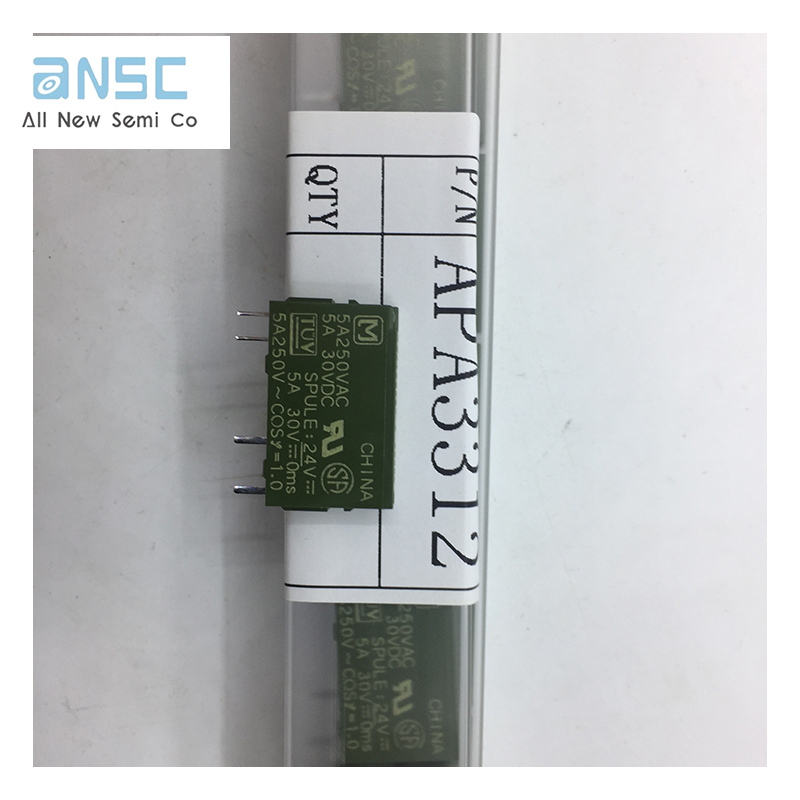

ANSC PART# | ANSC- APA3312 |
Part# | APA3312 |
Type： | / |
Manufactor | Panasonic Electronic Components |
DC | new |
Specifications
| Item | Specifications |
|---|---|
| Contact arrangement | 1 Form A |
| Contact shape | Twin |
| Max. switching voltage | 250 V AC, 30 V DC |
| Max. switching current | 5 A (AC, DC) |
| Min. switching load (reference value) | 100 µA 100 mV DC |
| Contact material | Au-clad AgNi type |
| Mechanical life | Min. 20x106 ope. (switching frequency: at 180 times/min) |
| Electrical life | [Resistive load, switching frequency: at 20 times/min] Min. 100x103 ope. 3 A 250 V AC, 30 V DC Min. 50x103 ope. 5 A 250 V AC, 30 V DC) |
| Dielectric strength (initial) : Between open contacts | 1,000 Vrms for 1 min (detection current: 10 mA) |
| Dielectric strength (initial) : Between contact and coil | 2,000 Vrms for 1 min (detection current: 10 mA) |
| Conditions | Ambient temperature: -40 to +70°C Humidity: 5 to 85% RH (Avoid icing and condensation) |
