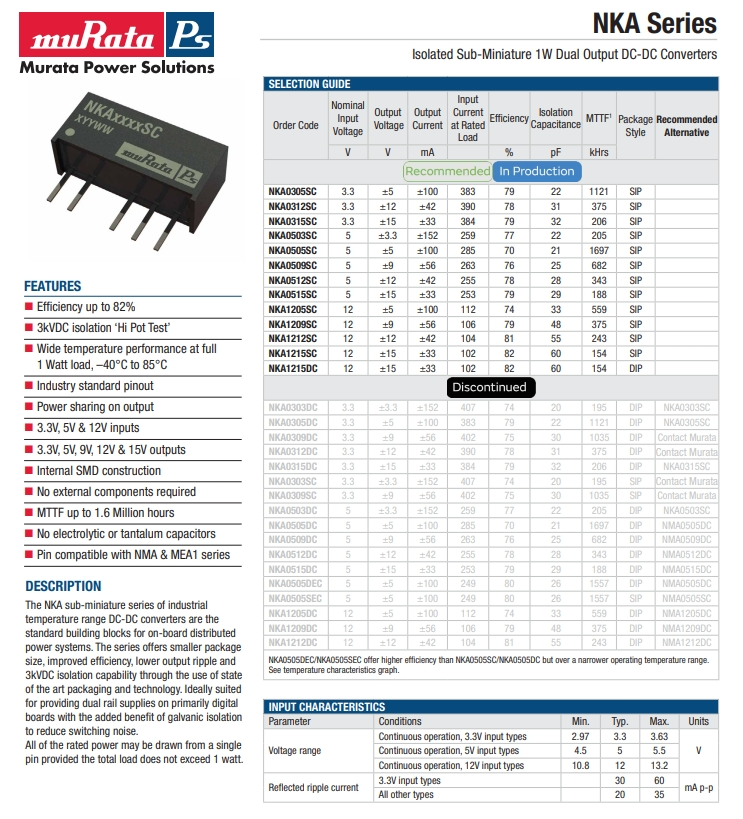

DESCRIPTION The NKA sub-miniature series of industrial temperature range DC-DC converters are the standard building blocks for on-board distributed power systems. The series offers smaller package size, improved efficiency, lower output ripple and 3kVDC isolation capability through the use of state of the art packaging and technology. Ideally suited for providing dual rail supplies on primarily digital boards with the added benefit of galvanic isolation to reduce switching noise. All of the rated power may be drawn from a single pin provided the total load does not exceed 1 watt. FEATURES ■ Efficiency up to 82% ■ 3kVDC Isolation ‘Hi Pot Test’ ■ Wide temperature performance at full 1 Watt load, –40°C to 85°C ■ Industry standard pinout ■ Power sharing on output ■ 3.3V, 5V & 12V Input ■ 3.3V, 5V, 9V, 12V and 15V output ■ Internal SMD construction ■ No external components required ■ MTTF up to 1.6 Million hours ■ No electrolytic or tantalum capacitors ■ Pin compatible with NMA & MEA1 series |
Product Description
| Type | Description |
| ANSC PART# | ANSC - NKA0509SC |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Original |
| Series | NKA (1W) |
| Packaging | Tube |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | -9V |
| Voltage - Output 3 | - |
| Current - Output (Max) | 56mA, 56mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature |
-40°C ~ 85°C |
| Efficiency | 76% |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module, 5 Leads |
| Size / Dimension | 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm) |
| Control Features | - |
| Base Product Number | NKA05 |
