Product Details

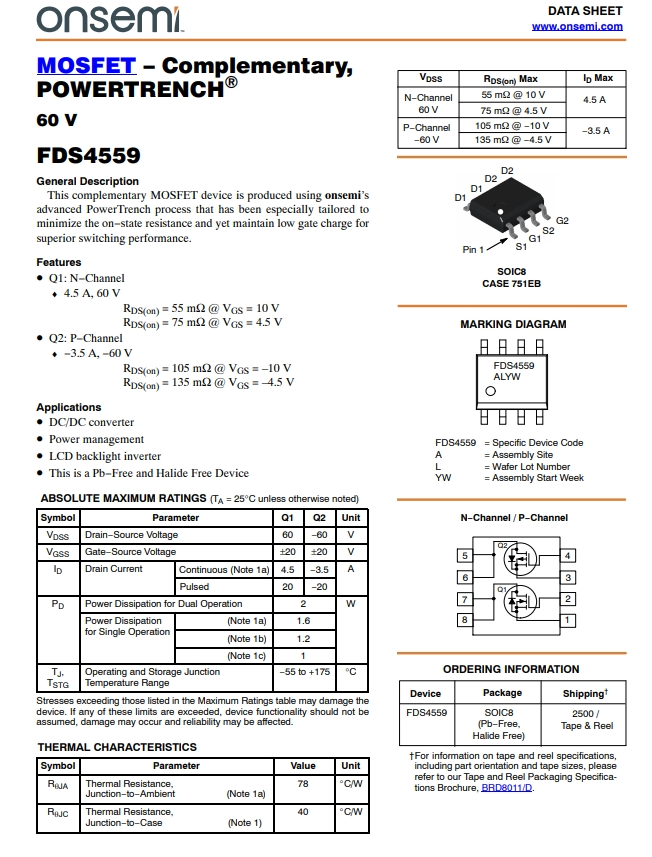

General Description
This complementary MOSFET device is produced using advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance.
Features
• Q1: N-Channel
4.5 A, 60 V
RDS(on) = 55 mΩ @ VGS = 10V
RDS(on) = 75 mΩ @ VGS = 4.5V
• Q2: P-Channel
–3.5 A, –60 V
RDS(on) = 105 mΩ @ VGS = –10V
RDS(on) = 135 mΩ @ VGS = –4.5V

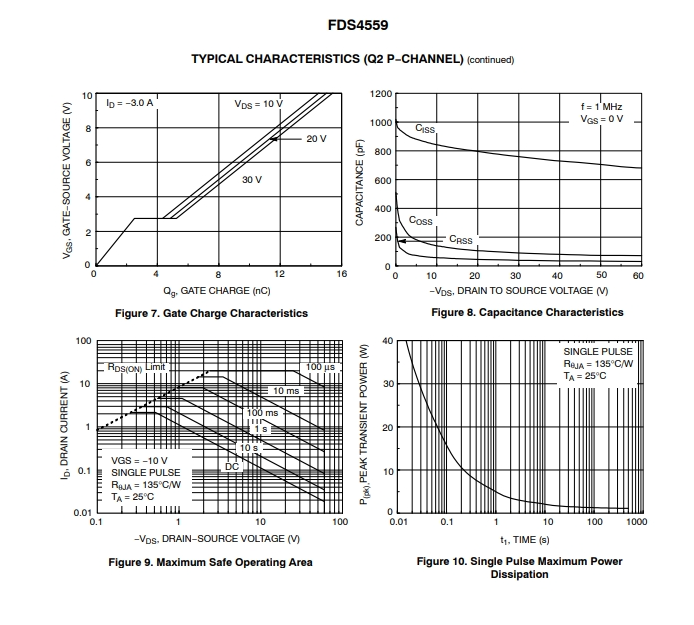

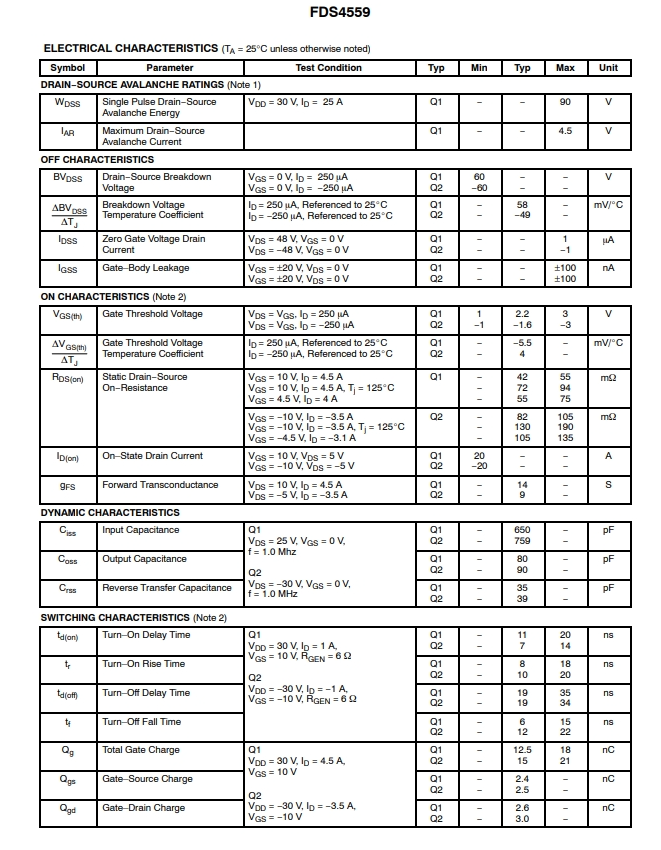

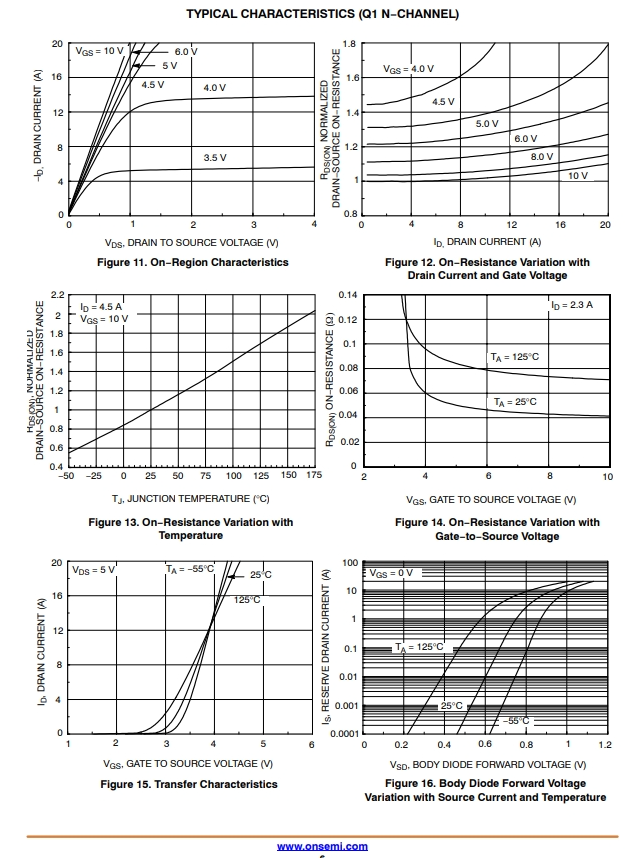

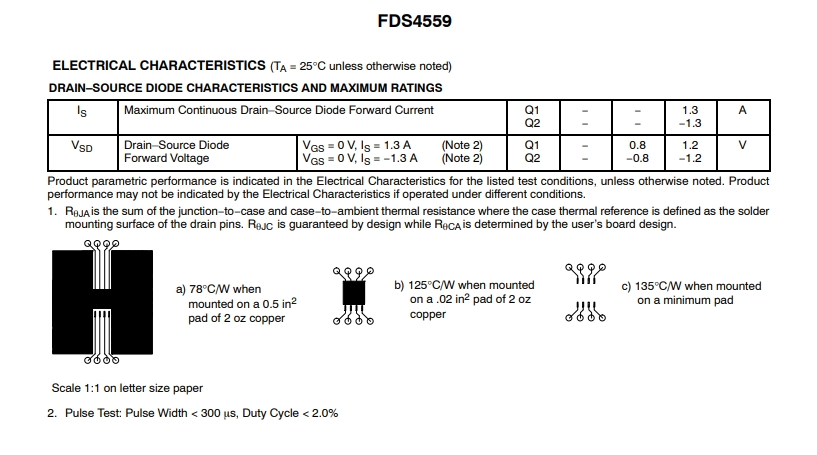

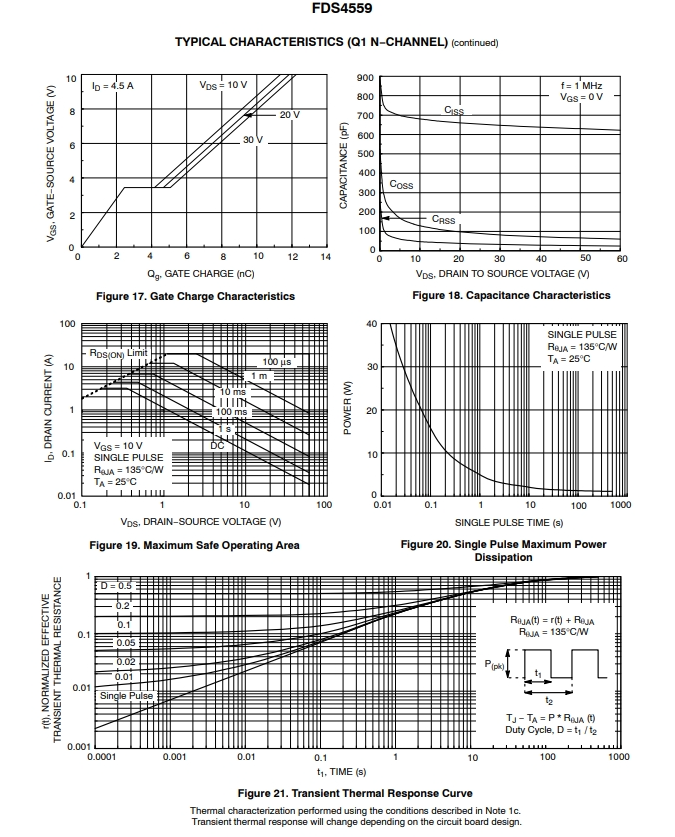

Product Description
| Type | Description |
| ANSC PART# | ANSC - FDS4559 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Manufacturer | Original |
| Series | PowerTrench® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V |
|
Current - Continuous Drain (Id) @ 25°C |
4.5A, 3.5A |
| Rds On (Max) @ Id, Vgs | 55mOhm @ 4.5A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 650pF @ 25V, 759pF @ 25V |
| Power - Max | 1W |
| Operating Temperature |
-55°C ~ 175°C (TJ) |

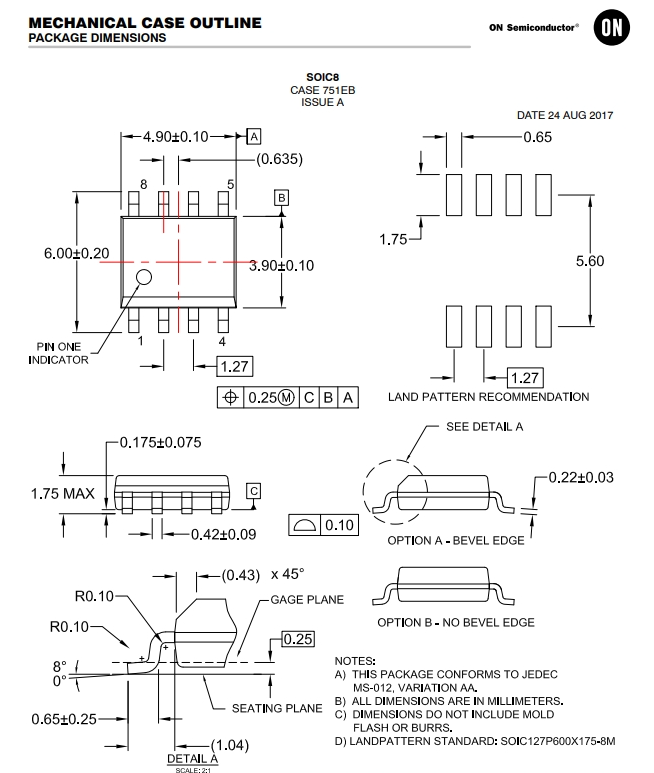

| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | FDS45 |

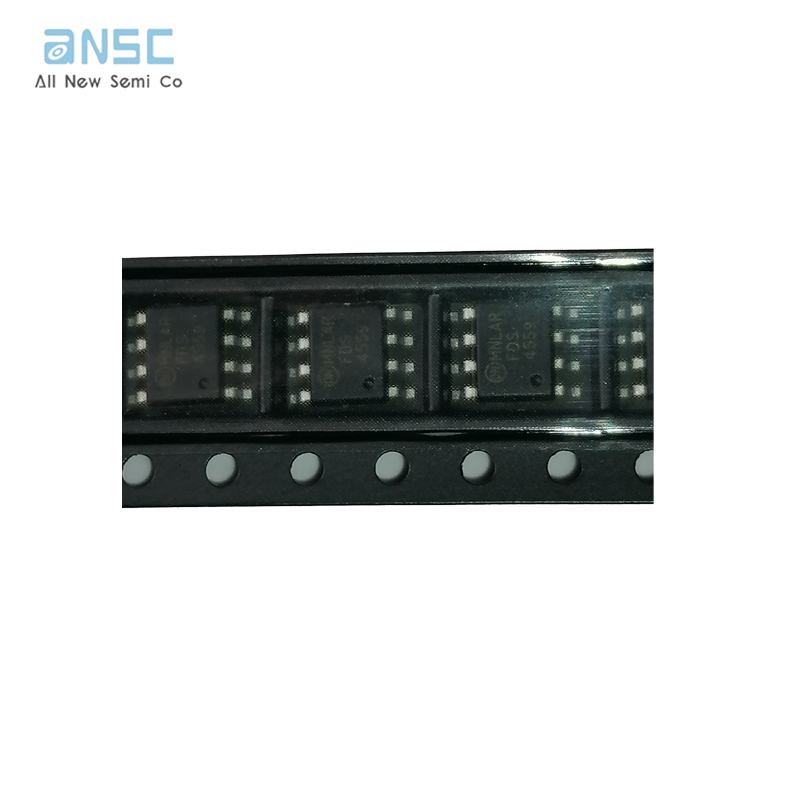

Actual image of the product
