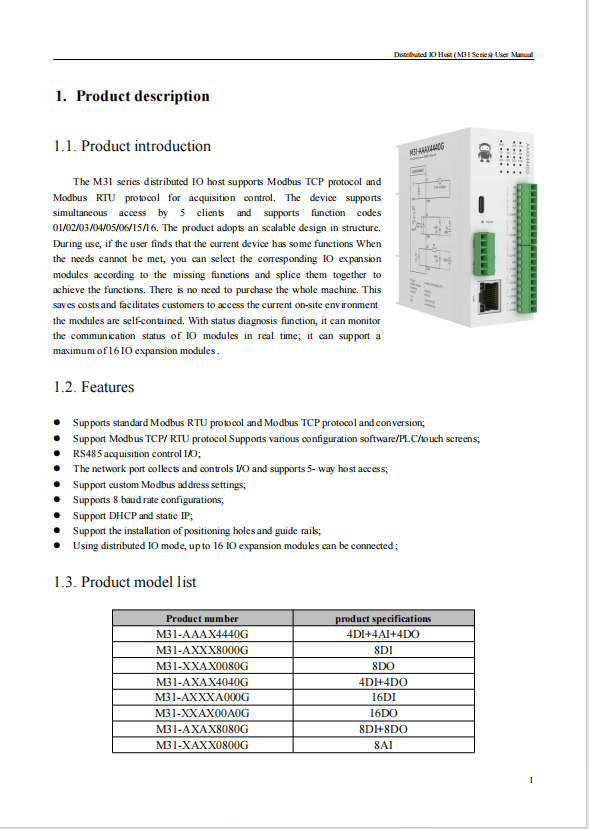

Product Descriptions

The M31 series distributed IO host supports Modbus TCP protocol and Modbus RTU protocol for acquisition control. The device supports simultaneous access by 5 clients and supports function codes 01/02/03/04/05/06/15/16. The product adopts an scalable design in structure. During use, if the user finds that the current device has some functions When the needs cannot be met, you can select the corresponding IO expansion modules according to the missing functions and splice them together to achieve the functions. There is no need to purchase the whole machine. This saves costs and facilitates customers to access the current on-site environment the modules are self-contained. With status diagnosis function, it can monitor the communication status of IO modules in real time; it can support a maximum of 16 IO expansion modules .

Product Features

 Supports standard Modbus RTU protocol and Modbus TCP protocol and conversion;

 Support Modbus TCP/ RTU protocol Supports various configuration software/PLC/touch screens;

 RS485 acquisition control I/O;

 The network port collects and controls I/O and supports 5- way host access;

 Support custom Modbus address settings;

 Supports 8 baud rate configurations;

 Support DHCP and static IP;

 Support the installation of positioning holes and guide rails;

 Using distributed IO mode, up to 16 IO expansion modules can be connected ;

Specifications

Actual product photos

Product Data Book：

For more product information, please download the PDF
