GXXAX00A0 16DO Distributed Remote IO Modules Analog/Switch Acquisition Modules Support Ethernet and RS485 dual control_Various types Modules

Product Descriptions

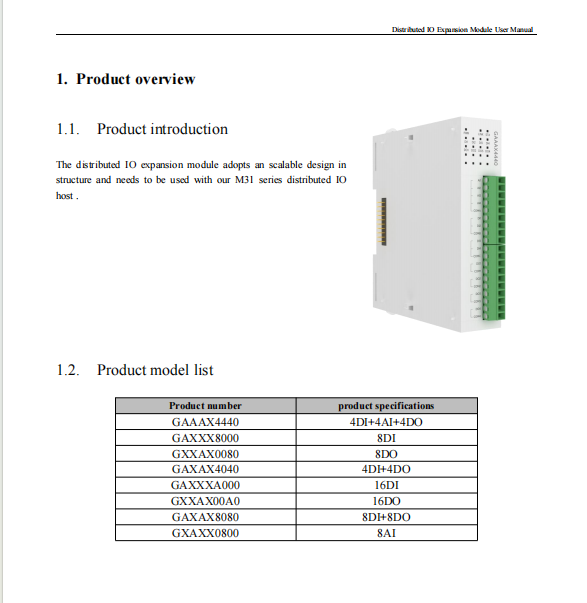

The distributed IO expansion module adopts an scalable design in structure and needs to be used with our M31 series distributed IO host .

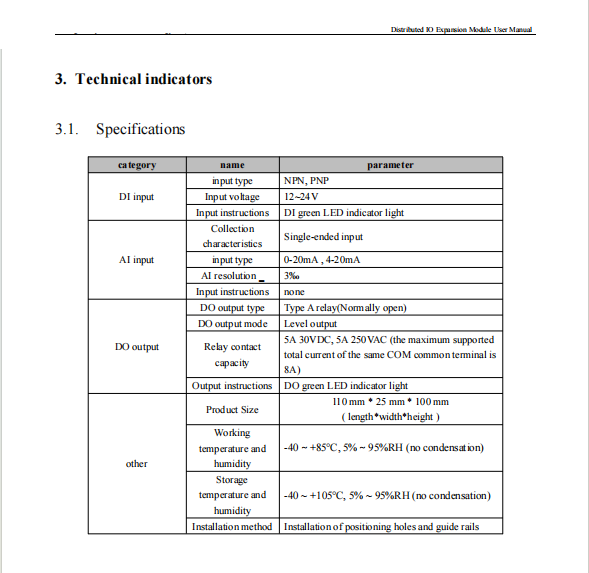

Attribute	Attribute value	Notes
ANSM-Part#	ANSM-GXXAX00A0
DI input	input type	NPN: PNP
	Input voltage	12-24V
	Input instructions	DI green LED indicator light
AI input	Collection characteristics	Single-ended input
	input type	0-20mA, 4-20mA
	AI resolution _	3%o
	Input instructions	none
DO output	DO output type	Type A relay(Normally open)
	DO output mode	Level output
	Relay contact capacity	5A 30VDC, 5A 250VA.C (the maximum supported total current of the same COM common terminal is 8A)
	Output instructions	DO green LED indicator light
Other	Product Size	110 mm * 25 mm * 100 mm (lengthwidthheight)
	Working temperature and humidity	-40 ~ +85°C： 5% ~ 95%RH (no condensation)
	Storage temperature and humidity	-40 〜+105℃; 5% 〜95%RH (no condensation)
	Installation method	Installation of positioning holes and guide rails

GXXAX00A0

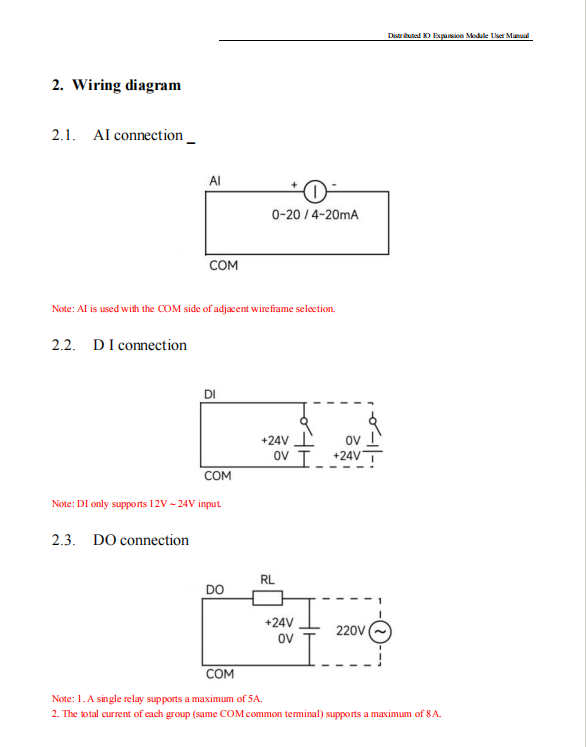

Product Data Book：

搜狗高速浏览器截图20240527100230

搜狗高速浏览器截图20240527100235

搜狗高速浏览器截图20240527100239

For more product information, please download the PDF

详情8.1

详情页3.1

详情5.1

详情6.1

详情9
