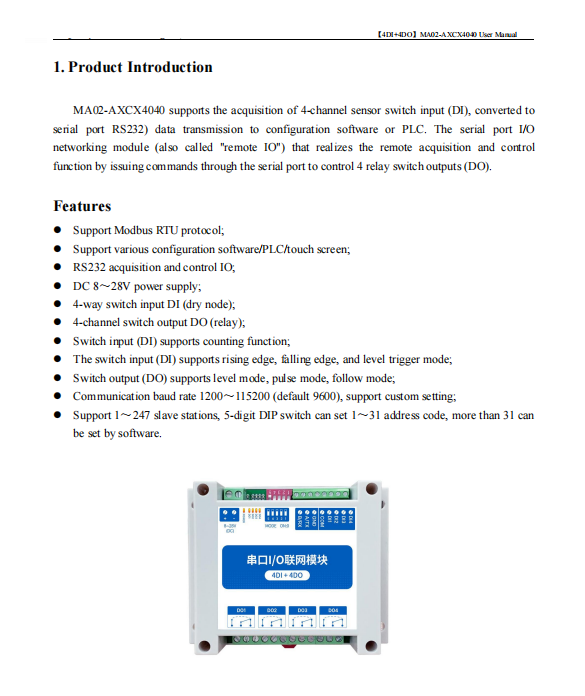

Product Descriptions

MA02-AXCX4040 supports the acquisition of 4-channel sensor switch input (DI), converted to serial port RS232) data transmission to configuration software or PLC. The serial port I/O networking module (also called "remote IO") that realizes the remote acquisition and control function by issuing commands through the serial port to control 4 relay switch outputs (DO).

Product Features

 Support Modbus RTU protocol;

 Support various configuration software/PLC/touch screen;

 RS232 acquisition and control IO;

 DC 8～28V power supply;

 4-way switch input DI (dry node);

 4-channel switch output DO (relay);

 Switch input (DI) supports counting function;

 The switch input (DI) supports rising edge, falling edge, and level trigger mode;

 Switch output (DO) supports level mode, pulse mode, follow mode;

 Communication baud rate 1200～115200 (default 9600), support custom setting;

 Support 1～247 slave stations, 5-digit DIP switch can set 1～31 address code, more than 31 can be set by software.

Specifications

Actual product photos

Product Data Book：

For more product information, please download the PDF
