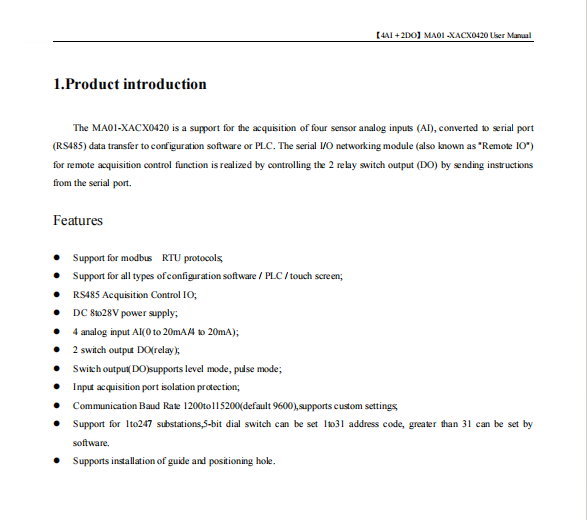

Product Descriptions

The MA01-XACX0420 is a support for the acquisition of four sensor analog inputs (AI), converted to serial port (RS485) data transfer to configuration software or PLC. The serial I/O networking module (also known as "Remote IO") for remote acquisition control function is realized by controlling the 2 relay switch output (DO) by sending instructions from the serial port.

Product Features

 Support for modbus RTU protocols;

 Support for all types of configuration software / PLC / touch screen;

 RS485 Acquisition Control IO;

 DC 8to28V power supply;

 4 analog input AI(0 to 20mA/4 to 20mA);

 2 switch output DO(relay);

 Switch output(DO)supports level mode, pulse mode;

 Input acquisition port isolation protection;

 Communication Baud Rate 1200to115200(default 9600),supports custom settings;

 Support for 1to247 substations,5-bit dial switch can be set 1to31 address code, greater than 31 can be set by software.

 Supports installation of guide and positioning hole.

Specifications

Actual product photos

Product Data Book：

For more product information, please download the PDF
