Product Descriptions

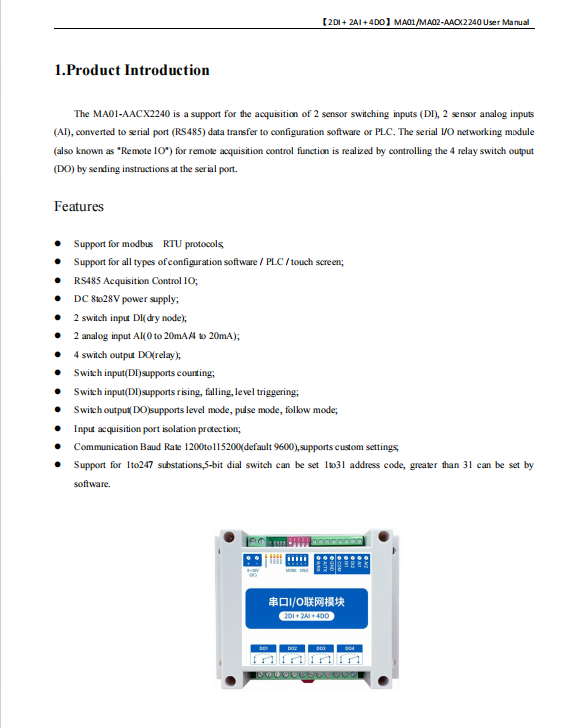

The MA01-AACX2240 is a support for the acquisition of 2 sensor switching inputs (Dl), 2 sensor analog inputs(Al), converted to serial port (RS485) data transfer to configuration software or PLC. The serial 1/0 networking module(also known as "Remote lO") for remote acquisition control function is realized by controlling the 4 relay switch output(DO) by sending instructions at the serial port.

Product Features

Support for modbus RTU protocols.

Support for all types of configuration software / PLC / touch screen;

RS485 Acquisition Control IO:

DC 8to28V power supply;

2 switch input DI(dry node);

2 analog input Al(0 to 20mA/4 to 20mA):

4 switch output DO(relay);,

Switch input(Dl)supports counting:

Switch input(Dl)supports rising, falling, level triggering;

Switch output(DO)supports level mode, pulse mode, follow mode.

Input acquisition port isolation protection,

Communication Baud Rate 1200to115200(default 9600),supports custom settings,

Support for lto247 substations,5-bit dial switch can be set 1to3l address code, greater than 31 can be set by sofware.

Specifications

Actual product photos

Product Data Book：

For more product information, please download the PDF
