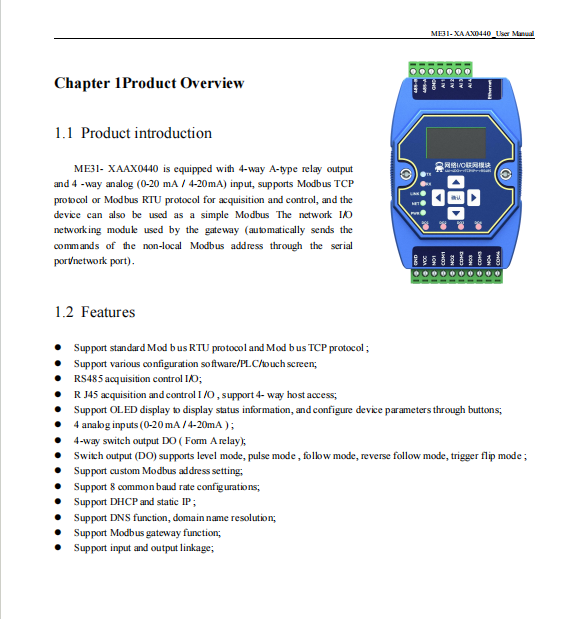

Product Descriptions

ME31- XAAX0440 is equipped with 4-way A-type relay output and 4 -way analog (0-20 mA / 4-20mA) input, supports Modbus TCP protocol or Modbus RTU protocol for acquisition and control, and the device can also be used as a simple Modbus The network I/O networking module used by the gateway (automatically sends the commands of the non-local Modbus address through the serial port/network port) .

Product Features

 Support standard Mod b us RTU protocol and Mod b us TCP protocol ;

 Support various configuration software/PLC/touch screen;

 RS485 acquisition control I/O;

 R J45 acquisition and control I /O , support 4- way host access;

 Support OLED display to display status information, and configure device parameters through buttons;

 4 analog inputs (0-20 mA / 4-20mA ) ;

 4-way switch output DO ( Form A relay);

 Switch output (DO) supports level mode, pulse mode , follow mode, reverse follow mode, trigger flip mode ;

 Support custom Modbus address setting;

 Support 8 common baud rate configurations;

 Support DHCP and static IP ;

 Support DNS function, domain name resolution;

 Support Modbus gateway function;

 Support input and output linkage;

Specifications

Actual product photos

Product Data Book：

For more product information, please download the PDF
