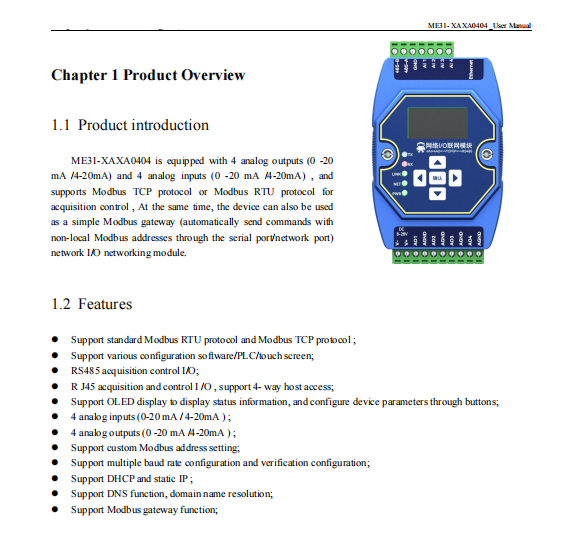

Product Descriptions

ME31-XAXA0404 is equipped with 4 analog outputs (0 -20 mA /4-20mA) and 4 analog inputs (0 -20 mA /4-20mA) , and supports Modbus TCP protocol or Modbus RTU protocol for acquisition control , At the same time, the device can also be used as a simple Modbus gateway (automatically send commands with non-local Modbus addresses through the serial port/network port) network I/O networking module.

Product Features

 Support standard Modbus RTU protocol and Modbus TCP protocol ;

 Support various configuration software/PLC/touch screen;

 RS485 acquisition control I/O;

 R J45 acquisition and control I /O , support 4- way host access;

 Support OLED display to display status information, and configure device parameters through buttons;

 4 analog inputs (0-20 mA / 4-20mA ) ;

 4 analog outputs (0 -20 mA /4-20mA ) ;

 Support custom Modbus address setting;

 Support multiple baud rate configuration and verification configuration;

 Support DHCP and static IP ;

 Support DNS function, domain name resolution;

  Support Modbus gateway function;

Specifications

Actual product photos

Product Data Book：

For more product information, please download the PDF
