Product Descriptions

E870-D1 is a 4G device developed based on our company's self-developed communication protocol "Billion Cloud Device Communication Protocol". It can send instructions to the device through the server to achieve control or collection functions. The device is open to 4 channels of DI, 2 channels of AI (4-20mA) input, and 2 channels of D0 output. It supports TCP client protocol and MQTT access, and supports heartbeat packet and registration packet settings; At the same time, the product supports multiple configuration methods and web platforms; At the same time, it also supports the Yibaite cloud mode and cloud networking mode; Adopting industrial grade design standards to ensure high reliability of equipment.

Product Features

Supports the open protocol of the Yibaite Cloud Device Communication Protocol

Support remote management of Yibaite Cloud Platform

Supports 20 data points ModBus instruction edge collection control function: supports multiple reporting methods such as change reporting and cycle reporting

Supports uplink and downlink edge computing

Support device cloud networking and cloud linkage

Support Alibaba Cloud IoT model access

Supports 4G full network connectivity, with wide coverage and high stability;

Supports 4-way independent Socket transparent transmission or cloud protocol

Supports TCPC UDPC

Support registration packages and heartbeat packages;

Support version 3.1 standard MOTT server;

Support various configuration methods such as the Yibaite cloud platform, upper computer, and network;

Support network upgrades;

Support APN access;

Two analog inputs (4-20mA);

4-way switch input DI (dry node);

2-way switch output DO (A-type relay)

Switch output (DO) supports level mode and follow mode;

Specifications

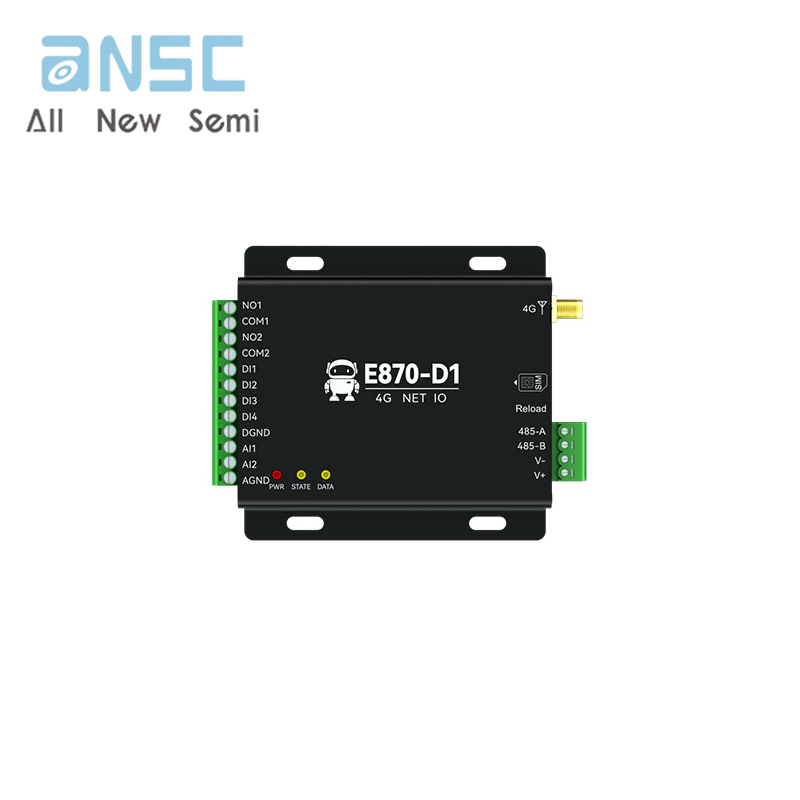

Actual product photos
