Product Descriptions

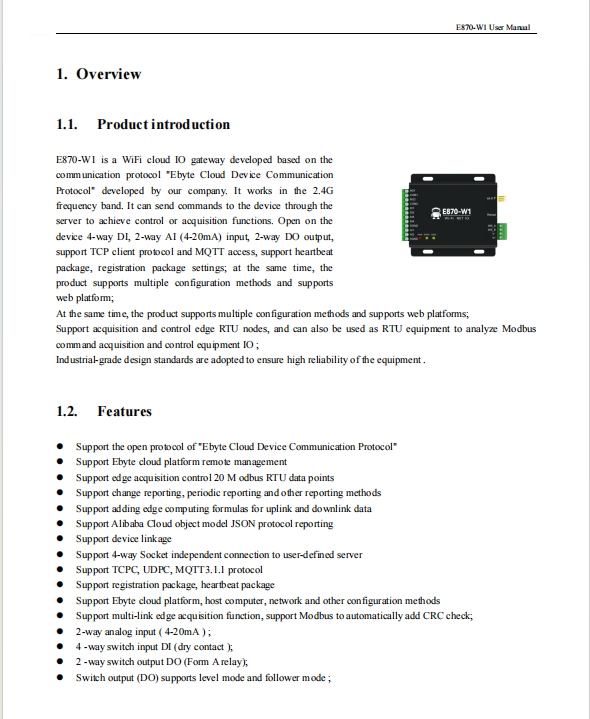

E870-W1 is a WiFi cloud IO gateway developed based on the communication protocol "Ebyte Cloud Device Communication Protocol" developed by our company. It works in the 2.4G frequency band. It can send commands to the device through the server to achieve control or acquisition functions. Open on the device 4-way DI, 2-way AI (4-20mA) input, 2-way DO output, support TCP client protocol and MQTT access, support heartbeat package, registration package settings; at the same time, the product supports multiple configuration methods and supports web platform;
At the same time, the product supports multiple configuration methods and supports web platforms;
Support acquisition and control edge RTU nodes, and can also be used as RTU equipment to analyze Modbus command acquisition and control equipment IO ;
Industrial-grade design standards are adopted to ensure high reliability of the equipment .
Product Features
Support the open protocol of "Ebyte Cloud Device Communication Protocol"
Support Ebyte cloud platform remote management
Support edge acquisition control 20 M odbus RTU data points
Support change reporting, periodic reporting and other reporting methods
Support adding edge computing formulas for uplink and downlink data
Support Alibaba Cloud object model JSON protocol reporting
Support device linkage
Support 4-way Socket independent connection to user-defined server
Support TCPC, UDPC, MQTT3.1.1 protocol
Support registration package, heartbeat package
Support Ebyte cloud platform, host computer, network and other configuration methods
Support multi-link edge acquisition function, support Modbus to automatically add CRC check;
2-way analog input ( 4-20mA ) ;
4 -way switch input DI (dry contact );
2 -way switch output DO (Form A relay);
Switch output (DO) supports level mode and follower mode ;
Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E870-W1 | |
| Power supply | Operating Voltage | DC 8~28V |
| Power indicator | Red LED indication | |
| Serial port | Communication Interface | RS485 |
| baud rate | 9600bps (default) | |
| Protocol | 《Ebyte Cloud Device Communication Protocol》 | |
| DI input | Number of DI channels | 4 way |
| input type | default stem node | |
| Acquisition frequency | 1 kHz | |
| AI input | A way number | 2 way |
| Acquisition Features | single-ended input | |
| input type | 4-20mA | |
| AI resolution | 0.05 | |
| Acquisition frequency | 10Hz | |
| DO output | Number of DO channels | 2 way |
| DO output type | Form A relay | |
| DO output mode | Level output, pulse output | |
| Relay contact capacity | 30V/7A | |
| other | product weight | 140±5g |
| Working temperature and humidity | -40 ~ +85℃, 5%~95%RH (no condensation) | |
| installation method | rail installation |
Actual product photos

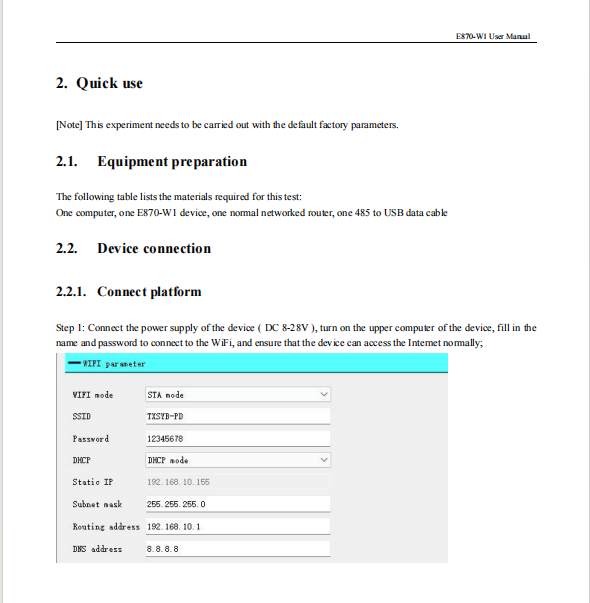

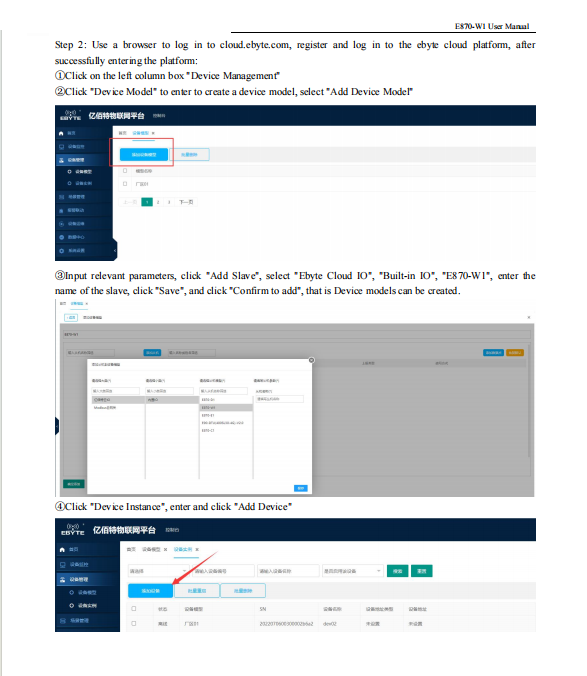

Product Data Book：
For more product information, please download the PDF
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
We also provide ：
