Product Descriptions

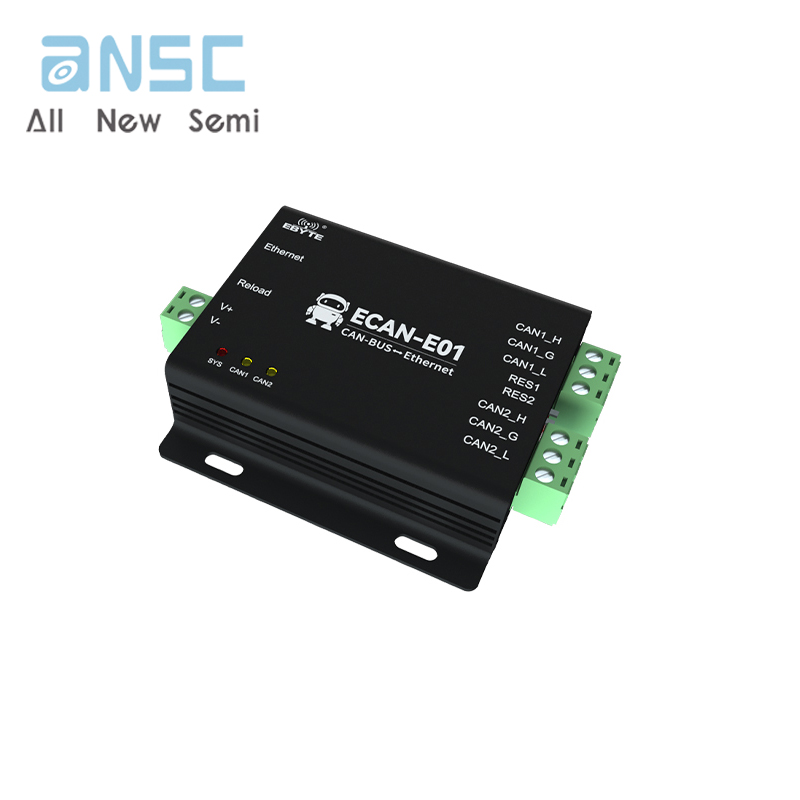

ECAN-E01 is a high-performance industrial-grade Ethernet and CAN-bus data conversion device developed by Ebyte. It integrates 2 CAN-bus interfaces, 1 EtherNet interface, supports TCP/UDP protocol, and can easily Complete the intercommunication between CAN-bus network and Ethernet network.
ECAN-E01 has a built-in 120 ohm resistor, which can be enabled by dialing a code, it supports working in the temperature range of -40°C to 85°C. It has one 10M Ethernet interface, CAN interface with high protection and increased isolation; the maximum baud rate of 2 CAN ports communication is 1Mbps, with TCP Server, TCP Client. UDP and other working modes, and software configuration parameters can be configured through the host computer.
Specifications
Attribute | Attribute value |
ANSM-Part# | ANSM-ECAN-E01 |
Voltage | 8V~28VDC, more than 28V may burn, recommend 12V or 24V power supply |
Network port specifications | Standard RJ45, support 10Mbps |
Network protocol | IP、 TCP/UDP、 |
Simple transparent transmission | TCP Server、TCP Client、UDP Server、UDP Client |
TCP Server connection | Supports up to 14 TCP connections |
How to get IP | Static IP, DHCP |
DNS | Support |
User configuration | Host computer configuration |
Operating temperature | -40 ~ +85℃, industrial grade |
Working humidity | 10% ~ 90%, relative humidity, non-condensing |
Size | See dimension chart |
Average weight | 120g |
Storage temperature | -40~+85℃, industrial grade |
Actual product photos
Product Data Book:
For more product information, please download the PDF
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
