ECAN-U01S CAN to USB converter, bus analyzer CAN-BUS, bidirectional 2-way transparent transmission high protection transceiver

ECAN-U01S

Model:ECAN-U01S

Manufacturer:EBYTE

Package:module

Detail

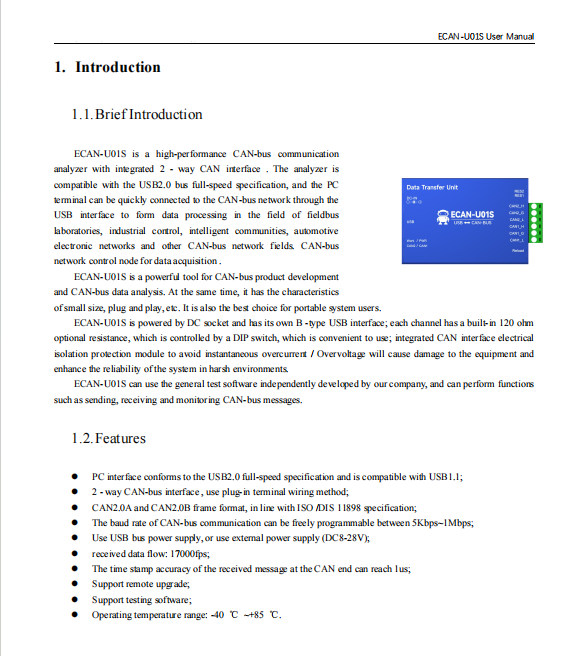

Product Descriptions


ECAN-U01S is a high-performance CAN-bus communicationanalyzer with integrated 2 - way CAN interface . The analyzer iscompatible with the USB2.0 bus full-speed specification, and the PCterminal can be quickly connected to the CAN-bus network through theUSB interface to fomm data processing in the field of fieldbuslaboratories, industrial control, intelligent communities, automotiveelectronic networks and other CAN-bus network fields. CAN-busnetwork control node for data acquisition.


ECAN-U01S is a powerful tool for CAN-bus product developmentand CAN-bus data analysis. At the same time, it has the characteristicsof small size, plug and play, etc. It is also the best choice for portable system users.


ECAN-U01S is powered by DC socket and has its own B -type USB interface, each channel has a built-in 120 ohm optional resistance, which is controlled by a DlP switch, which is convenient to use, integrated CAN interface electrical isolation protection module to avoid instantaneous overcurrent / Overvoltage will cause damage to the equipment and enhance the reliability of the system in harsh environments.


ECAN-U01S can use the general test software independently developed by our company, and can perform functions such as sending, receiving and monitoring CAN-bus messages.


Product Features


PC interface conforms to the USB2.0 full-speed specification and is compatible with USB1.1;

2 -way CAN-bus interface , use plug-in terminal wiring method;

CAN2.0A and CAN2.0B firame format, in line with ISO /DIS 11898 specification,

The baud rate ofCAN-bus communication can be freely programmable between 5Kbps~1Mbps.

Use USB bus power supply, or use external power supply (DC8-28V);

received data flow: 17000fps;

The time stamp accuracy ofthe received message at the CAN end can reach lus,

Support remote upgrade,

Support testing software,

Operating temperature range:-40 ℃~+85℃


Specifications


AttributeAttribute value
ANSM-Part#ANSM-ECAN-U01S
Size102*64*24mmSee installation dimensions for details
weight115gWeight tolerance 5g
Operating temperature-40°C~85°CMeet the needs of industrial use
Voltage8~28v DC12V or 24V recommended
Communication InterfaceUSBType B USB interface
VoltageFactory default 100K


Actual product photos


ECAN-U01S


Product Data Book:



For more product information, please download the PDF
