Product Descriptions

The ECAN-F0l is a single high-performance CAN-to-fiber optic communication device. The low transmission loss of optical fiber greatly increases the transmission distance and stability. The ECAN-F01 can be used in CAN networks with baud rates up to 500Kbps ECAN-F01 complies with CAN Specification 2.0A (11-bit CAN Identifier) and 2.0B (29-bit CAN Identifier). Transparent transmission is supported, making it suitable for a wide range of applications.The ECAN-F01 supports adaptive baud rates, which automatically adjust the baud rate to match the network up to 500Kbps when connected to a CAN network. At the same time. the device has electrical protection and built-in 12002 resistance, and the design of single-mode single fiber also brings convenience to installation.

Product Features

Single-mode single-fiber SC interface, easy to install;

1-way CAN-bus interface, using plug-in terminal wiring,

Support for CAN2.0A and CAN2.0B frame formats in accordance with iso/DIS 11898 specificatior

CAN-bus supports adaptive communication baud rates up to 500Kbps Maximum data conversion traffic:8000 frames per second

CAN-bus interface adopts TVS electrical protection.

Contains 120 ohm resistor, can be selected for terminal wiring.

Operating temperature range:-40°C~+85°C.

The interface adopts electrical isolation, isolation module insulation voltage: DC 3000V.

Three-proof protection.

Specifications

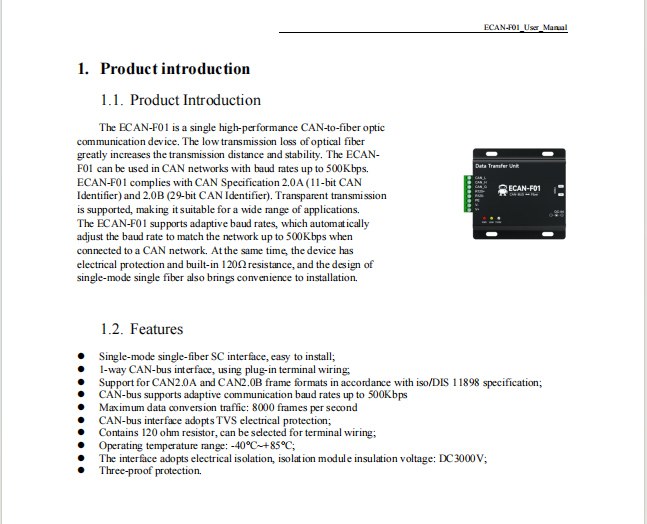

Actual product photos

Product Data Book：

For more product information, please download the PDF
