ECAN-W01S DUAL-CHANNEL CAN TO WIFI PROTOCOL Conversion gateway AP/STA dual-mode two-way transparent transmission

ECAN-W01S

Model:ECAN-W01S

Manufacturer:EBYTE

Package:module

Detail

Product Descriptions


ECAN-W01S is a high-performance industrial WIFI and CAN bus data conversion equipment developed by EBT. It integrates two CAN bus interfaces, one EtherNet interface and one WiFi interface internally, which can easily complete the interworking of CAN bus network and WiFi network.


ECAN-W01S has a built-in 120 ohm resistor, which can be enabled by dialing; Support the operation within the temperature range of - 40 ℃~85 ℃. It has a 10M Ethernet interface. Customers can use the network cable to connect the PC end and enter the configuration software to configure the device parameters; The device WiFi network has two modes: AP and STA, which can quickly establish or access the WiFi network; 2-channel CAN port communication supports fixed common CAN baud rate and user-defined CAN baud rate, with the highest baud rate of 1Mbps; At the same time, the device has multiple working modes such as TCP Server, TCP Client, UDP, etc.


Product Features


Integrated 2-way CAN bus interface, using plug-in terminal wiring mode;

Support CAN2.0A and CAN2.0B frame formats and conform to ISO/DIS 11898 specification;

CAN bus communication baud rate between 5Kbps and 1Mbps can be programmed arbitrarily;

Dual CAN transceiver supports dual server, and each channel supports up to 4 links;

Integrated 2.4G WiFi interface, conforming to IEEE802.11a/b/g standard;

Support WiFi AP/STA mode, and access up to 5 STA devices in AP mode;

Maximum transmission data flow: 8000 frames/second; Maximum received data flow: 14000 frames/second;

Support registration package and heartbeat package;

Support DHCP and DNS;

Support offline restart/timeout restart;

Support upper computer configuration;

Support online modification of baud rate;

Including 120 ohm resistance;

Built in watchdog;

Network interface upgrading function;

Working temperature range: - 40 ℃~+85 ℃.


Specifications


AttributeAttribute value
ANSM-Part#ANSM-ECAN-W01S
Supply voltage8V~28VDC, over 28V may burn out, 12V or 24V power supply is recommended
Mesh port specificationStandard RJ45, supporting 10Mbps
WiFi specificationsIEEE802.11a/b/g standard
Network ProtocolIP、TCP/UDP、WiFi
Simple transparent transmission modeTCP Server、TCP Client、UDP Server、UDPClient
TCP Server ConnectionA maximum of four TCP connections are supported in a single channe
IP acquisitionmethod Static IP, DHCP
Domain name resolutionsupport
User ConfigurationUpper computer configuration
working temperature-40~+85 °C, industrial grade
Operating humidity10%~90%, relative humidity, non condensing
SizeSee dimension drawing
Average weight120g
Storage temperature-40~+85 °C, industrial grade

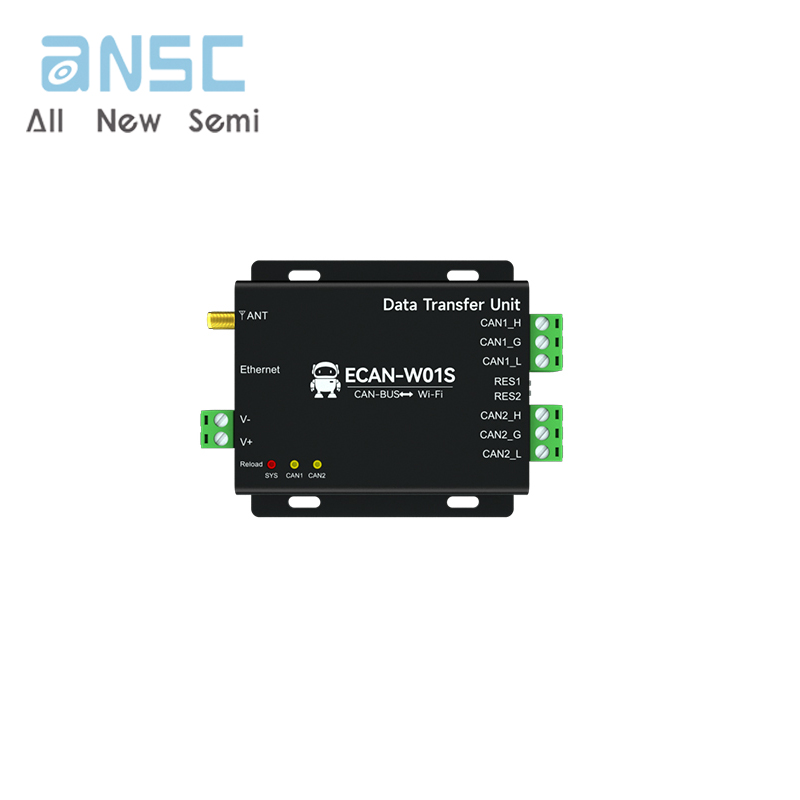

Actual product photos


ECAN-W01S


Product Data Book:

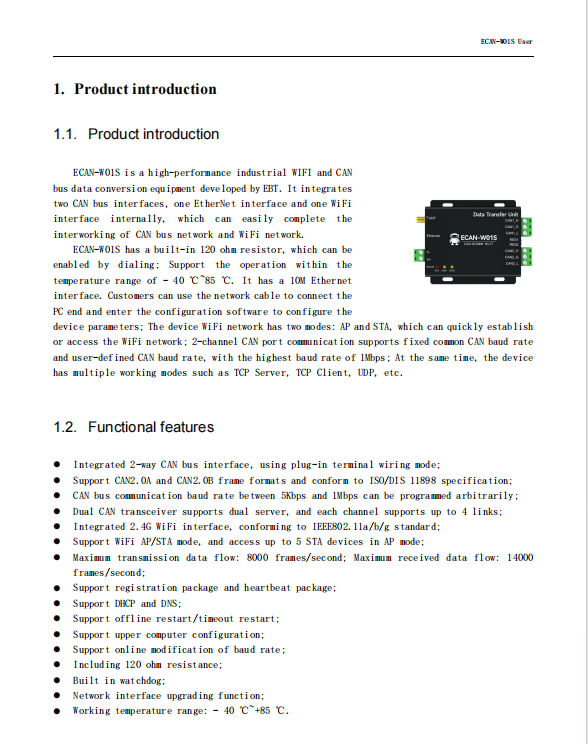

搜狗高速浏览器截图20240527125317

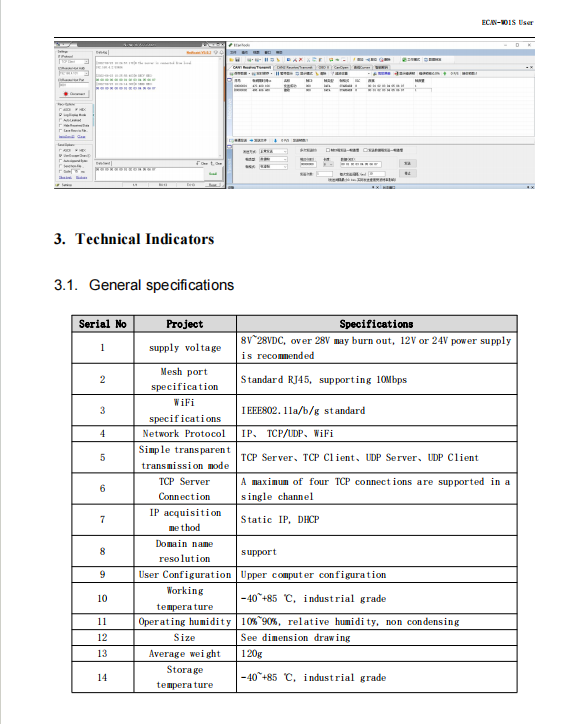

搜狗高速浏览器截图20240527125322

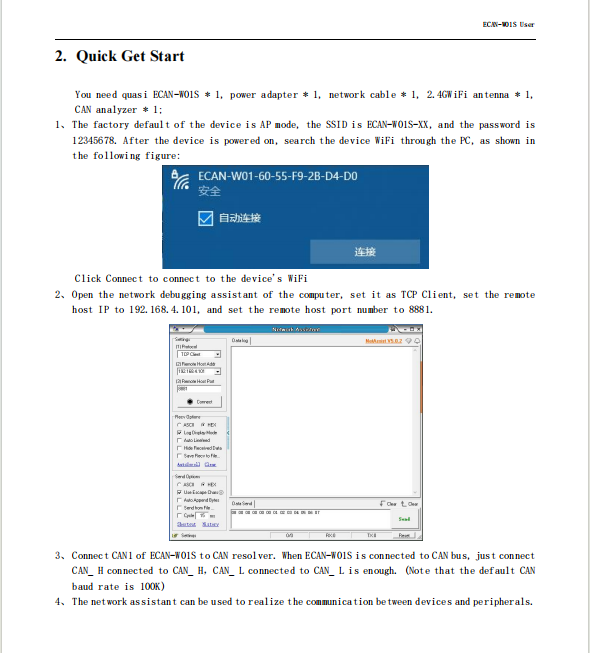

搜狗高速浏览器截图20240527125327


For more product information, please download the PDF
