Original stock sale ECAN-F01S CAN-BUS to optical cat bidirectional transparent transmission high protection port

ECAN-F01S

Model:ECAN-F01S

Manufacturer:EBYTE

Package:module

Detail

Product Descriptions


The ECAN-F01S is a single high-performance CAN-to-fiber optic communication device. The low transmission loss of optical fiber greatly increases the transmission distance and stability. The ECAN-F01S can be used in CAN networks with baud rates up to 500Kbps.ECAN-F01S complies with CAN Specification 2.0A(11-bit CAN Identifier) and 2.0B (29-bit CAN Identifier)Transparent transmission is supported, making it suitable for a wide range of applications. The ECAN-F01S supports adaptive baud rates, which automatically adjust the baud rate to match the network up to 500Kbps when connected to a CAN network. At the same time, the device has electrical protection and built-in 1200 resistance, and the design of single-mode single fiber also brings convenience to installation.


Product Features


Single-mode single-fiber SC interface, easy to install.

1-way CAN-bus interface, using plug-in terminal wiring,

Support for CAN2.0A and CAN2.0B frame formats in accordance with iso/DIS 11898 specif

CAN-bus supports adaptive communication baud rates up to 500Kbps

Maximum data conversion traffic: 8000 fames per second

CAN-bus interface adopts TVS electrical protection,

Contains 120 ohm resistor, can be selected for terminal wiring,

Operating temperature range:-40°C~+85°C:

Three-proof protection.


Specifications


AttributeAttribute value
ANSM-Part#ANSM-ECAN-F01S
Supply voltage8V ~ 28VDC, more than 28V may burn out, 12V or 24V power supply is recommended
Interface specificationsCAN: 3.81mm Phoenix terminal blocks Fiber optic: SC interface, single mode single fiber
Simple way of passing throughThrough transmission
Operating temperature-40 ~ +85°C, industrial grade
Operating humidity10% ~ 90% , relative humidity, non-condensing
Size84*82*24mm
Average weight125g±5g
Storage temperature-40~+125°C, industrial grade


Actual product photos


ECAN-F01S

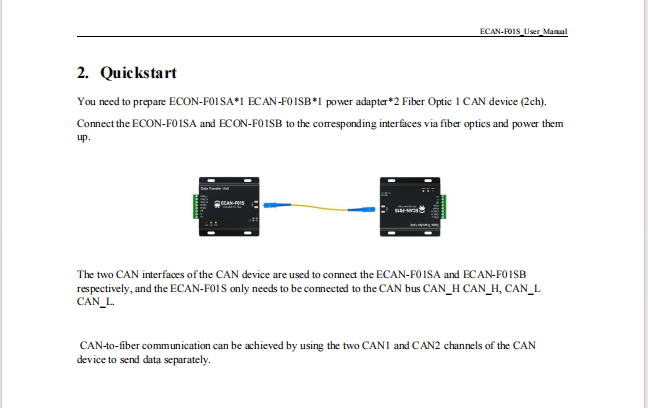

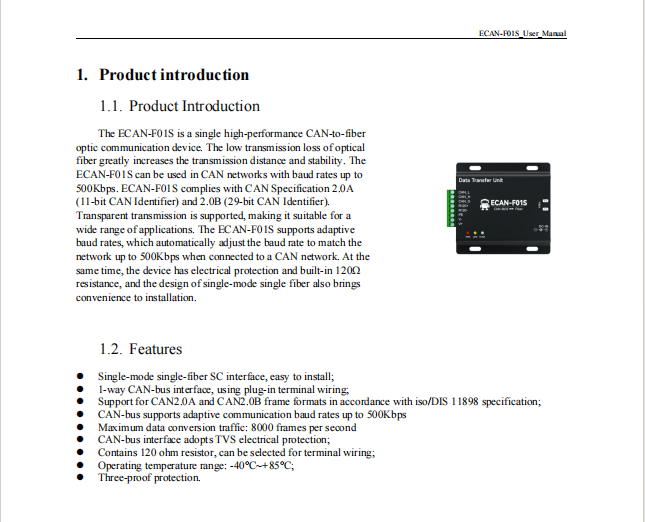

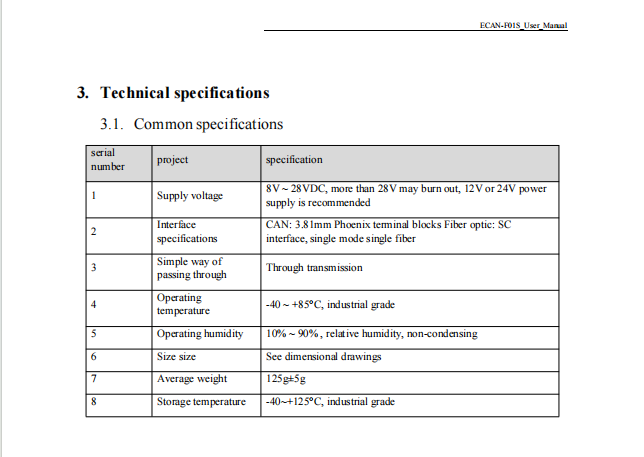

Product Data Book:


搜狗高速浏览器截图20240527130211

搜狗高速浏览器截图20240527130215

搜狗高速浏览器截图20240527130218


For more product information, please download the PDF
