E108-GN02 GPS Satellite Positioning Navigation Module I2C GPIO GPS Wireless Module for Car Navigation Smart Wear Drone UAV

E108-GN02

Model:E108-GN02

Manufacturer:EBYTE

Package:module

Detail

Product Descriptions


E108-GN series is a high-performance, high-integration, low-power, low-cost multi-mode satellite positioning and navigation module, for BDS/GPS/GLONASS, small size, low power consumption, can be used for car navigation, smart wear, In the application of GNSS positioning such as drones, it also provides software and hardware interfaces compatible with other module manufacturers, which greatly reduces the user's development cycle.


The module adopts the integrated design of RF baseband, integrates DC/DC, LDO, RF front-end, low-power application processor, RAM, Flash storage, RTC and power management, etc. It supports crystal oscillator or external pin clock input, which can be input through a coin cell battery or farad capacitor powers the RTC and backup RAM to reduce the time to first fix. It also supports a variety of ways to connect with other peripherals, and supports UART and GPIO interfaces. If you need I2C and SPI interfaces, please contact customer service for customization.


Product Features


Support BDS/GPS/GLONASS multi-system joint positioning and single-system independent positioning;

D-GNSS differential positioning, A-GNSS assisted positioning, ephemeris prediction, DR integrated navigation application, the fastest data update rate 10Hz;

32-bit application processor, the highest frequency is 133MHz, supports dynamic frequency adjustment;

Support PPS output;

Built-in reset controller;

UART, GPIO interface;

RTC: Support 32.768KHz±20ppm crystal oscillator, 1.1VRTC clock output, support external signal wake-up;

Output format: support NMEA0183V4.1 and previous versions, the maximum fixed update frequency can reach 10Hz;

High sensitivity: capture cold start -149dBm, hot start -162dBm, tracking -166dBm;

The software and hardware are compatible with those of other manufacturers, which greatly reduces the user's development cycle;


Product Applications


Vehicle positioning and navigation equipment;

Wearable devices, such as GPS trackers, etc.;

UAV positioning, industrial computer, etc.;

Industry equipment that needs GNSS positioning or navigation;


Specifications


AttributeAttribute valueNotes
ANSM-Part#ANSM-E108-GN02
Communication protocolSupport NMEA0183 v4.1 and earlier versions, the maximum fixed update frequency can reach 10Hz
Positioning systemSupport BDS/GPS/GLONASS
Peripheral InterfaceSupport UART (TXD/RXD) or GPIO
Low power consumptionSupport (Stop、Sleep)
Ultra low power consumptionSupport
Periodic low power consumptionSupport
Direct low power consumptionSupport
Parameter setting softwareSupport
CertificationPending
Size10.1*9.7*2.4mm (L*W*H)
PackageHalf hole (SMT surface mount)
Power supplyVCC2.8V—4.3V(3.3V)
Serial portCommunication level2.8V
Baud (bps)9600~921600, default 9600
Data bit8bit
Stop bit1
Check bitNone

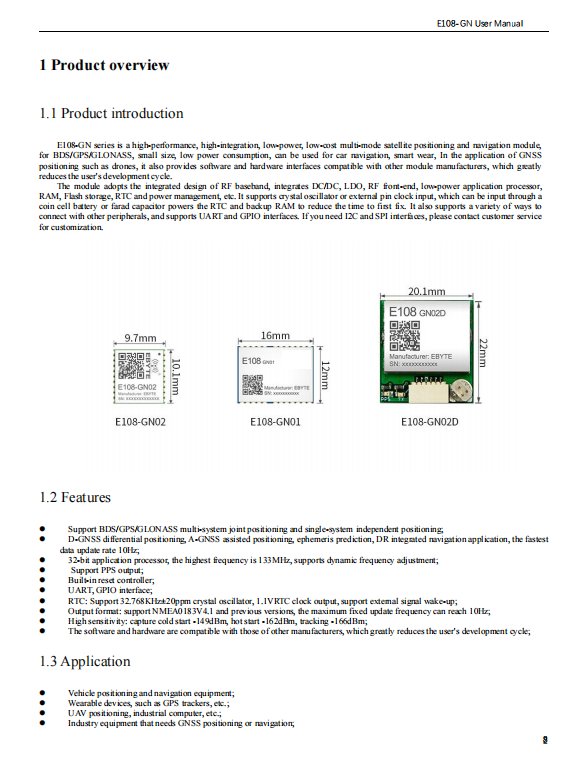

Actual product photos


E108-GN02


Product Data Book:


搜狗高速浏览器截图20240527131428

搜狗高速浏览器截图20240527131431

搜狗高速浏览器截图20240527131435

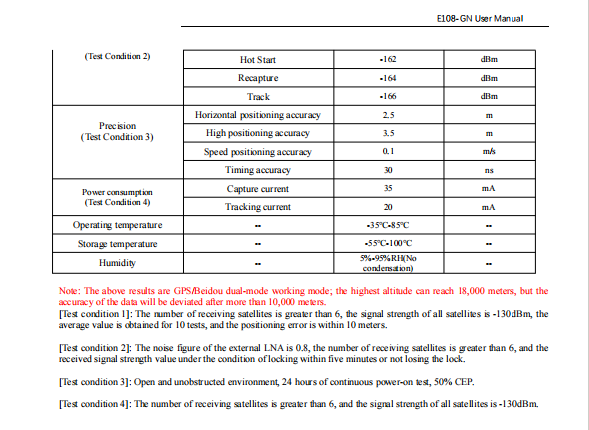

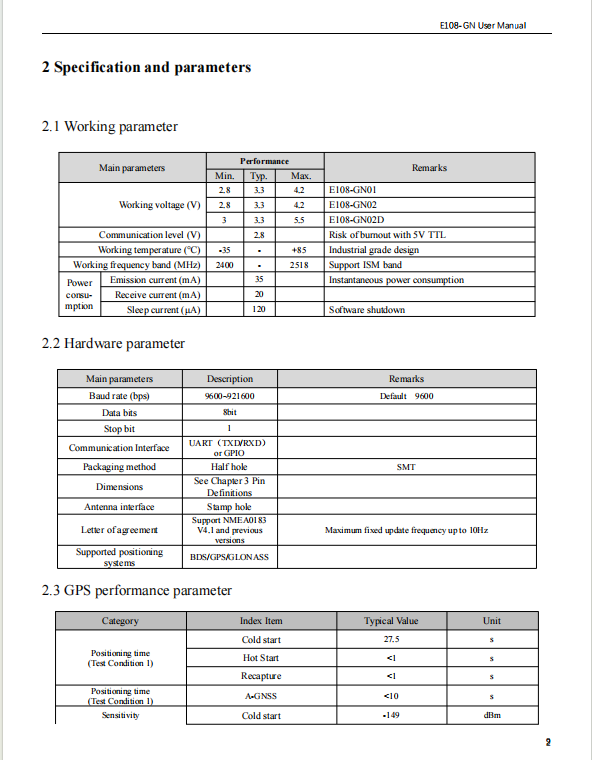

For more product information, please download the PDF
